Description

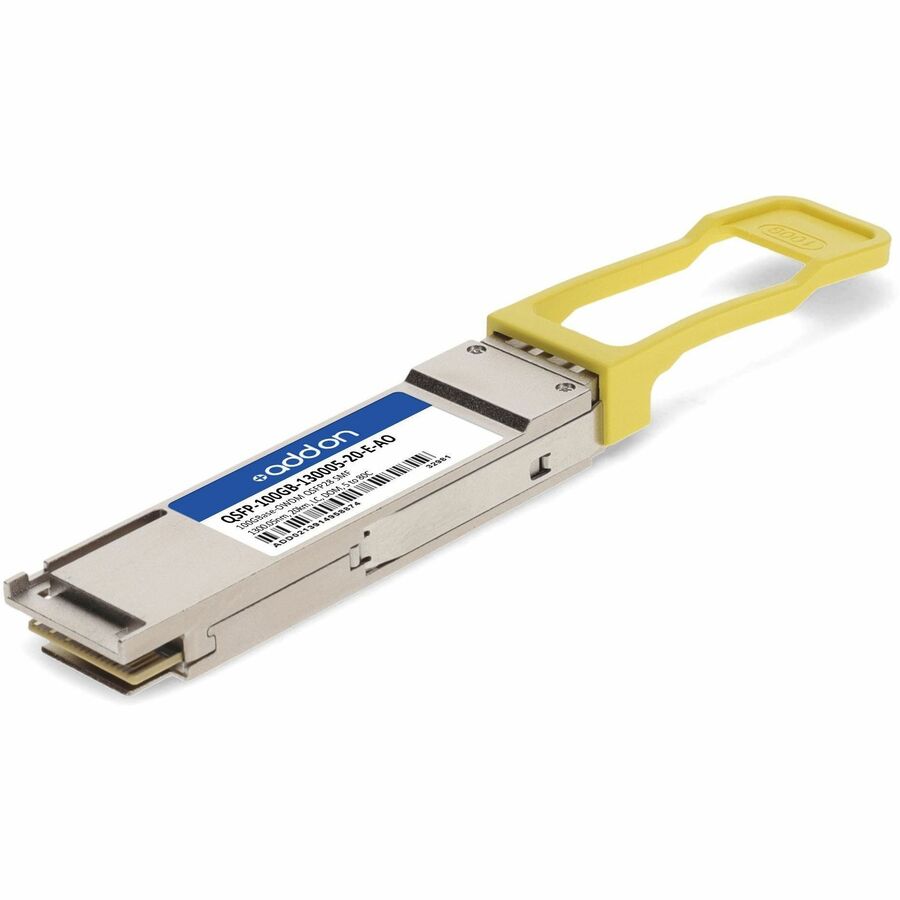

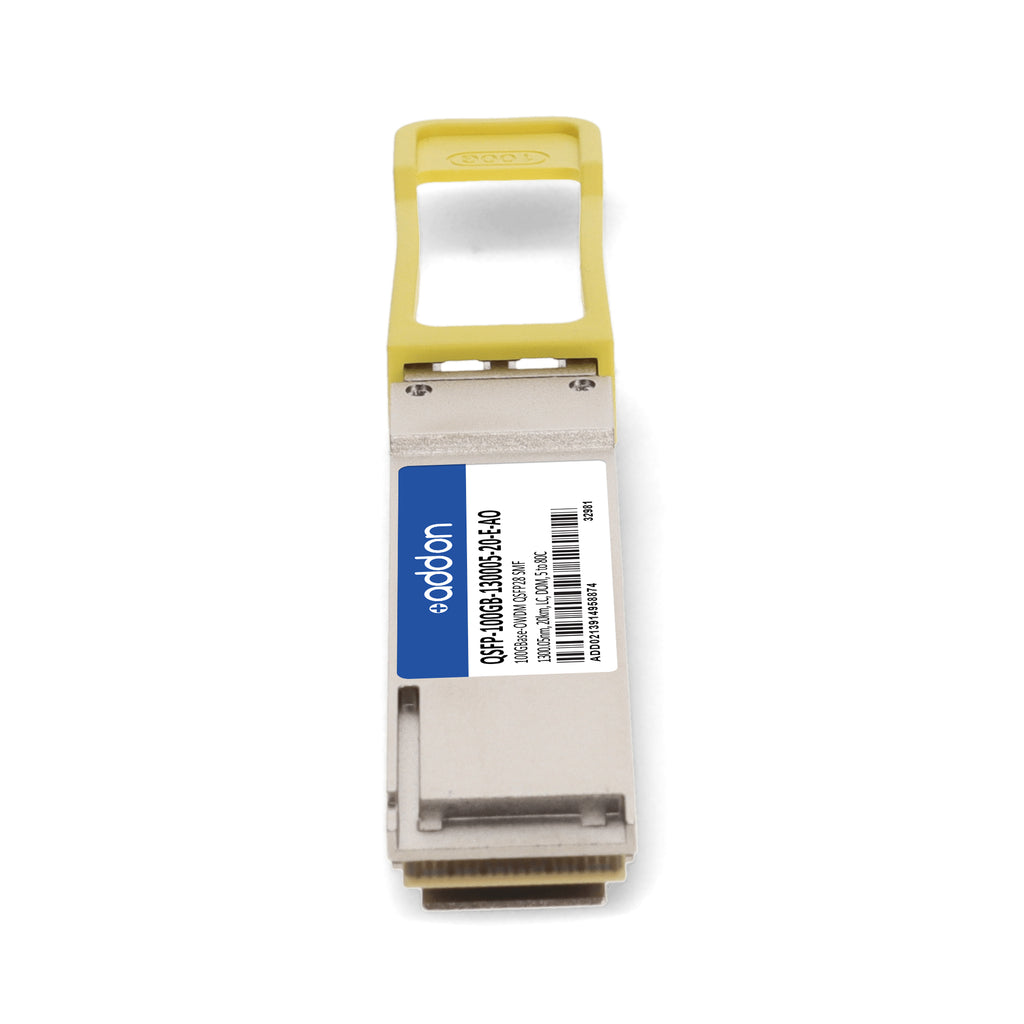

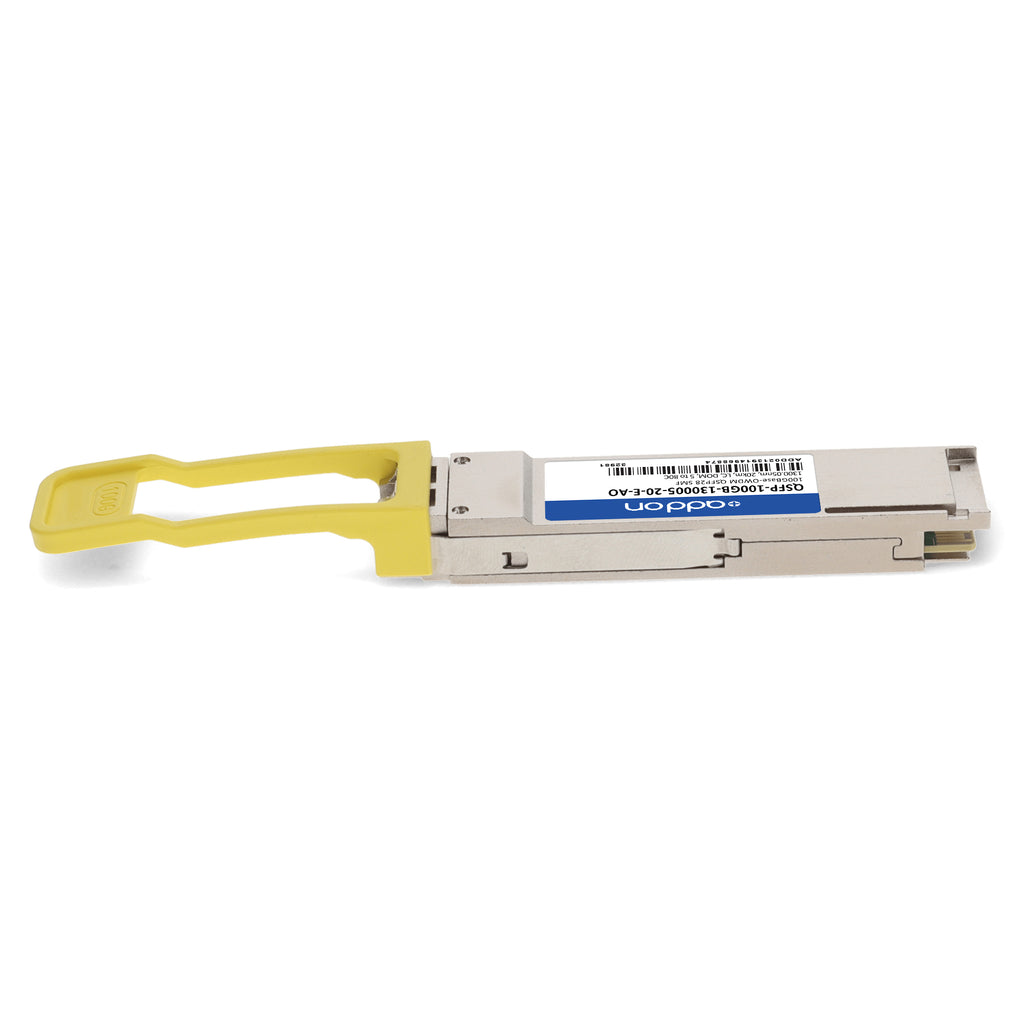

The AddOn QSFP-100GB-130005-20-E Compatible 100GBase-OWDM QSFP28 Transceiver delivers high-performance 100Gbps connectivity over single-mode fiber (SMF) up to 20km using a 1300.05nm wavelength. Built to MSA standards and aligned with IEEE 802.3bs and 100G Lambda MSA, this transceiver supports PAM4 modulation and features a high-sensitivity APD receiver for reliable signal reception. Designed with an I2C management interface and Digital Optical Monitoring (DOM) support, it provides real-time monitoring of critical parameters to ensure optimal network performance. Hot-pluggable and TAA compliant, this module integrates seamlessly into access and enterprise network environments while offering exceptional reliability backed by AddOn’s limited lifetime warranty.
| Parameter | Specification |
|---|---|
| Form Factor | QSFP28 |
| Data Rate | 106.25Gbps (PAM4) |
| Wavelength | 1300.05nm |
| Distance | Up to 20km |

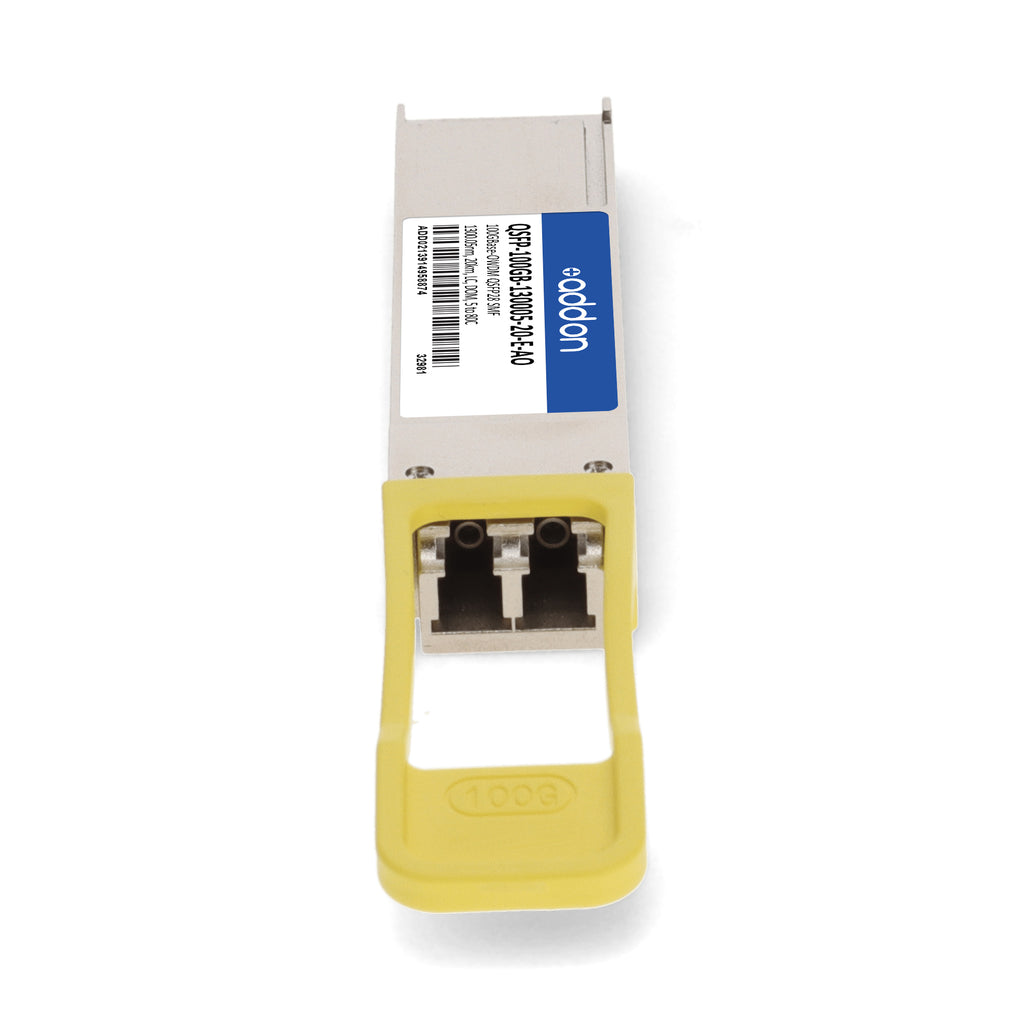

| Connector | Duplex LC |
| Fiber Type | Single-Mode Fiber (SMF) |
| Modulation | PAM4 |
| Optical Channels | OWDM, 8 Wavelengths |
| Power Supply | +3.3V |
| Power Consumption | 4.4W (typical at 25°C) |
| Receiver Type | High-Sensitivity APD |
| Operating Temperature | -5°C to +80°C |
| Digital Diagnostics | DOM Supported |
| Compliance | QSFP28 MSA, IEEE 802.3bs, 100G Lambda MSA, RoHS, TAA |
| Applications | 100G Ethernet, Access, Enterprise |
| Launch Power (Average) | 0 to 3.4 dBm |
| Extinction Ratio | ≥ 5.0 dB |
| Receiver Sensitivity (OMAouter) | ≤ -11.6 dBm |
| Side-Mode Suppression Ratio | ≥ 30 dB |
| Optical Return Loss Tolerance | 15.6 dB |
| Connector Type | Duplex LC |
| Warranty | Limited Lifetime Warranty |
