Description

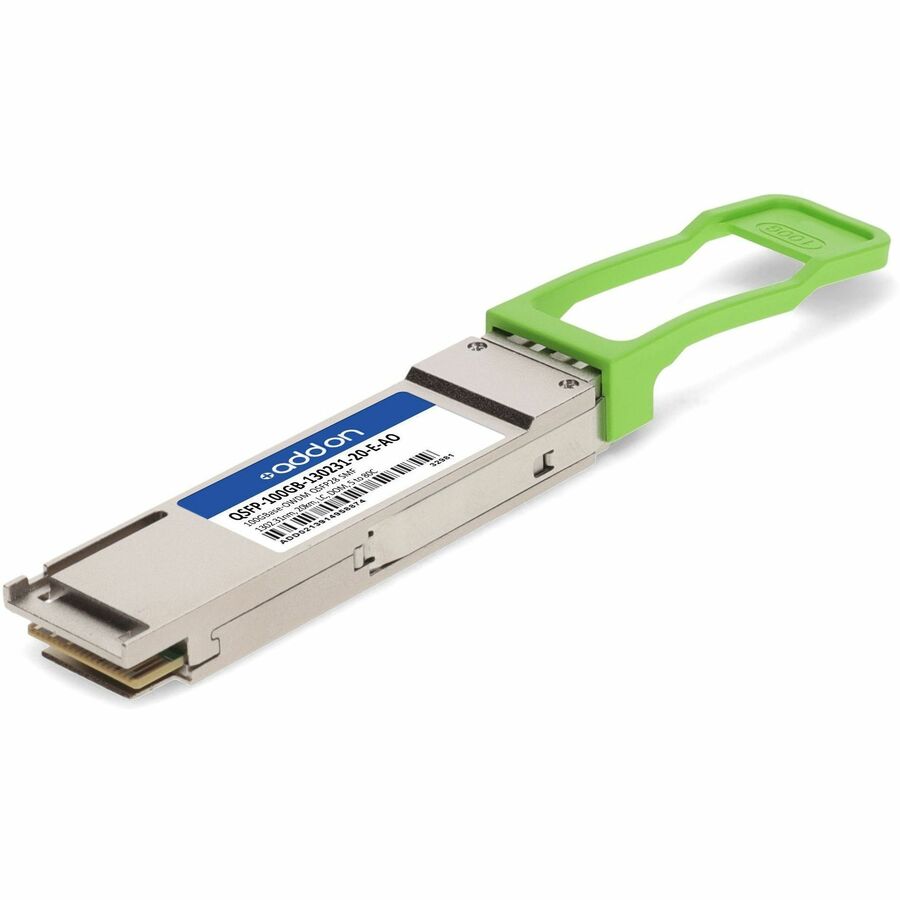

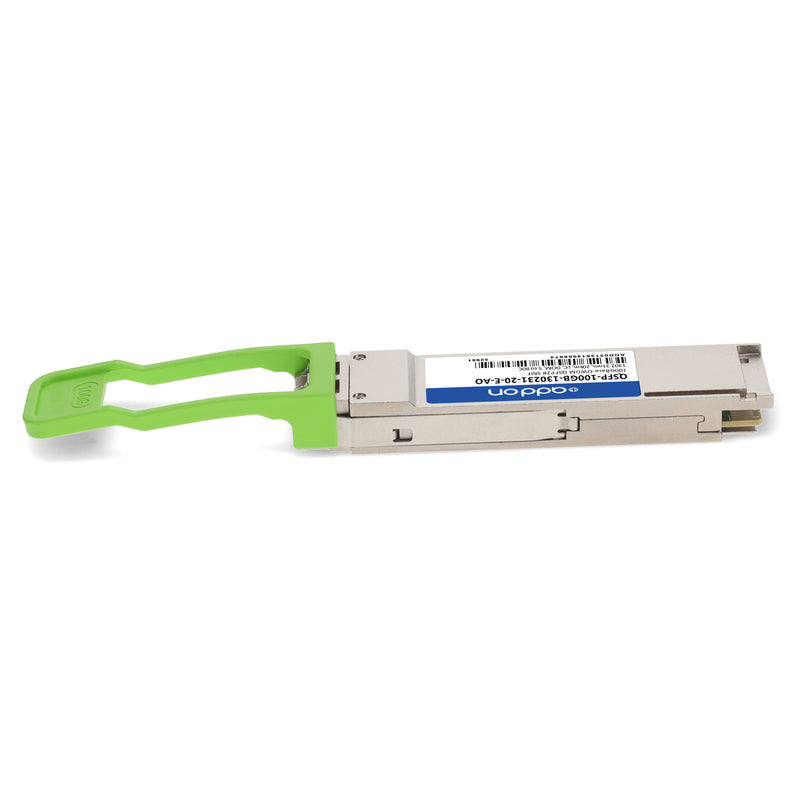

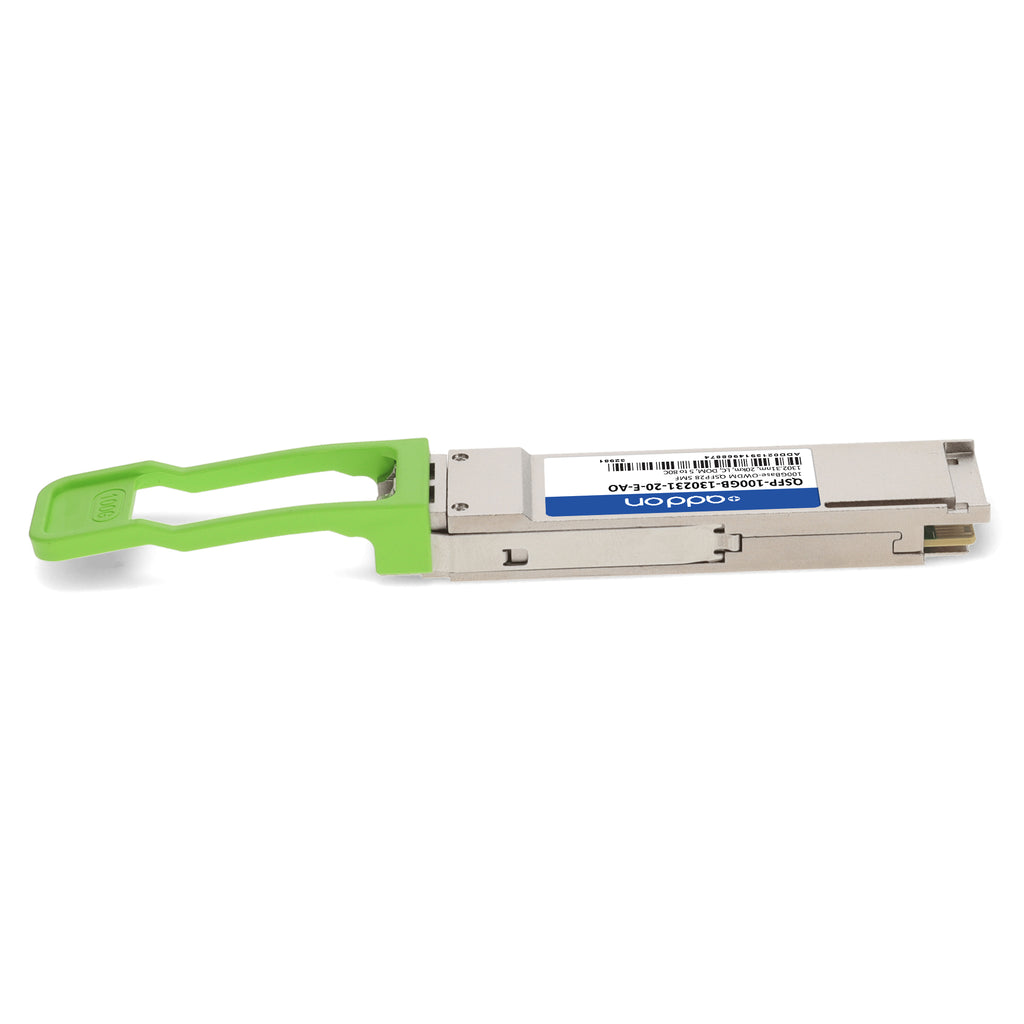

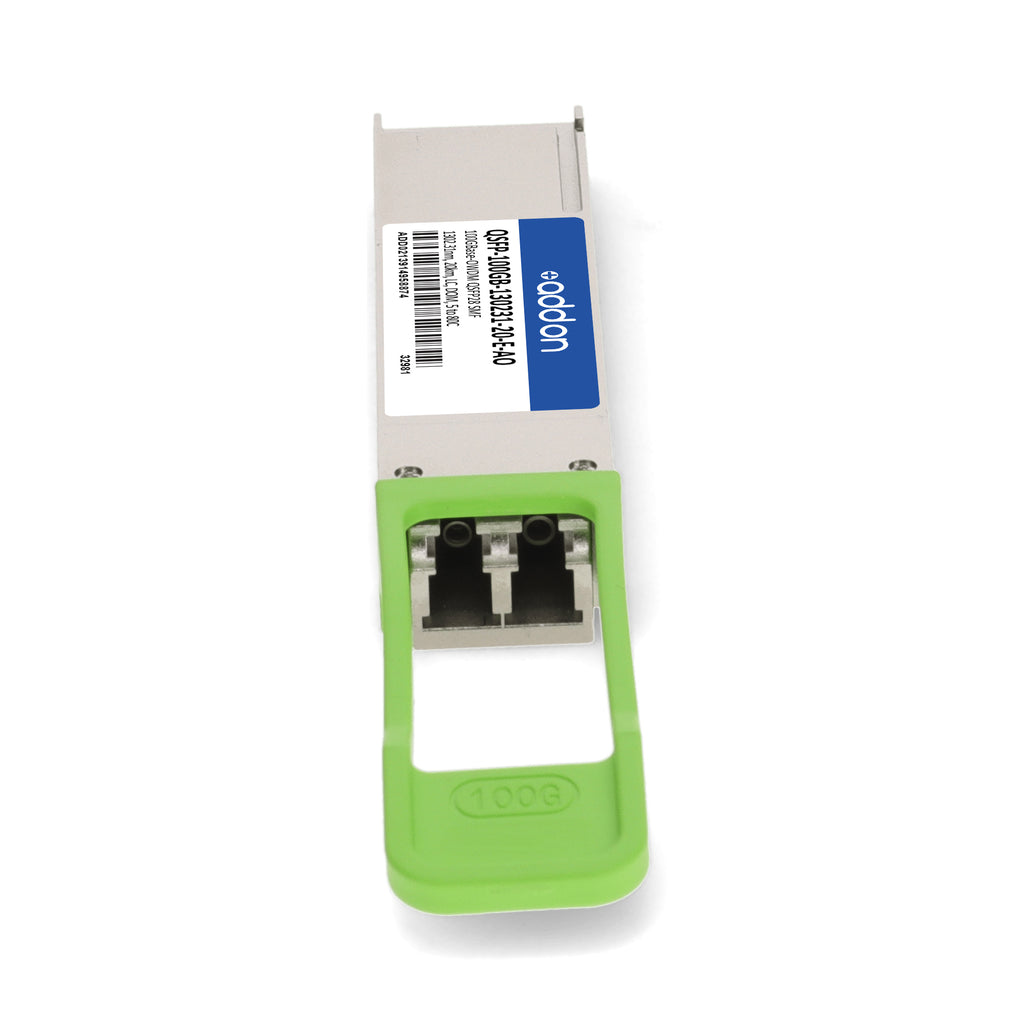

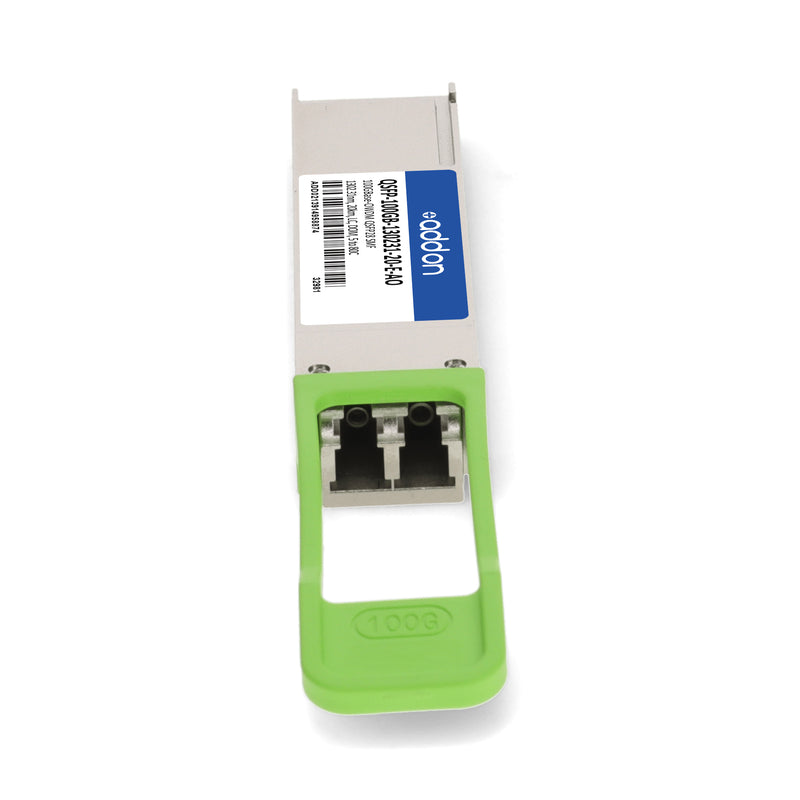

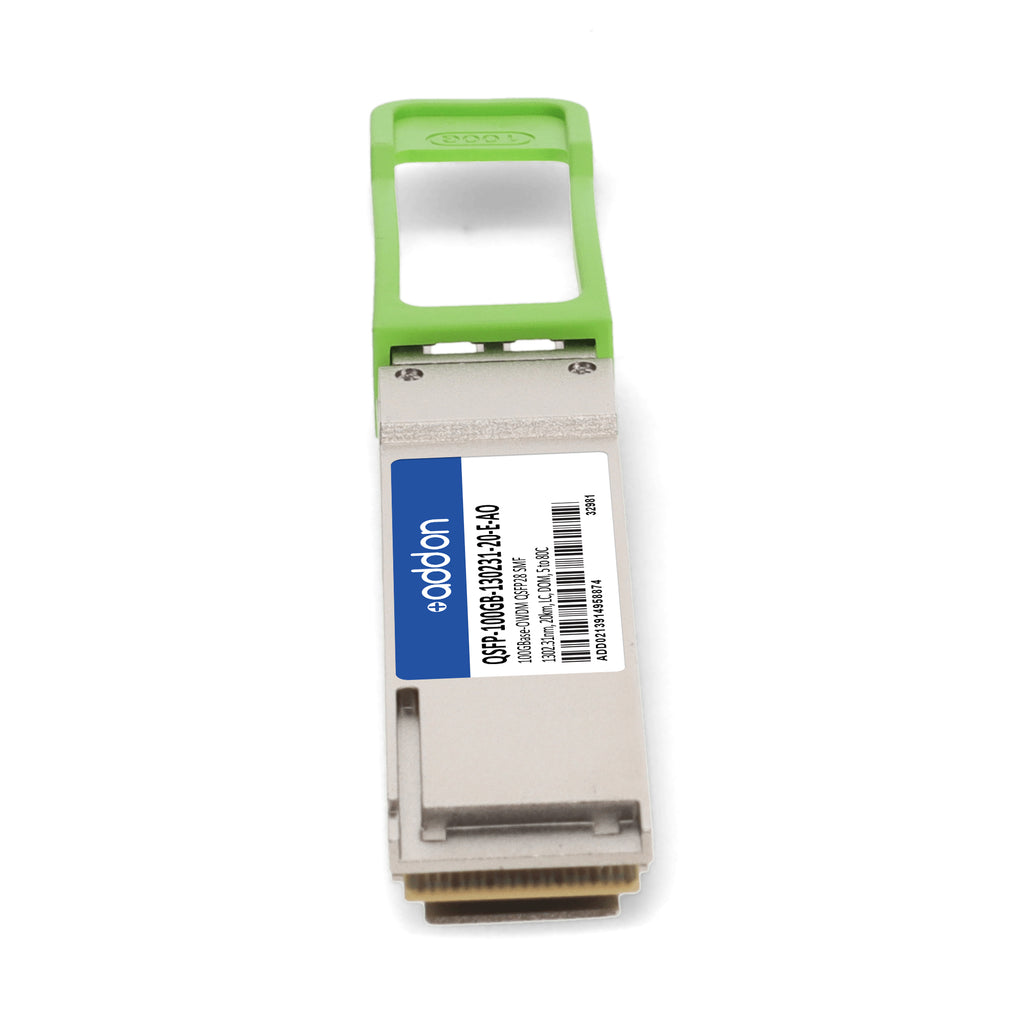

The AddOn QSFP-100GB-130231-20-E-AO is a high-performance 100GBase-OWDM optical transceiver designed for reliable, high-speed data transmission in access and enterprise networks. Supporting data rates up to 106.25Gb/s (PAM4) and compliant with QSFP28 MSA and IEEE 802.3bs standards, this hot-pluggable module operates over single-mode fiber (SMF) using a wavelength of 1302.31nm and delivers up to 20km reach via duplex LC connectors. It features a high-sensitivity APD receiver, Digital Optical Monitoring (DOM) for real-time diagnostics, and is fully TAA compliant, making it ideal for government and enterprise applications. Each unit is uniquely serialized and rigorously tested to ensure seamless network integration and dependable performance.
| Parameter | Specification |
|---|---|
| Form Factor | QSFP28 |
| Data Rate | 106.25 Gb/s (PAM4) |
| Application | 100GBase Ethernet |
| Wavelength | 1302.31 nm (OWDM Channel OW302) |
| Optical Reach | Up to 20 km over SMF |
| Connector Type | Duplex LC |
| Modulation | PAM4 |
| Compliance | QSFP28 MSA, IEEE 802.3bs, 100G Lambda MSA |
| Receiver Type | High Sensitivity APD |
| Digital Diagnostics | DOM (Digital Optical Monitoring) |
| Operating Temperature | -5°C to +80°C |
| Power Supply | +3.3 V |
| Power Consumption | 4.4 W (typical at 25°C) |
| Optical Launch Power | 0 to +3.4 dBm |
| Receiver Sensitivity (OMAouter) | ≤ -11.6 dBm |
| Extinction Ratio | ≥ 5.0 dB |
| Side-Mode Suppression Ratio (SMSR) | ≥ 30 dB |
| Reflectance | ≤ -26 dB |
| TAA Compliance | Yes |
| Hot-Pluggable | Yes |
| Interface | I2C Management Interface |
