Description

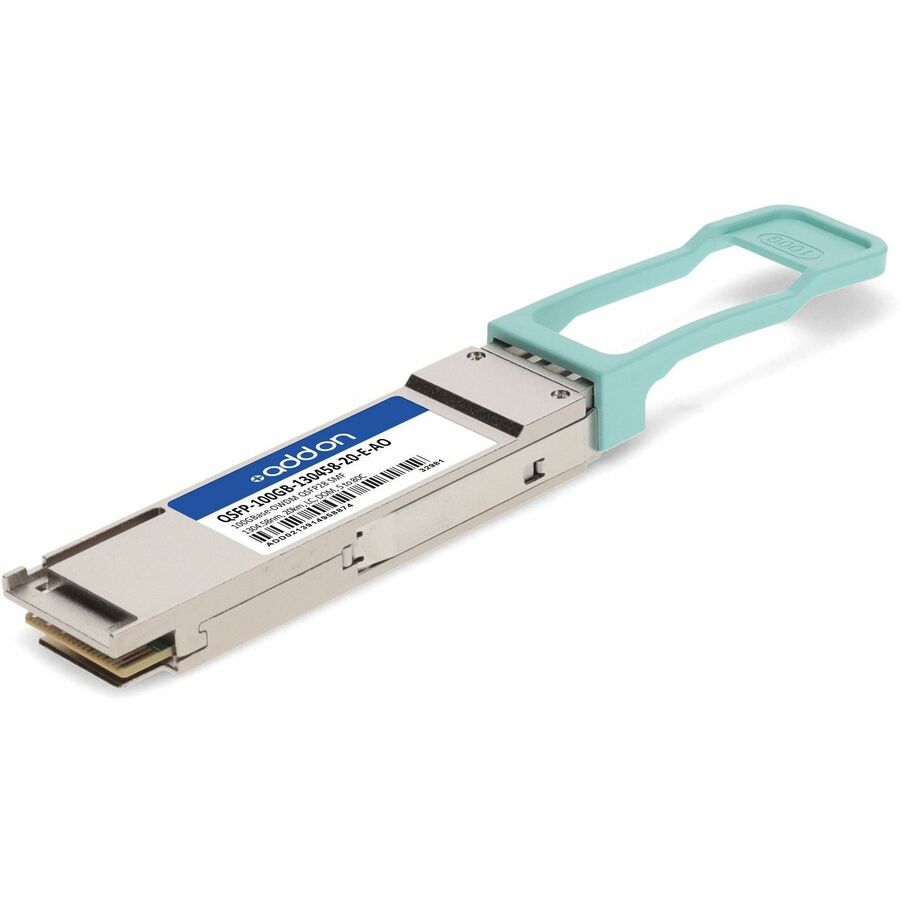

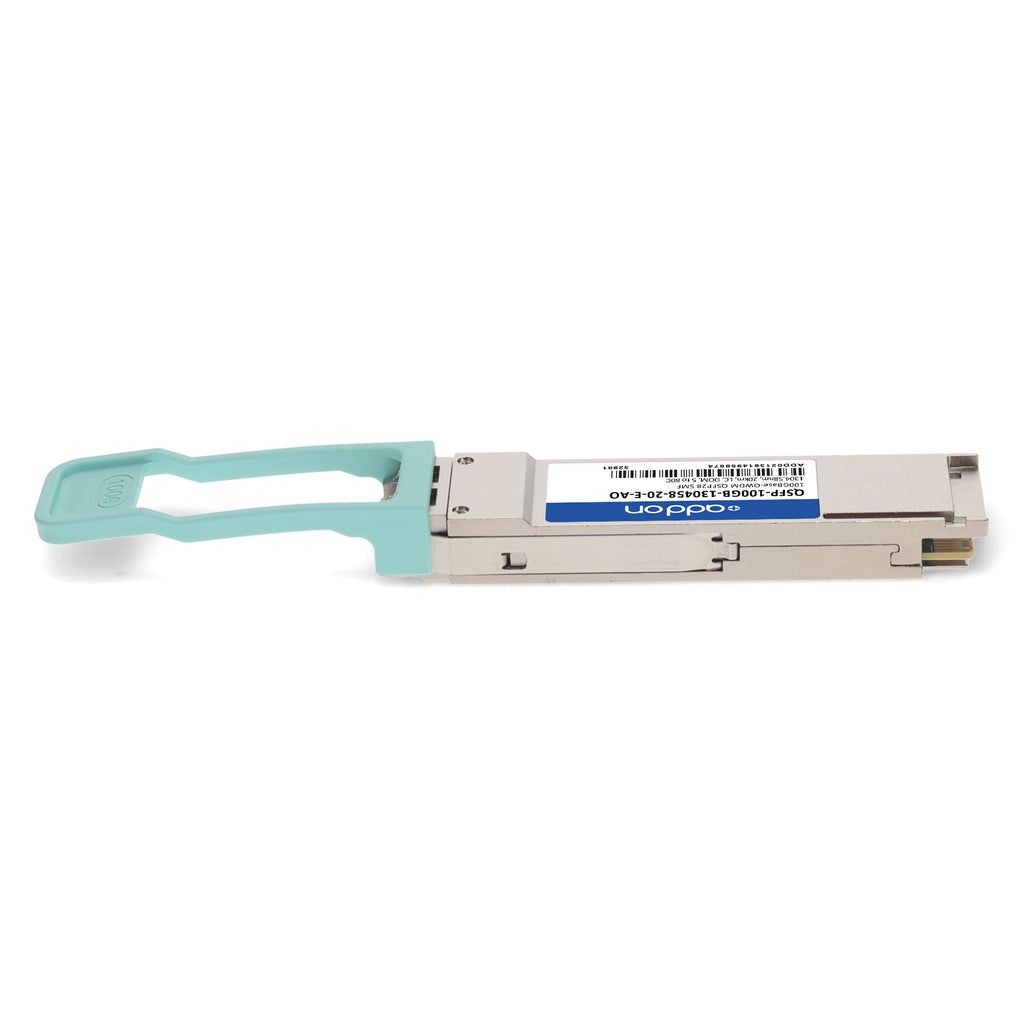

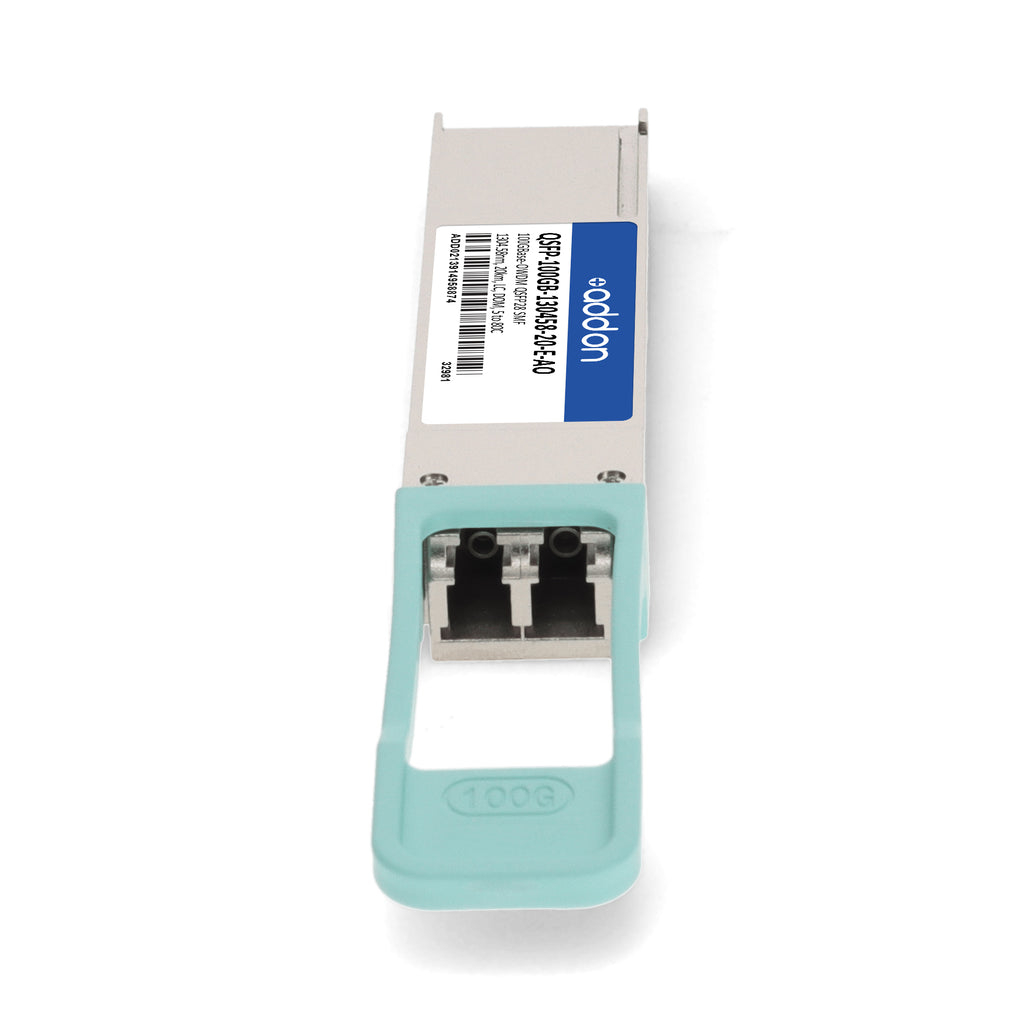

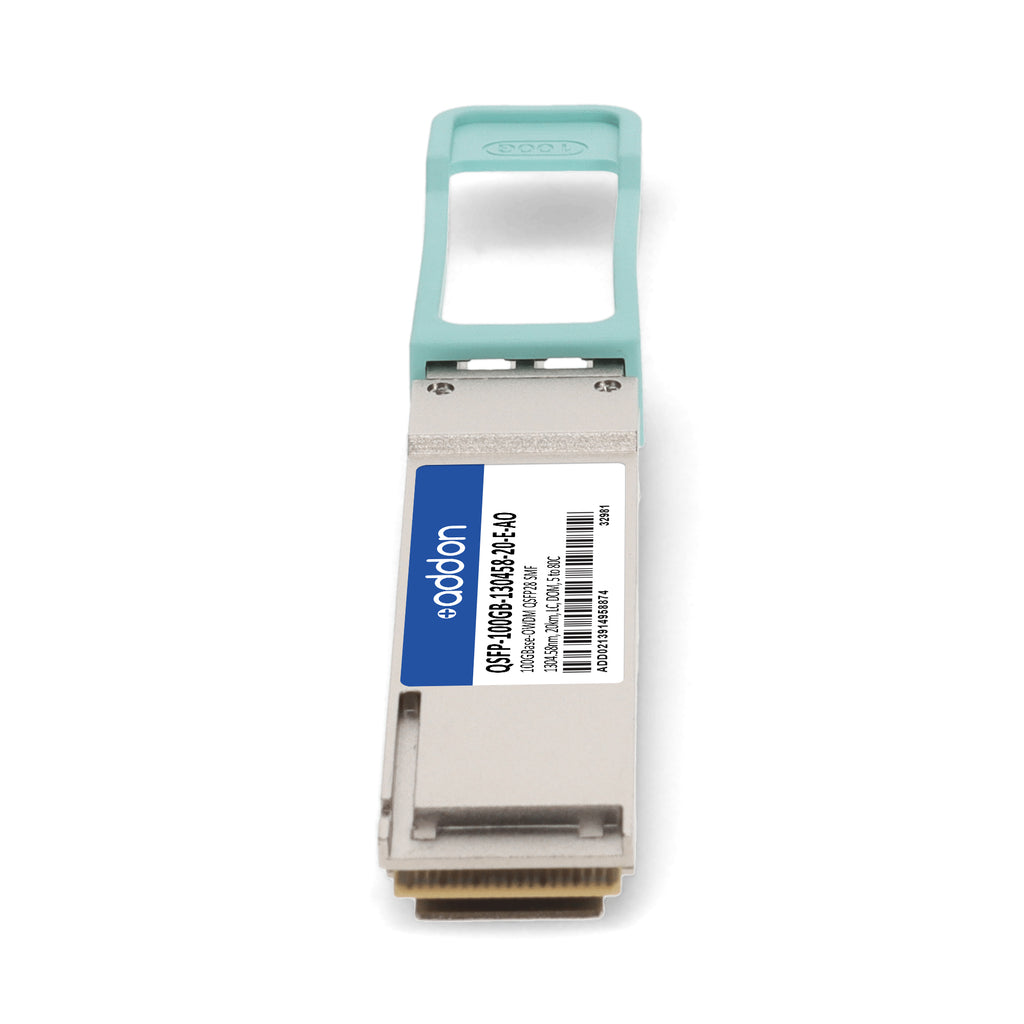

The AddOn QSFP-100GB-130458-20-E-AO is a high-performance 100GBase-OWDM QSFP28 optical transceiver designed for next-generation data center, enterprise, and access networks. Operating over single-mode fiber (SMF) with a reach of up to 20km, this transceiver uses an O-Band wavelength of 1304.58nm and PAM4 modulation to deliver reliable 106.25Gb/s performance. It features a high-sensitivity APD receiver, duplex LC connectors, and full Digital Optical Monitoring (DOM) support for real-time diagnostics. Built to QSFP28 MSA standards and compliant with IEEE 802.3bs and 100G Lambda MSA, it ensures seamless interoperability and easy deployment. Additionally, it is TAA compliant and backed by AddOn’s limited lifetime warranty, making it an ideal solution for high-bandwidth, long-distance optical networking applications.
| Parameter | Specification |
|---|---|
| Form Factor | QSFP28 |
| Data Rate | 106.25 Gb/s (PAM4) |
| Application | 100GBase Ethernet, Access and Enterprise |
| Wavelength | 1304.58 nm (O-Band Channel OW304, 50GHz) |
| Transmission Distance | Up to 20 km over SMF |
| Connector Type | Duplex LC |
| Modulation Format | PAM4 |
| Receiver Type | High-Sensitivity APD |
| Digital Diagnostics (DOM) | Supported |
| Compliance | QSFP28 MSA, IEEE 802.3bs, 100G Lambda MSA, TAA, RoHS |
| Power Supply Voltage | +3.3 V |
| Power Consumption | 4.4–5.5 W (typical depending on temperature) |
| Operating Temperature | -5°C to +80°C |
| Relative Humidity | 0% – 85% (non-condensing) |
| Optical Launch Power | 0 to +3.4 dBm |
| Receiver Sensitivity (OMAouter) | ≤ -14.0 dBm |
| Extinction Ratio | ≥ 5.0 dB |
| Side-Mode Suppression Ratio | ≥ 30 dB |
| Optical Return Loss Tolerance | ≥ 15.6 dB |
| Management Interface | I2C |
| Warranty | Limited Lifetime Warranty |
