Description

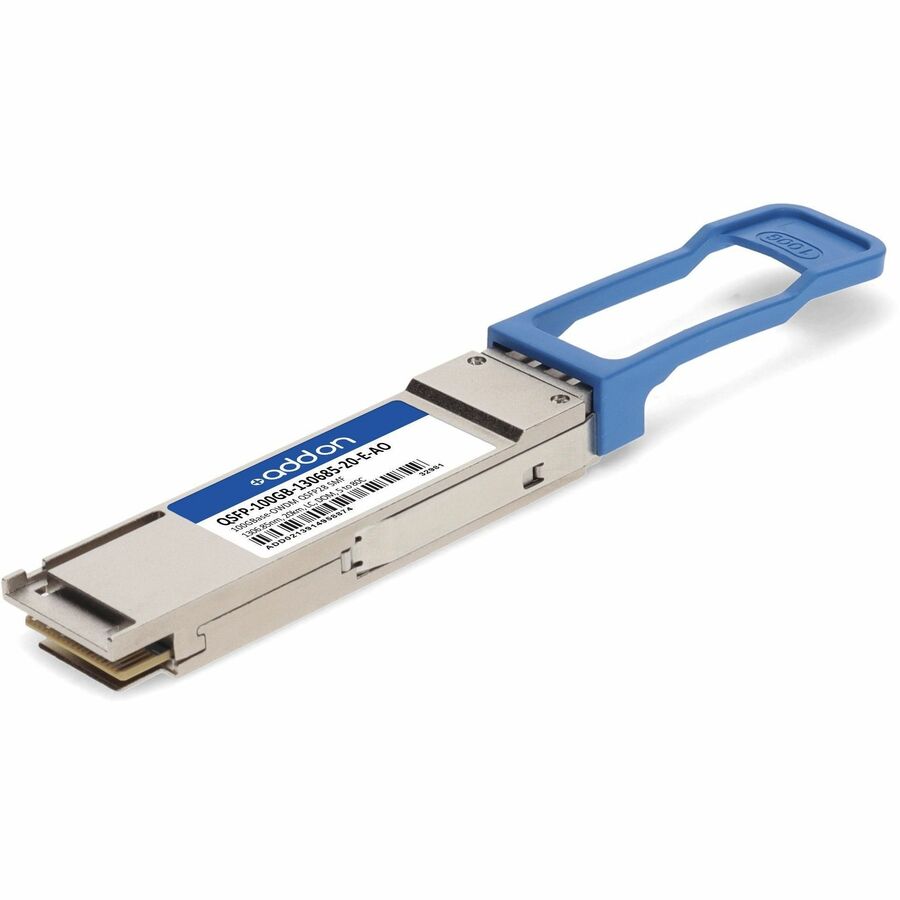

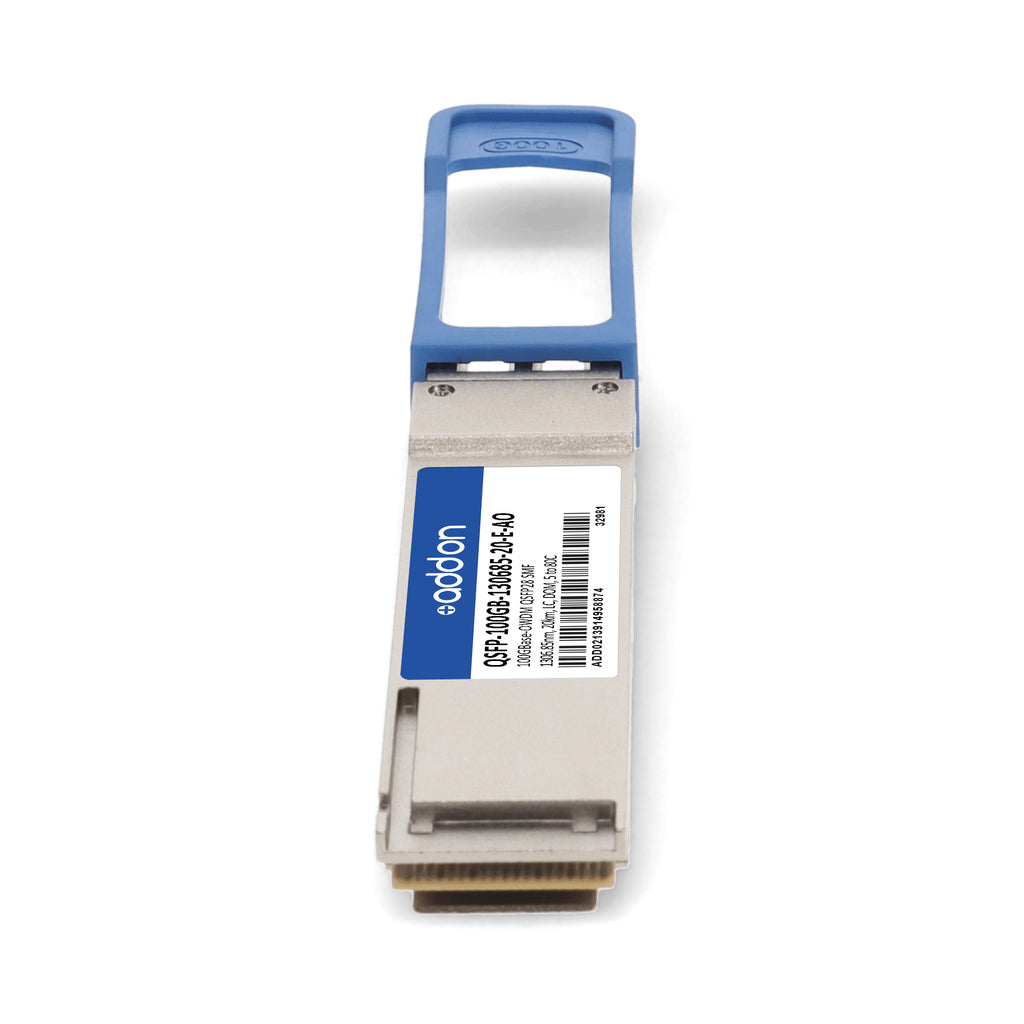

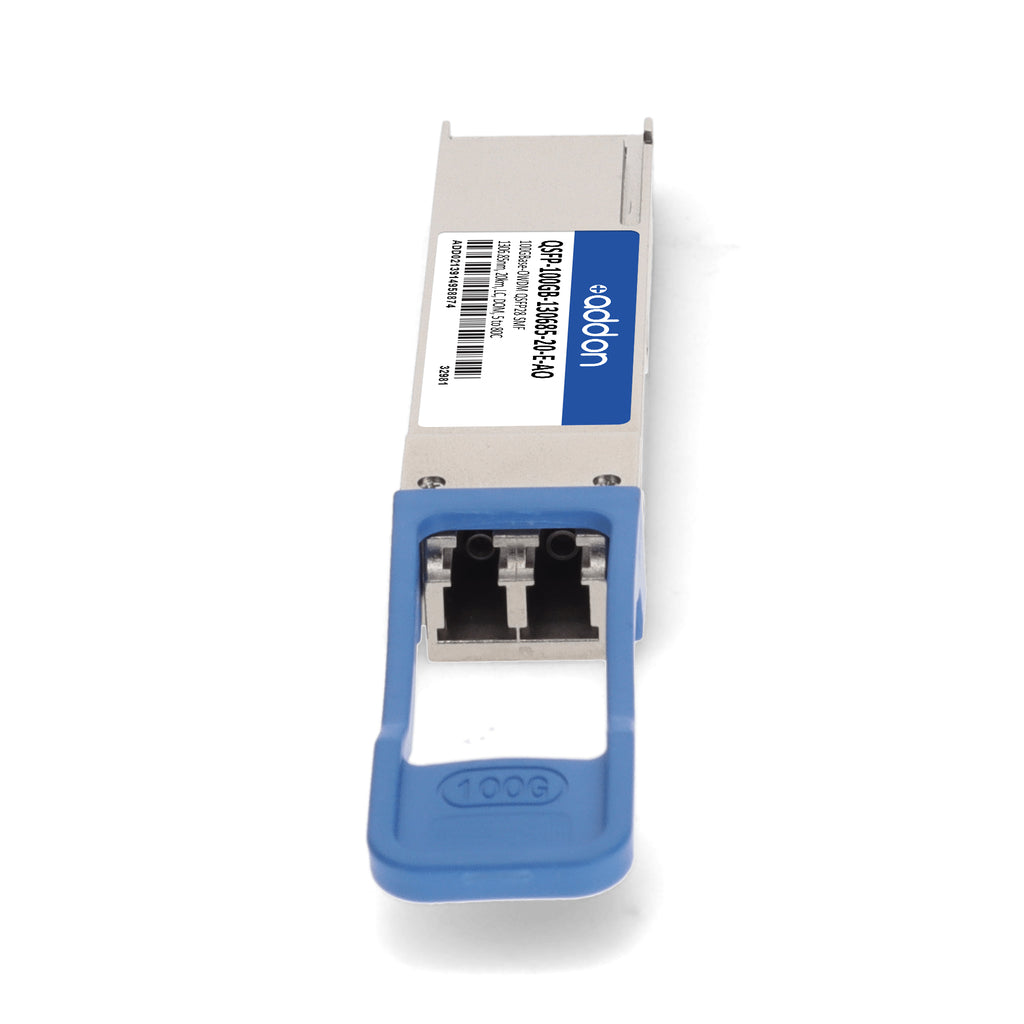

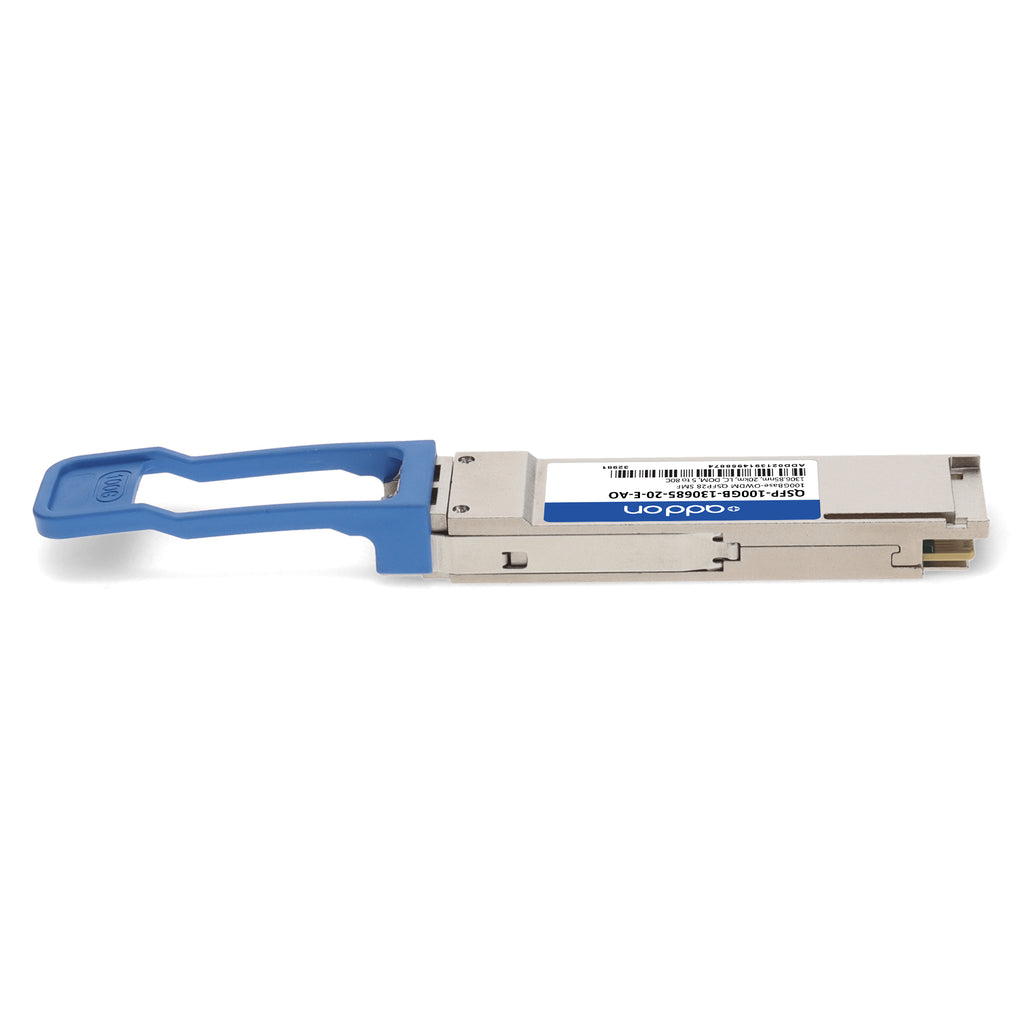

The AddOn QSFP-100GB-130685-20-E-AO is a high-performance, MSA and TAA-compliant 100GBase-OWDM QSFP28 optical transceiver designed for modern data center, enterprise, and carrier-class network environments. Operating over a single-mode fiber (SMF) link up to 20 km using a 1306.85 nm O-Band channel (OW306, 50 GHz), this module supports 106.25 Gb/s PAM4 signaling and ensures seamless integration with existing 100G Ethernet infrastructure. It features an advanced APD receiver for high sensitivity, supports digital optical monitoring (DOM) for real-time diagnostics, and uses duplex LC connectors for easy deployment. Aligned with IEEE 802.3bs and 100G Lambda MSA standards, this transceiver delivers reliable, high-speed performance in demanding environments with an extended operating temperature range of –5 °C to +80 °C.
| Parameter | Specification |
|---|---|
| Part Number | QSFP-100GB-130685-20-E-AO |
| Form Factor | QSFP28 |
| Data Rate | 106.25 Gb/s (PAM4) |
| Wavelength | 1306.85 nm (O-Band Channel OW306, 50 GHz) |
| Transmission Distance | Up to 20 km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector | Duplex LC |
| Optical Modulation Format | PAM4 |
| Average Launch Power | 0 dBm to +3.4 dBm |
| Receiver Sensitivity (OMAouter) | ≤ –11.6 dBm |
| Transmit Extinction Ratio | ≥ 5 dB |
| Side-Mode Suppression Ratio (SMSR) | ≥ 30 dB |
| Power Supply Voltage | +3.3 V |
| Power Consumption | 4.4 W – 5.5 W (typical) |
| Operating Temperature | –5 °C to +80 °C |
| Compliance Standards | QSFP28 MSA, IEEE 802.3bs, 100G Lambda MSA, TAA, RoHS |
| Digital Diagnostic Monitoring (DOM) | Supported |
| Applications | 100G Ethernet, Access, Enterprise Networks |
