Description

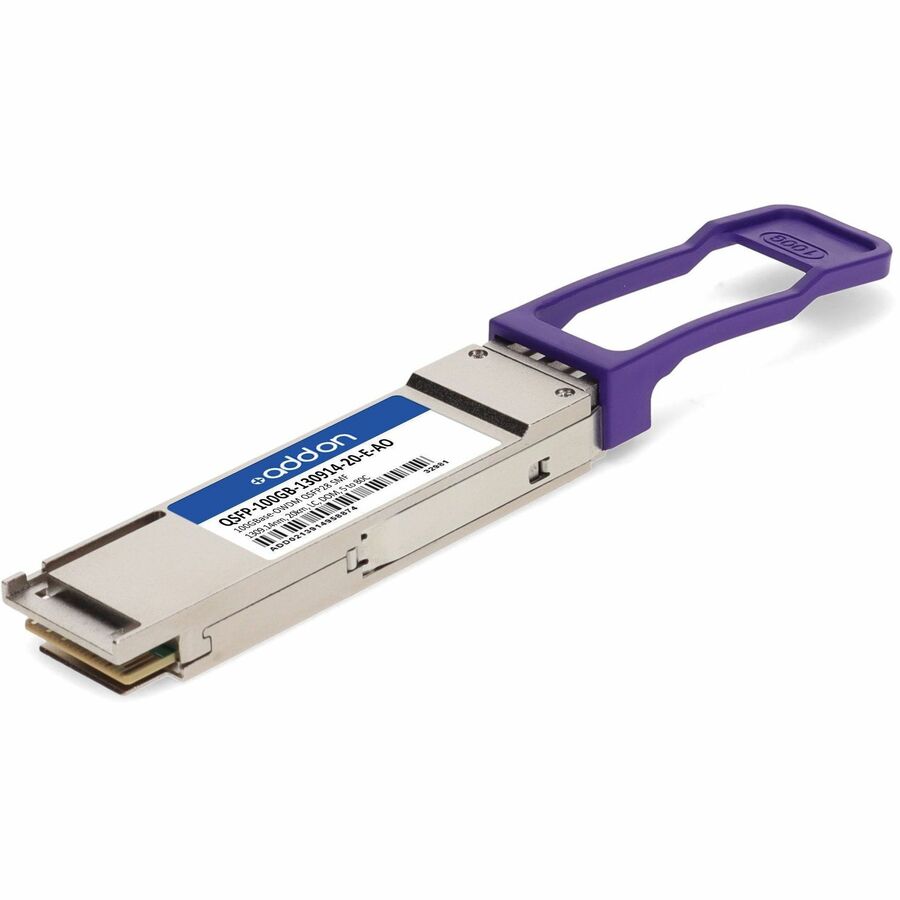

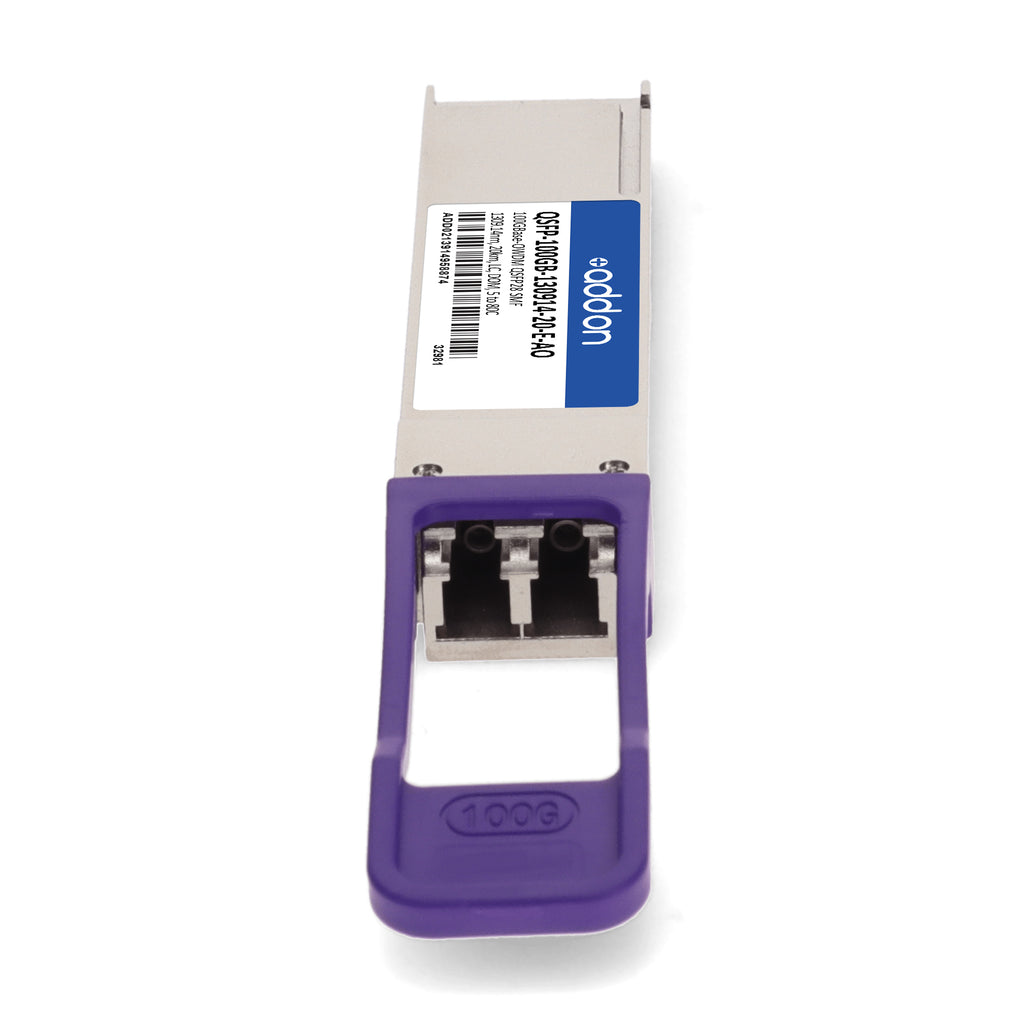

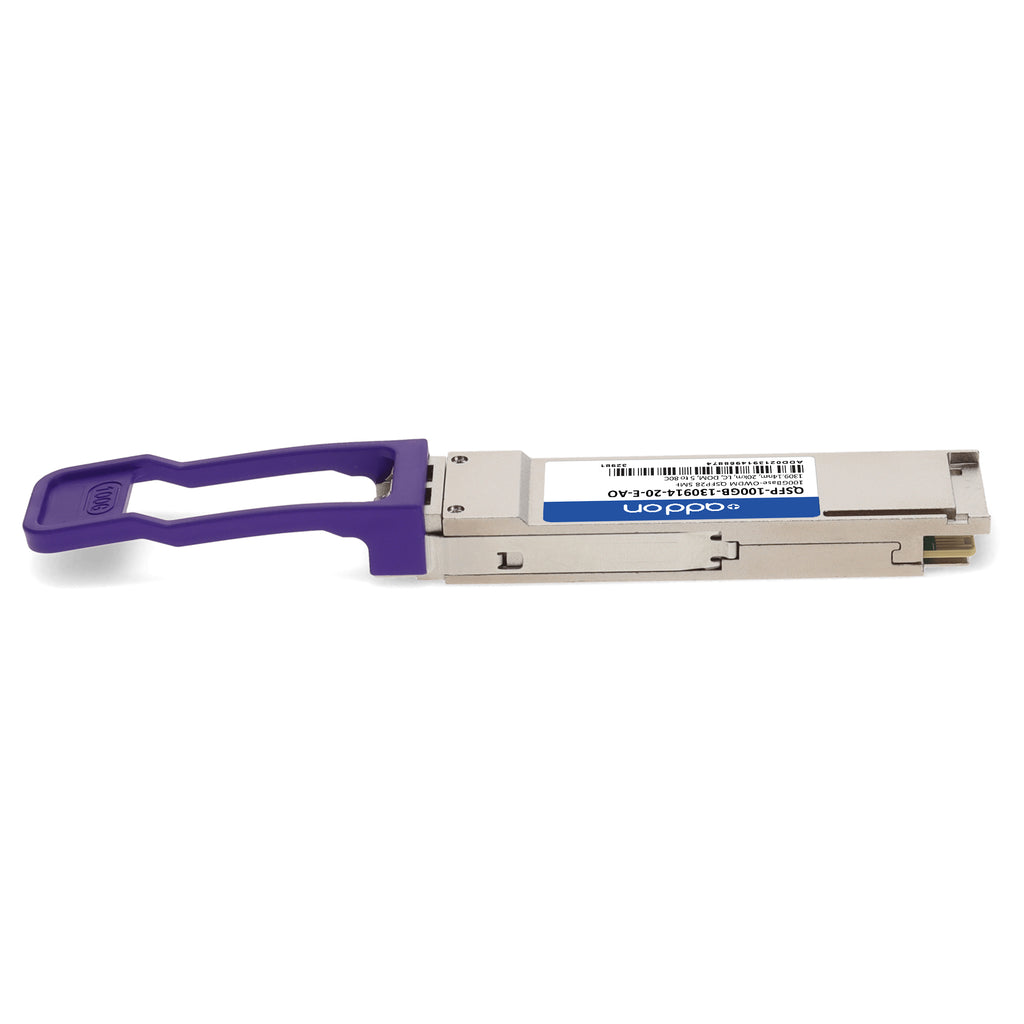

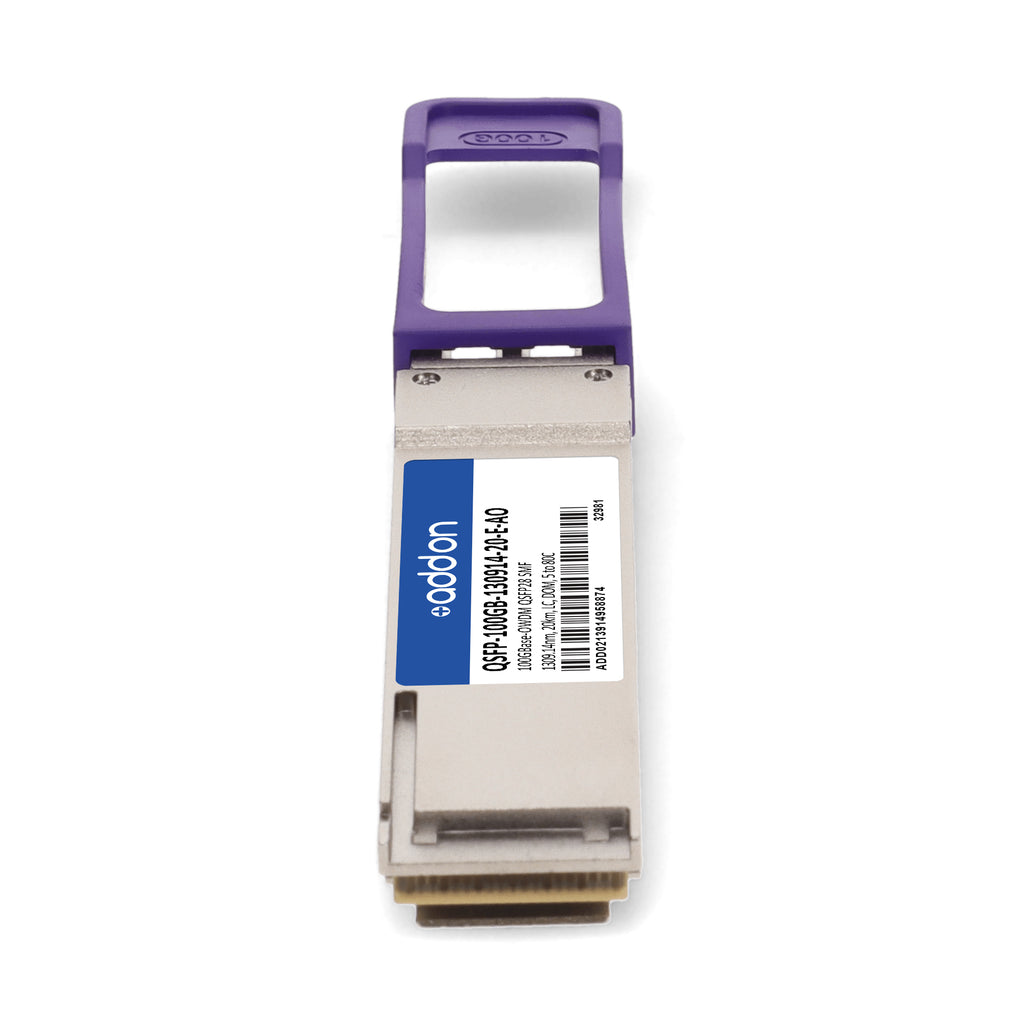

The AddOn QSFP-100GB-130914-20-E-AO is a high-performance 100GBase-OWDM QSFP28 optical transceiver designed for reliable and scalable high-speed data transmission in access and enterprise networks. Supporting data rates up to 106.25Gbps using PAM4 modulation, this transceiver delivers exceptional optical performance over single-mode fiber (SMF) at distances of up to 20km, operating at a wavelength of 1309.14nm on OW309 channel.
It is compliant with QSFP28 MSA, IEEE 802.3bs, and 100G Lambda MSA standards, and features Digital Optical Monitoring (DOM) for real-time performance tracking. Built with a high-sensitivity APD receiver and duplex LC connectors, it ensures seamless integration into existing infrastructures. TAA-compliant and rigorously tested for quality and reliability, this transceiver is ideal for modern data center, enterprise, and carrier-class deployments.
| Parameter | Specification |
|---|---|
| Form Factor | QSFP28 |
| Data Rate | Up to 106.25Gbps (PAM4) |
| Application | 100GBase Ethernet, Access and Enterprise |
| Transmission Distance | Up to 20km over SMF |
| Wavelength | 1309.14nm (OW309 Channel) |
| Wavelength Range | 1308.74 – 1309.54nm |
| Connector Type | Duplex LC |
| Modulation Format | PAM4 |
| Compliance Standards | QSFP28 MSA, IEEE 802.3bs, 100G Lambda MSA |
| Digital Diagnostics (DOM) | Supported |
| Receiver Type | High-Sensitivity APD |
| Optical Launch Power (Avg.) | 0 to +3.4 dBm |
| Receiver Sensitivity (OMAouter) | Up to -11.6 dBm |
| Power Supply Voltage | +3.3V |
| Power Consumption | 4.4W (typical) |
| Operating Temperature | -5°C to +80°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 0 – 85% (non-condensing) |
| Interface | I²C management interface |
| Compliance | TAA Compliant, RoHS, Lead-Free |
| Warranty | Limited Lifetime Warranty |
