Description

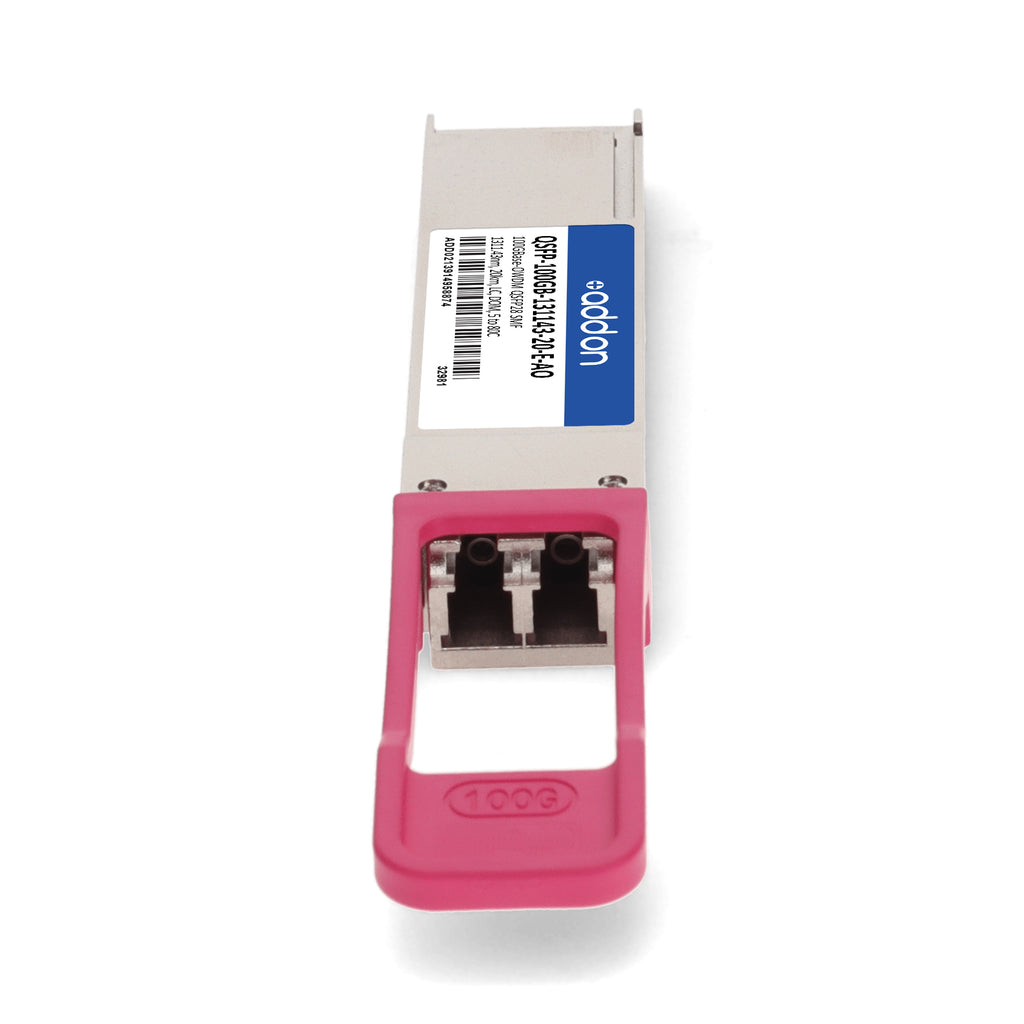

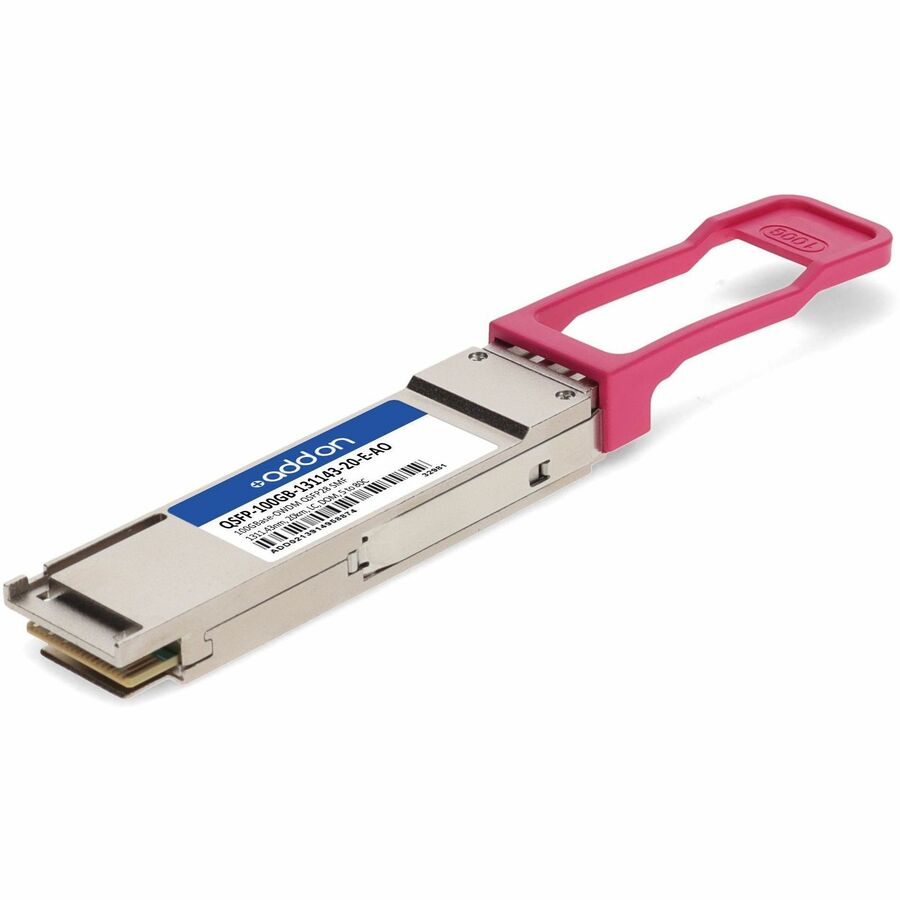

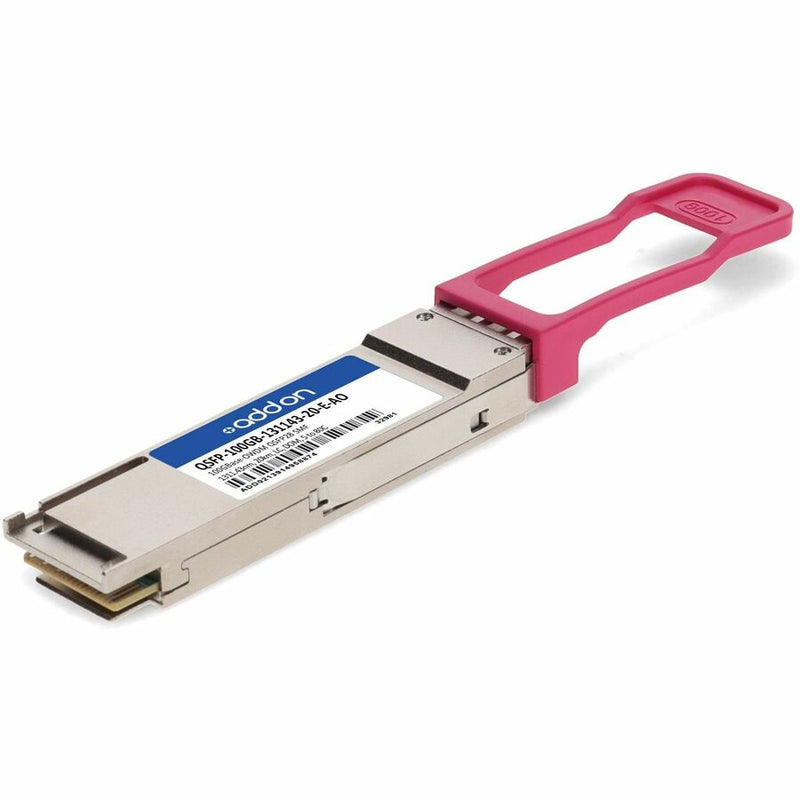

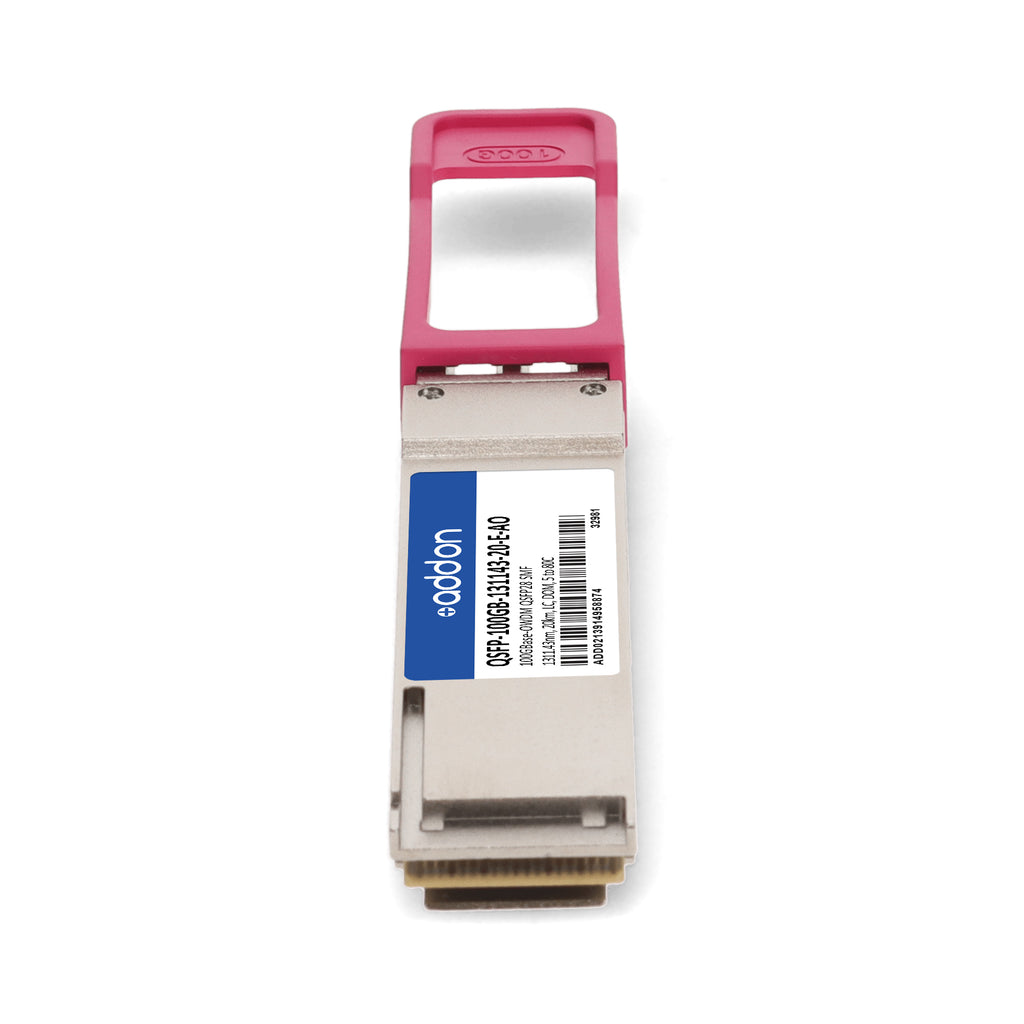

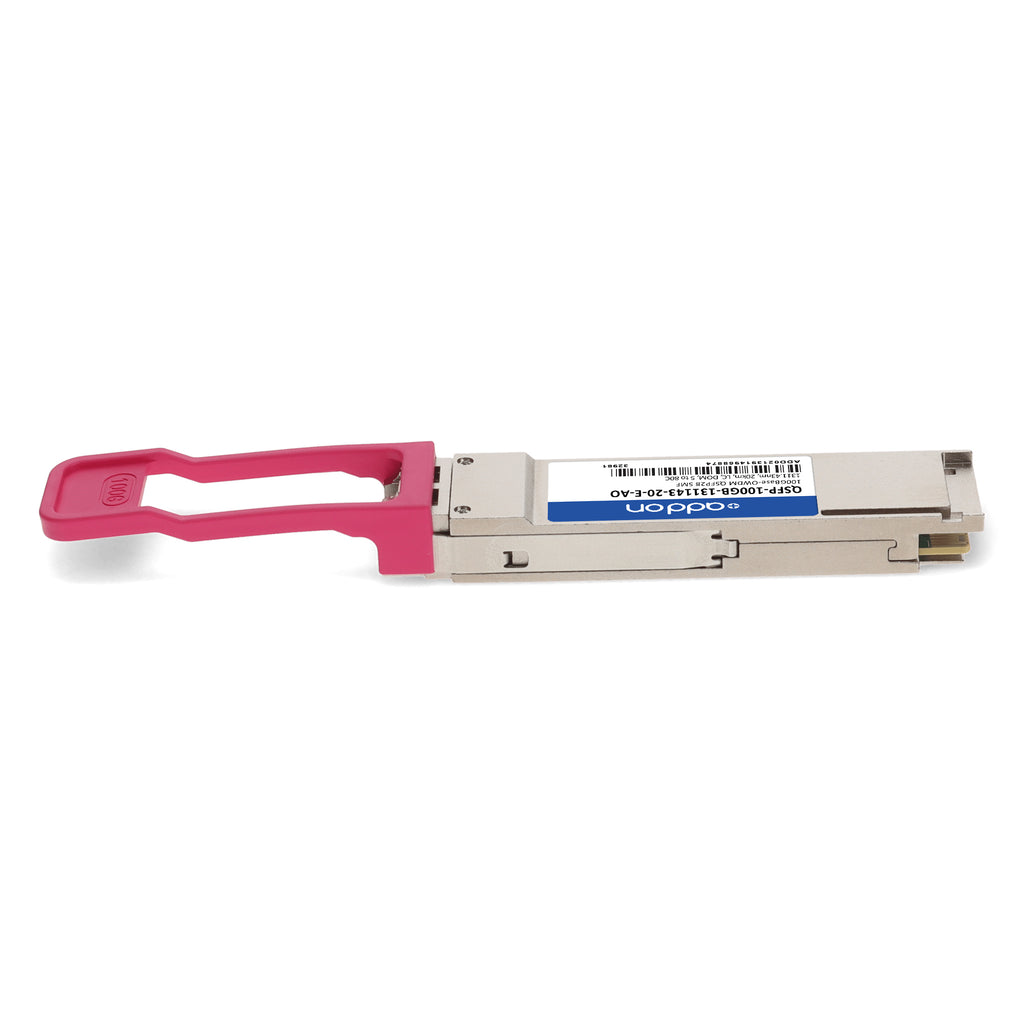

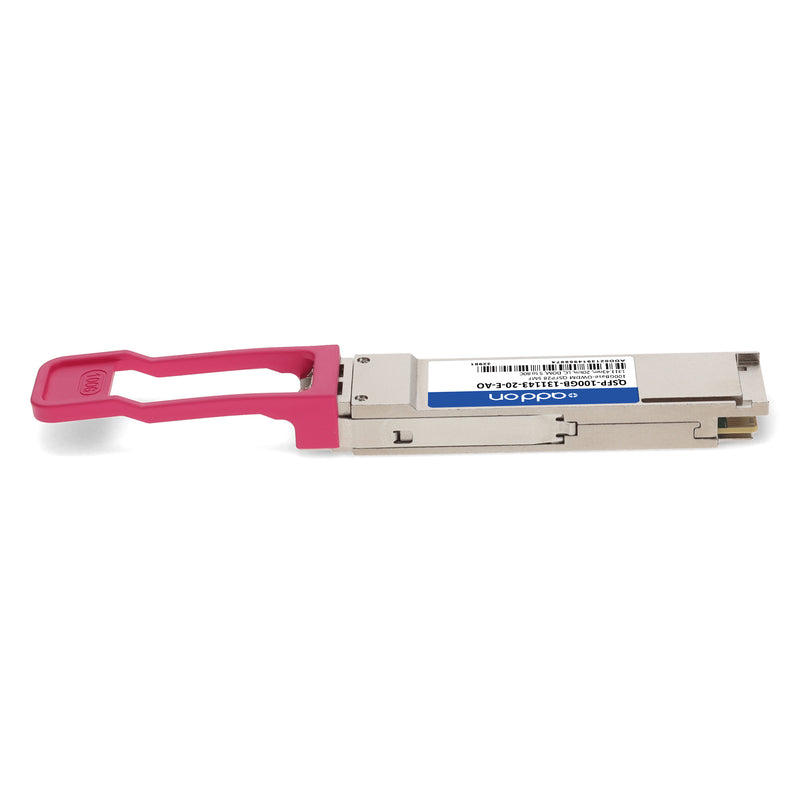

The AddOn QSFP-100GB-131143-20-E-AO is a high-performance, MSA and TAA-compliant 100GBase-OWDM QSFP28 optical transceiver designed for data center, enterprise, and access network applications. Supporting 106.25Gbps PAM4 transmission over single-mode fiber (SMF), this transceiver operates at a wavelength of 1311.43nm and delivers reliable connectivity up to 20km via duplex LC connectors.
Engineered with a high-sensitivity APD receiver and built-in Digital Optical Monitoring (DOM), it ensures real-time performance visibility and seamless integration into existing network infrastructures. Fully compliant with QSFP28 MSA, IEEE 802.3bs, and 100G Lambda MSA, it provides robust and scalable 100G connectivity in demanding environments. Each unit undergoes rigorous serialization, traffic, and application testing to guarantee compatibility, quality, and long-term reliability.
| Specification | Description |
|---|---|
| SKU | QSFP-100GB-131143-20-E-AO |
| Form Factor | QSFP28 |
| Data Rate | 106.25 Gbps (PAM4) |
| Application | 100GBase Ethernet |
| Wavelength | 1311.43 nm |
| Transmission Distance | Up to 20 km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector | Duplex LC |
| Wavelength Grid | OWDM, Channel OW311, 50 GHz |
| Receiver Type | High-Sensitivity APD |
| Operating Temperature | -5°C to +80°C |
| Power Supply | +3.3V |
| Power Consumption | 4.4W (typical) |
| Management Interface | I2C with Digital Optical Monitoring (DOM) |
| Compliance Standards | QSFP28 MSA, IEEE 802.3bs, 100G Lambda MSA |
| TAA Compliance | Yes |
| RoHS Compliance | Yes |
| Connector Type | Duplex LC |
| Optical Modulation | PAM4 |
| Launch Power (Avg.) | 0 to 3.4 dBm |
| Receiver Sensitivity (OMAouter) | Max. (-14.0 dBm, SECQ-15.4) |
| Extinction Ratio | ≥ 5.0 dB |
| Optical Return Loss Tolerance | 15.6 dB |
| Operating Humidity | 0% – 85% (non-condensing) |
| Warranty | Limited Lifetime Warranty |
