Description

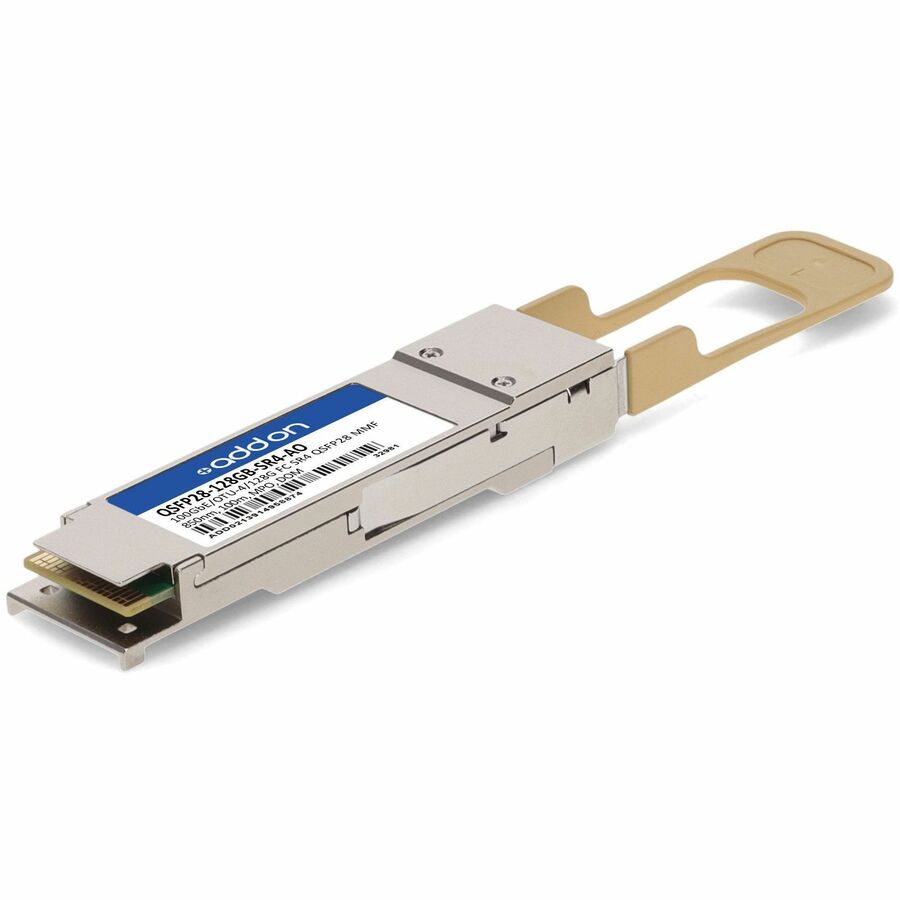

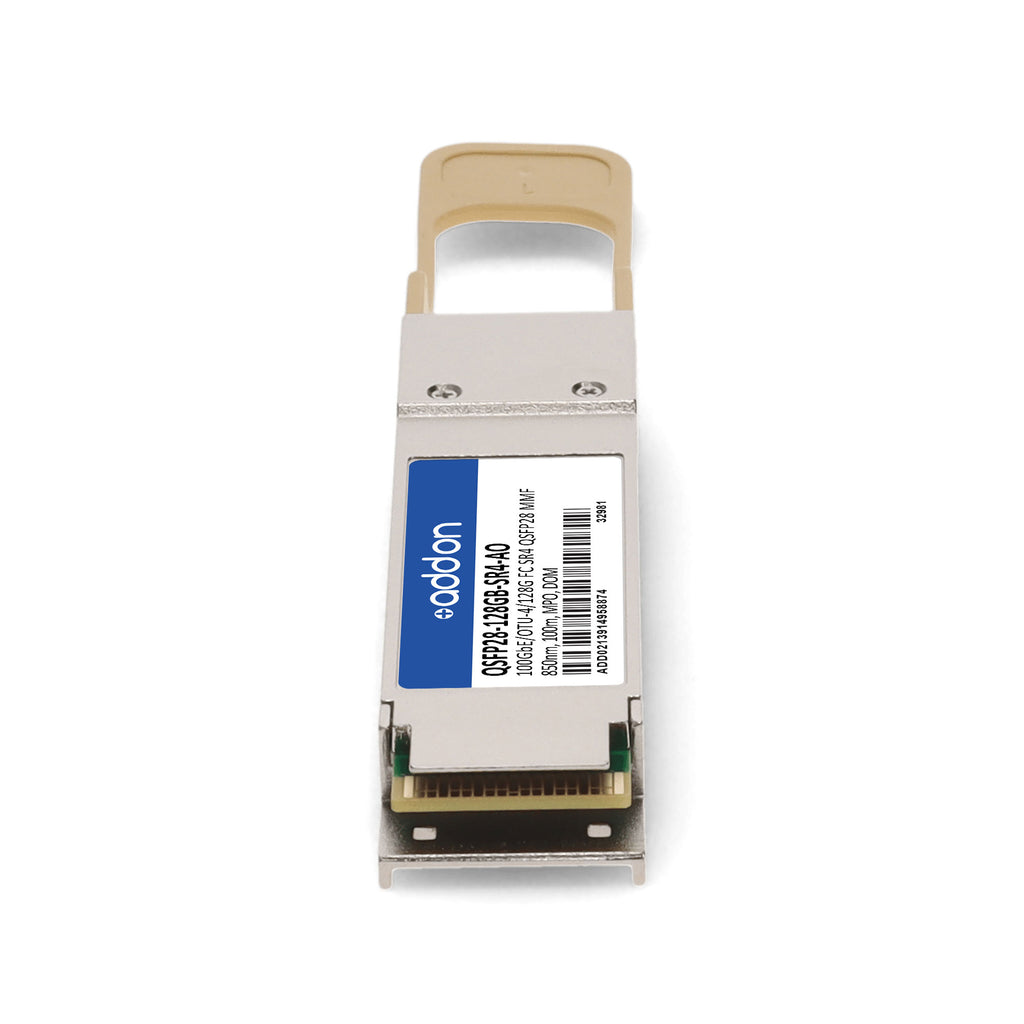

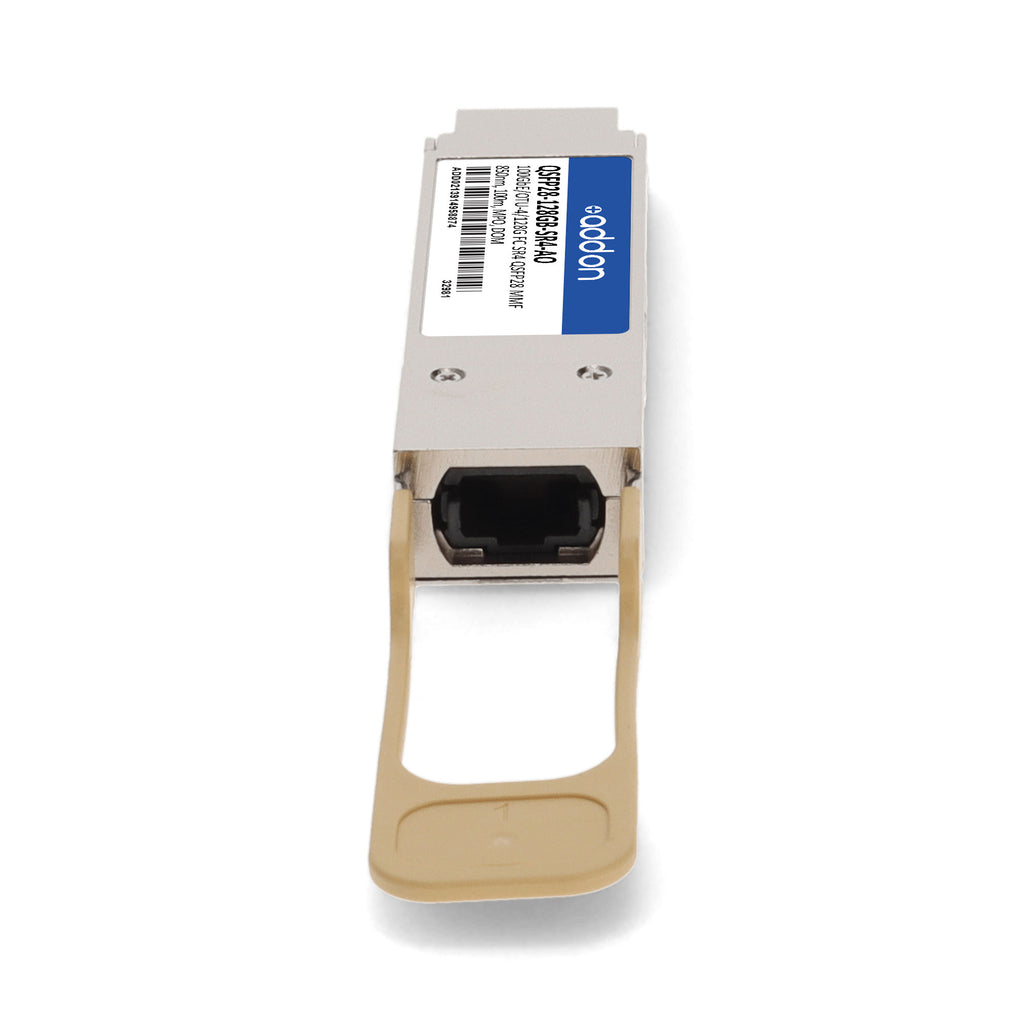

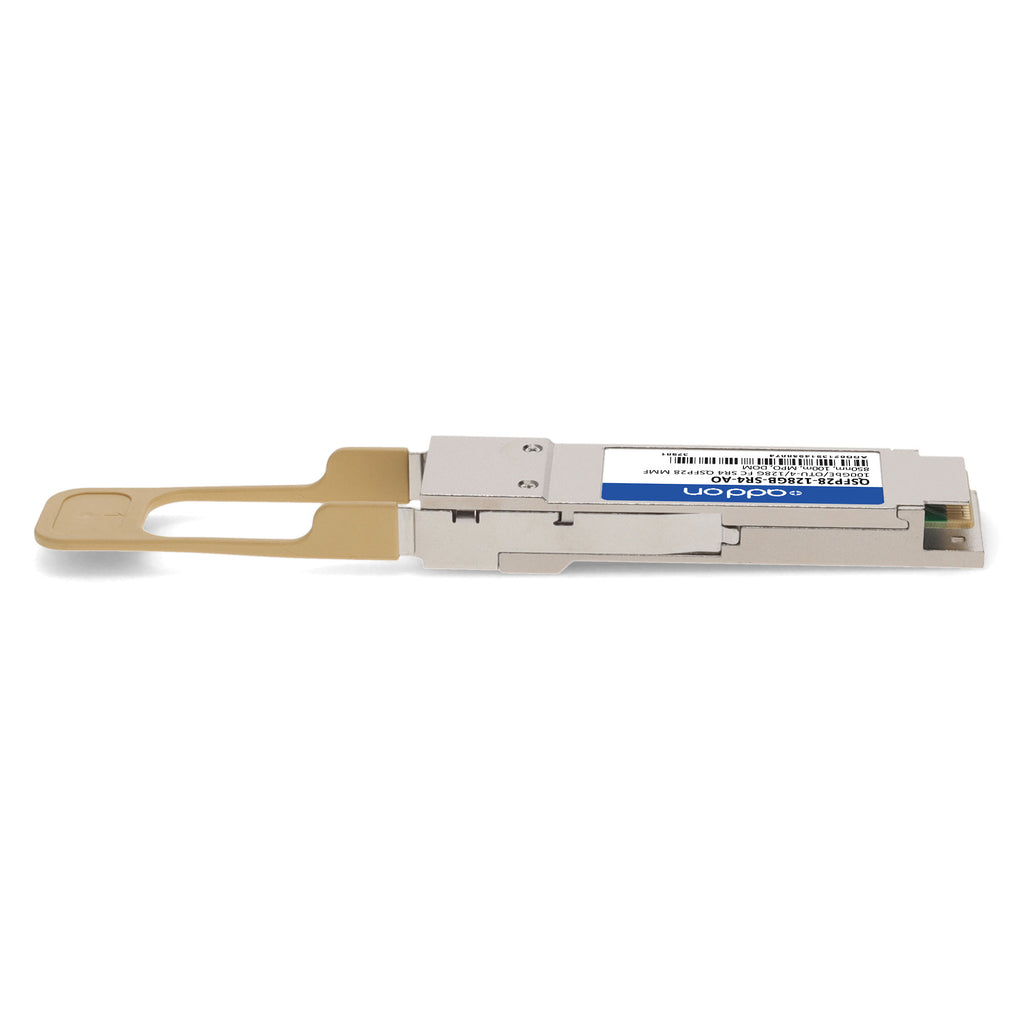

The AddOn QSFP28-128GB-SR4-AO is a high-performance, MSA and TAA compliant multi-rate optical transceiver designed for 100GBase Ethernet, OTU-4, and 128G Fibre Channel applications. Operating over multi-mode fiber (MMF), it delivers reliable data transmission up to 70 m on OM3 or 100 m on OM4 at a wavelength of 850 nm using an MPO connector. Featuring support for aggregate bit rates of 103.1 Gbps and 112.2 Gbps, this hot-pluggable QSFP28 module integrates digital optical monitoring (DOM) for real-time performance insights and ensures seamless interoperability with OEM equipment. With power dissipation under 3.5 W, a 3.3 V power supply, and operating temperatures from 0 °C to 70 °C, it is ideal for high-bandwidth data center, enterprise, and access network environments.
| Parameter | Specification |
|---|---|
| SKU | QSFP28-128GB-SR4-AO |
| Form Factor | QSFP28 |
| Data Rate | 103.1 Gbps (default), 112.2 Gbps (rate selectable) |
| Supported Standards | 100GBase Ethernet, OTU-4, 128G Fibre Channel |
| Wavelength | 850 nm |
| Fiber Type | Multi-Mode Fiber (MMF) |
| Transmission Distance | Up to 70 m (OM3), 100 m (OM4) |
| Connector | MPO |
| Digital Diagnostics (DOM) | Supported |
| Power Supply | 3.3 V |
| Power Consumption | < 3.5 W |
| Operating Temperature | 0 °C to +70 °C |
| Compliance | MSA, TAA, RoHS6, FDA Class 1, IEC60825-1 |
| Bit Rate per Lane | 25.78 Gbps (Ethernet), up to 28.05 Gbps (OTU-4/FC) |
| Average Launch Power (per lane) | -8.4 dBm to 2.4 dBm |
| Receiver Sensitivity (per lane) | -10.3 dBm to 2.4 dBm |
| Extinction Ratio | ≥ 3 dB |
| Interface | I²C with DOM support |
| Hot-Pluggable | Yes |
