Description

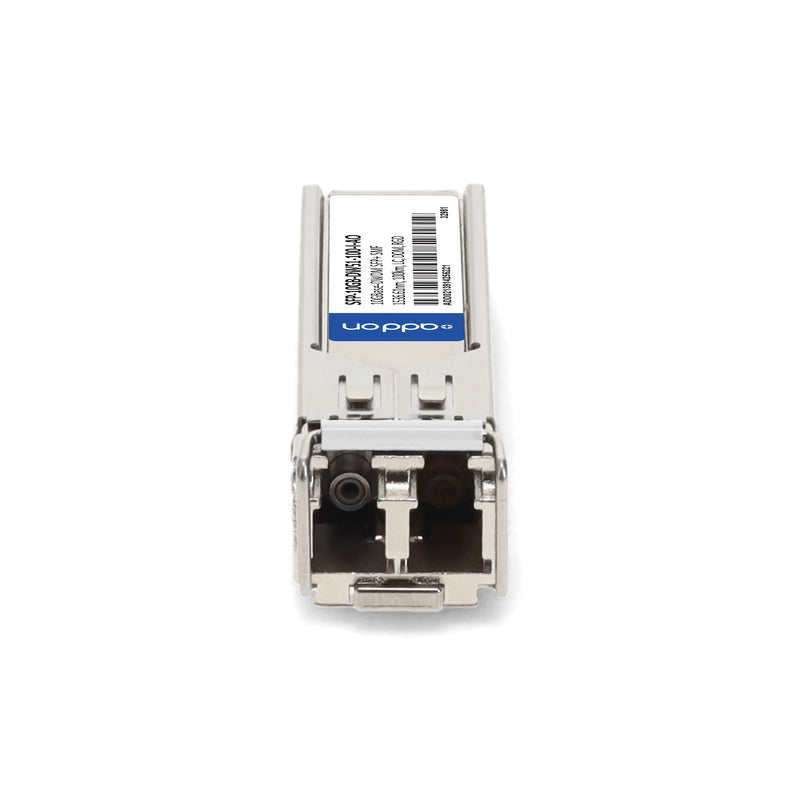

The AddOn SFP-10GB-DW51-100-I-AO is a high-performance, MSA-compliant 10GBase-DWDM SFP+ transceiver designed for long-distance optical networking applications. Operating on a 1536.61 nm wavelength in the C-Band 100 GHz grid, it delivers reliable data transmission up to 100 km over single-mode fiber (SMF) with a duplex LC connector.
This transceiver features a temperature-stabilized EML transmitter and APD receiver, industrial temperature support (-40 °C to 85 °C), and Digital Optical Monitoring (DOM) for real-time diagnostics. Hot-pluggable and TAA-compliant, it is ideal for 10 Gigabit Ethernet, 8G/10G Fibre Channel, enterprise access networks, and DWDM-based transport solutions. Each unit undergoes rigorous serialization and application testing to ensure seamless integration and long-term reliability in mission-critical environments.
| Parameter | Specification |
|---|---|
| Brand | AddOn |
| Model / SKU | SFP-10GB-DW51-100-I-AO |
| Form Factor | SFP+ |
| Data Rate | 10.3125 Gbps |
| Wavelength | 1536.61 nm (C-Band, ITU Channel 51) |
| Distance | Up to 100 km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector | Duplex LC |
| Tx Type / Rx Type | EML Transmitter / APD Receiver |
| Optical Power (Tx) | +1.0 dBm to +4.0 dBm |
| Receiver Sensitivity | ≤ -26 dBm |
| Receiver Overload | ≥ -7.0 dBm |
| Extinction Ratio | ≥ 9 dB |
| Optical Return Loss Tolerance (Tx) | 21 dB |
| Optical Return Loss (Rx) | 27 dB |
| Power Dissipation | ≤ 1.8 W |
| Supply Voltage | 3.135 V – 3.465 V |
| Operating Temperature | -40 °C to +85 °C |
| Digital Diagnostics (DOM) | Supported |
| Compliance | MSA, SFF-8432, SFF-8472, TAA, RoHS |
| Applications | 10G Ethernet DWDM, 8G/10G Fibre Channel, Enterprise & Access Networks |
| Warranty | Limited Lifetime Warranty |
