Description

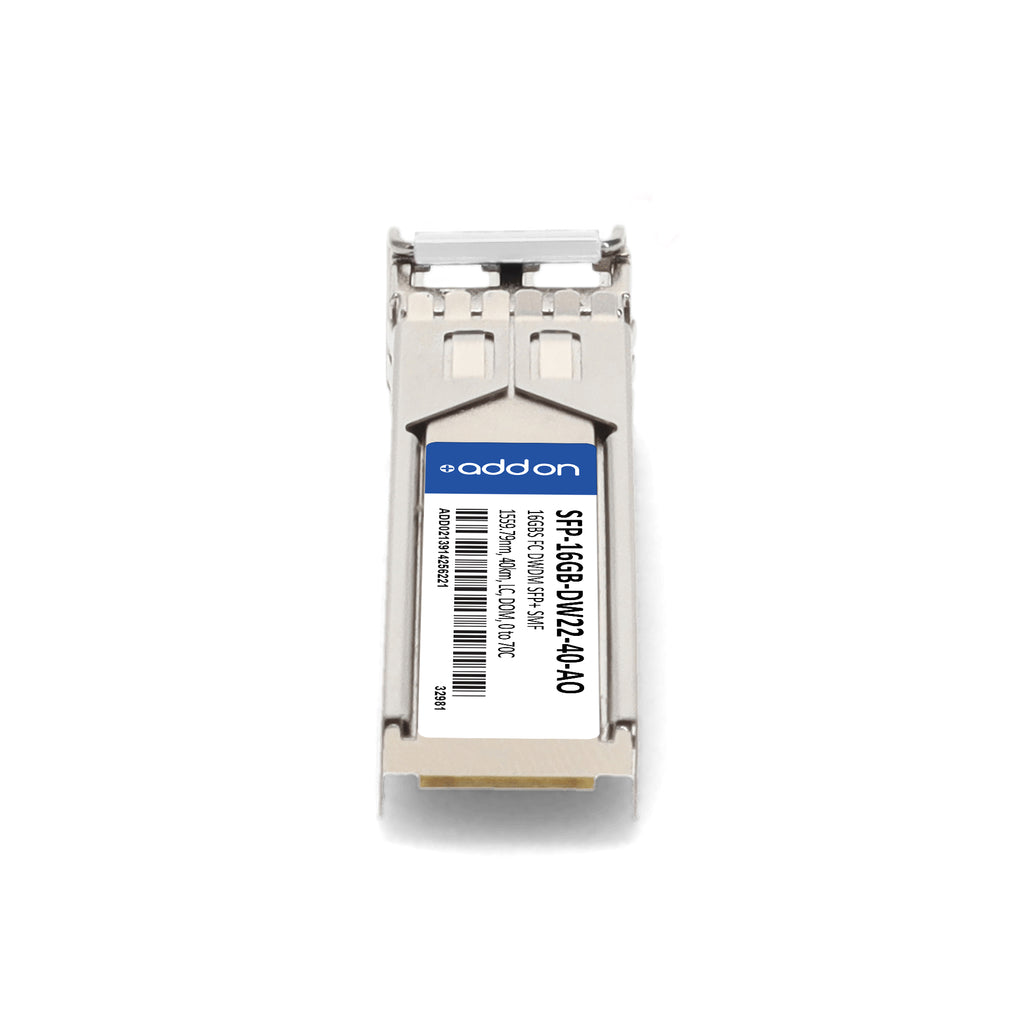

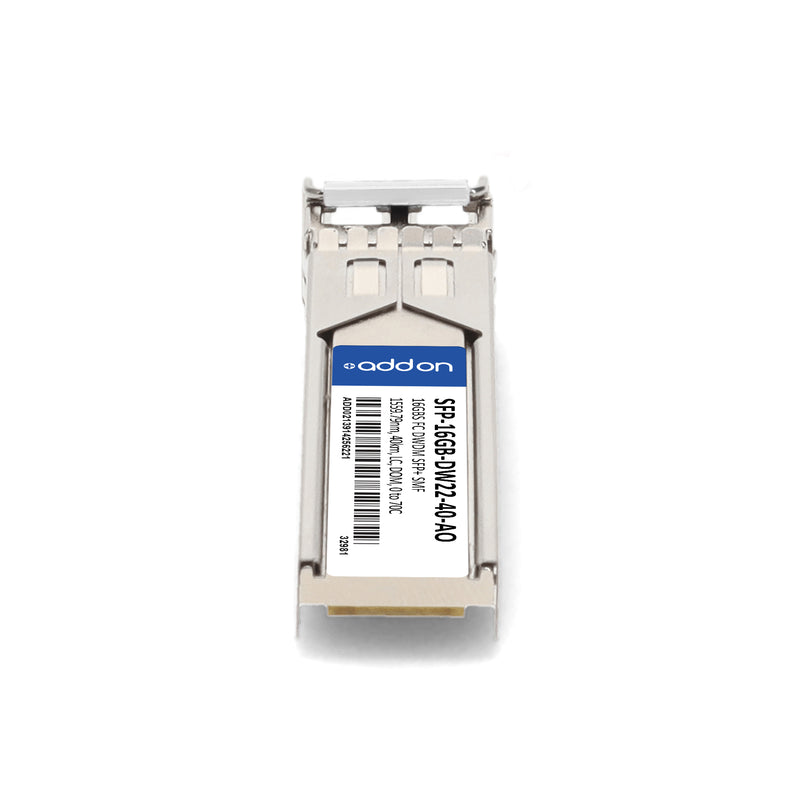

The AddOn SFP-16GB-DW22-40-AO is a high-performance MSA and TAA compliant 16GBase-DWDM Fibre Channel SFP+ transceiver designed for reliable long-distance data transmission over single-mode fiber (SMF) up to 40km. Operating on the ITU-T 100GHz DWDM Channel DW22 with a wavelength of 1559.79nm, it provides seamless integration into Fibre Channel and Ethernet networks. Equipped with a cooled EML transmitter, PIN receiver, duplex LC connector, and digital optical monitoring (DOM), this hot-pluggable transceiver ensures exceptional signal integrity and real-time diagnostics. Ideal for metro, enterprise, and access network deployments, it is fully tested for performance, interoperability, and reliability, backed by AddOn’s limited lifetime warranty.
| Specification | Details |
|---|---|
| Part Number | SFP-16GB-DW22-40-AO |
| Form Factor | SFP+ |
| Data Rate | Up to 16GBase DWDM Fibre Channel |
| Wavelength / Channel | 1559.79nm (Channel DW22, 100GHz) |
| Distance | Up to 40km |
| Fiber Type | Single-mode Fiber (SMF) |
| Connector | Duplex LC |
| Transmitter Type | Cooled EML |
| Receiver Type | PIN |
| Digital Optical Monitoring (DOM) | Supported |
| Operating Temperature | 0°C to 70°C (Commercial) |
| Power Supply Voltage | 3.135V – 3.465V |
| Power Consumption | ≤ 550 mA |
| Average Output Power | -1 to 3 dBm |
| Receiver Sensitivity | ≤ -14 dBm |
| Extinction Ratio | ≥ 8.2 dB |
| Compliance | SFF-8432, SFF-8472, RoHS, TAA, FCC Part 15, EN55022, IEC 60825-1/2 |
| Applications | 8G/10G/16G Fibre Channel, 16G Ethernet over DWDM, Access, Metro, Enterprise Networks |
| Hot-Pluggable | Yes |
| Warranty | Limited Lifetime Warranty |
