Description

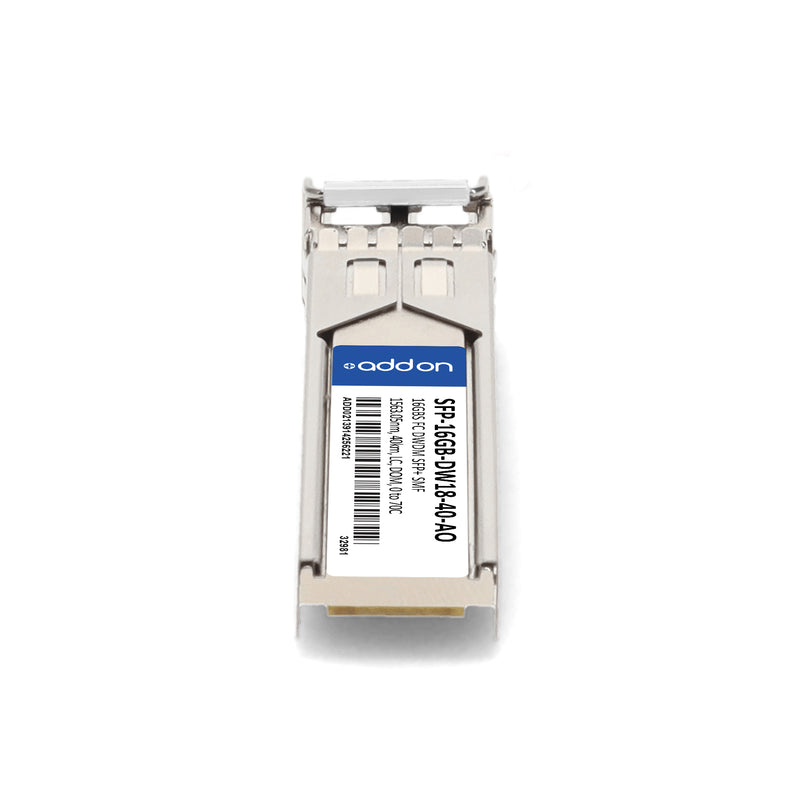

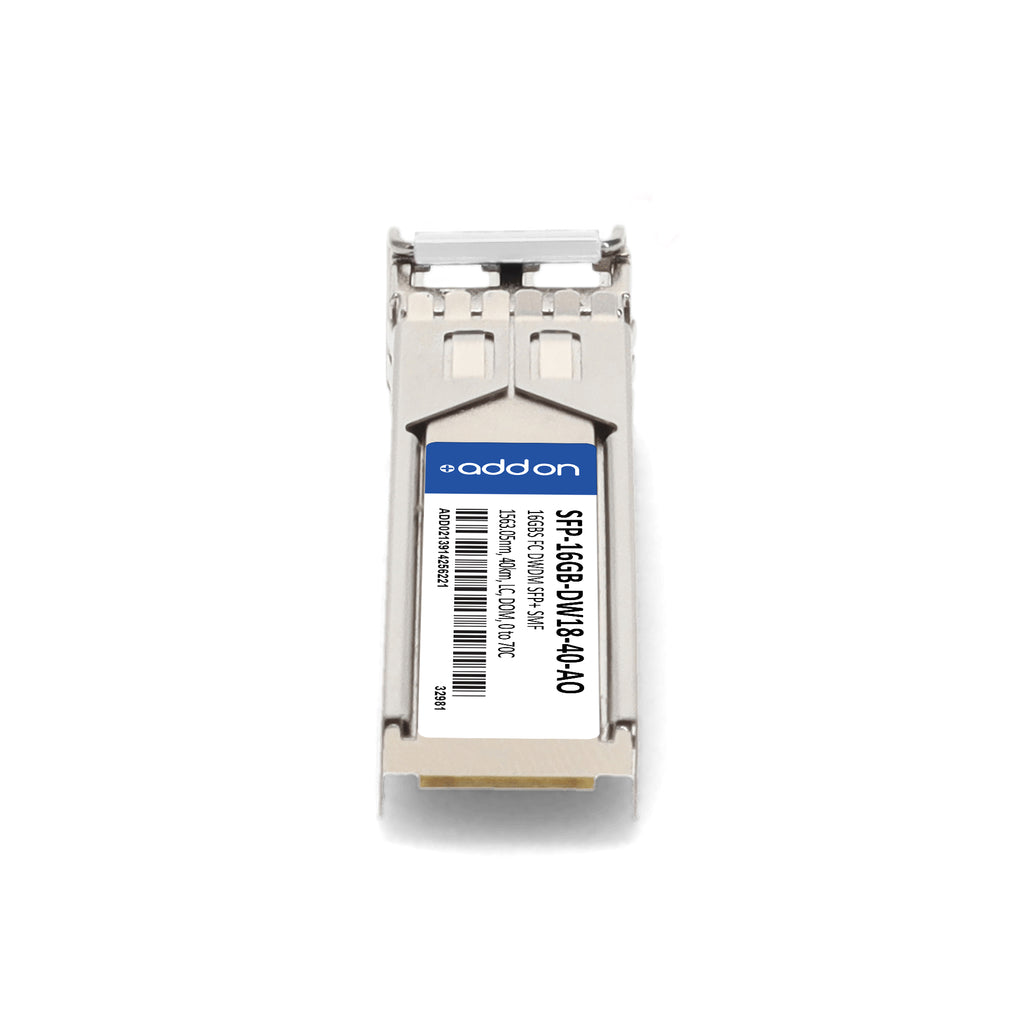

The AddOn SFP-16GB-DW18-40-AO is a high-performance, MSA-compliant SFP+ transceiver designed for 16GBase-DWDM Fibre Channel applications. Operating on ITU Channel DW18 (191.8 THz, 1563.05 nm), it delivers reliable optical connectivity up to 40 km over single-mode fiber (SMF) using a duplex LC connector.
Built with a cooled EML transmitter and PIN receiver, this hot-pluggable transceiver offers excellent ESD protection, low EMI, and robust performance in commercial temperature environments (0 – 70 °C). Digital Optical Monitoring (DOM) enables real-time diagnostics, while full TAA compliance ensures suitability for government and enterprise deployments.
Each unit is uniquely serialized, rigorously tested for interoperability, and backed by AddOn’s limited lifetime warranty — making it a dependable choice for 8G/10G Fibre Channel, 16G Ethernet, and metro, access, or enterprise network environments.
| Specification | Details |
|---|---|
| SKU | SFP-16GB-DW18-40-AO |
| Form Factor | SFP+ |
| Data Rate | Up to 14.025 Gbps |
| Application | 16GBase-DWDM Fibre Channel |
| ITU Channel | DW18 |
| Frequency | 191.8 THz |
| Wavelength | 1563.05 nm |
| Transmission Distance | Up to 40 km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector | Duplex LC |
| Transmitter Type | Cooled EML |
| Receiver Type | PIN |
| Optical Power Output | -1 dBm to +3 dBm |
| Receiver Sensitivity | ≤ -14 dBm |
| Receiver Overload | 0.5 dBm |
| Extinction Ratio | ≥ 8.2 dB |
| Spectral Width (-20 dB) | ≤ 1 nm |
| Side-Mode Suppression Ratio | ≥ 30 dB |
| Digital Diagnostics (DOM) | Supported |
| Temperature Range | 0 °C – 70 °C (Commercial) |
| Power Supply Voltage | 3.135 V – 3.465 V |
| Power Consumption | ≤ 550 mA |
| Hot Pluggable | Yes |
| Compliance | SFF-8432, SFF-8472, RoHS, TAA, FCC Part 15, EN55022, FDA 21CFR, IEC 60825-1/2 |
| Use Cases | 8G/10G FC, 16G Ethernet, Access, Metro, Enterprise Networks |
