Description

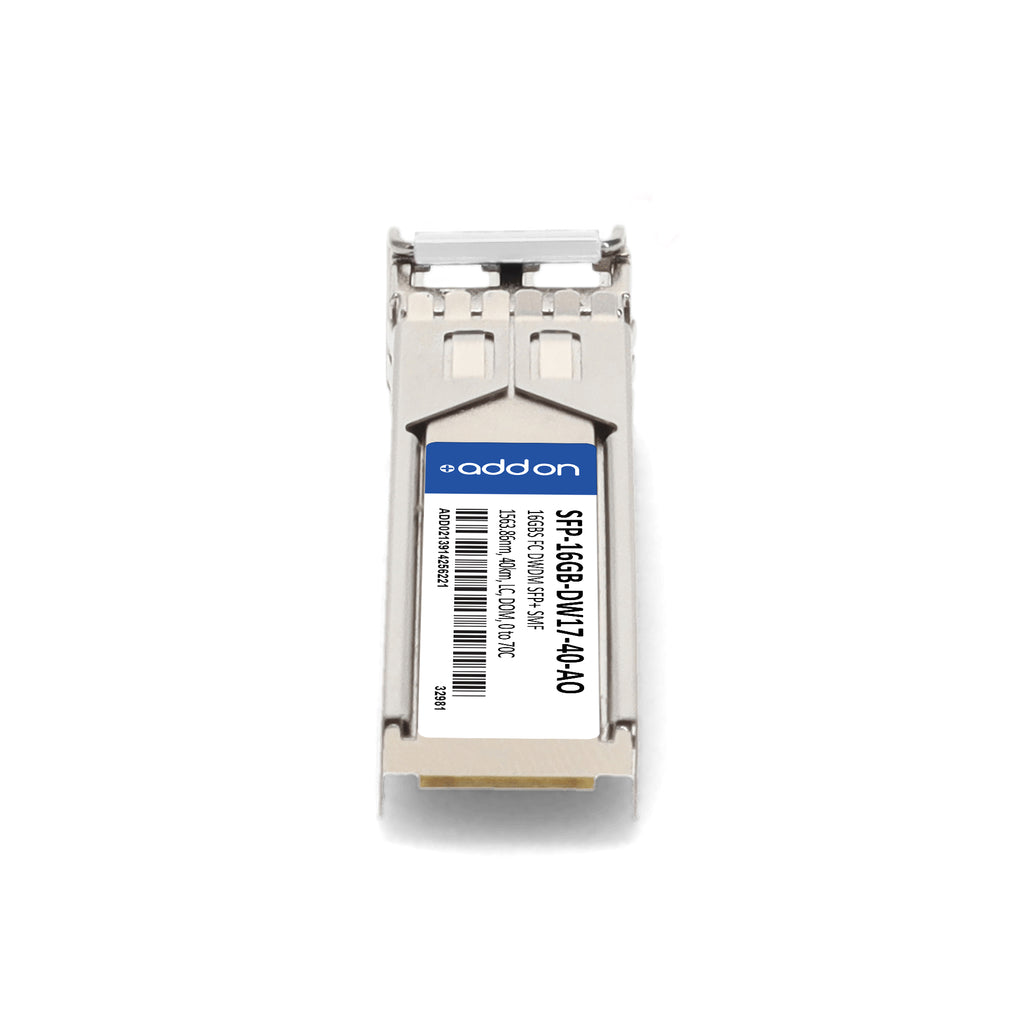

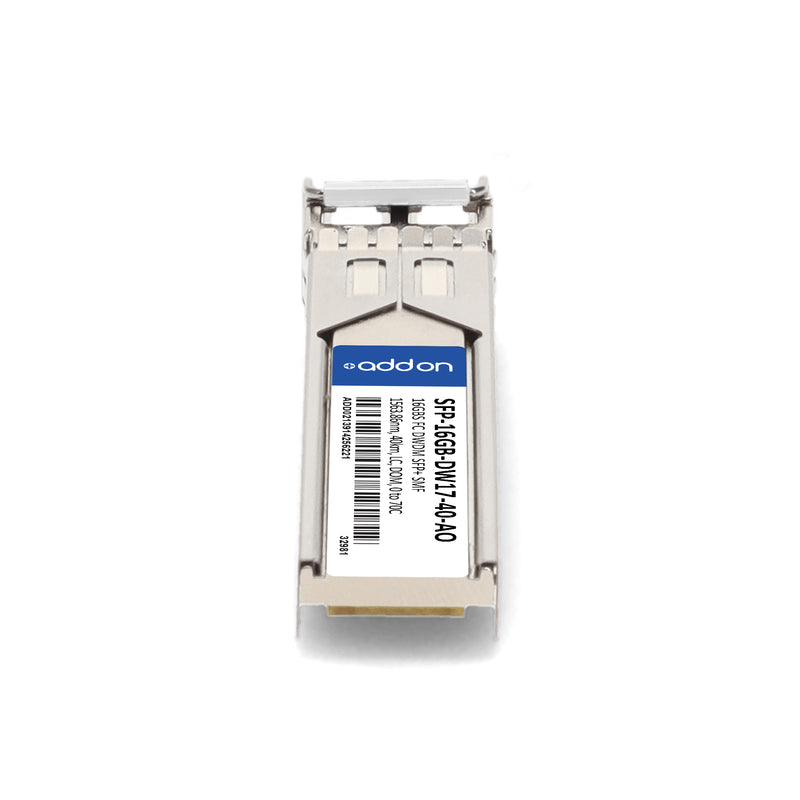

The AddOn SFP-16GB-DW17-40-AO is a high-performance, MSA-compliant 16GBase-DWDM Fibre Channel SFP+ transceiver designed for reliable long-distance data transmission over single-mode fiber (SMF). Operating at a 1563.86 nm wavelength (ITU Channel DW17, 100 GHz spacing), it delivers up to 40 km reach, making it ideal for metro, access, and enterprise networking environments.
Equipped with a cooled EML transmitter, PIN receiver, and duplex LC connector, this hot-pluggable transceiver supports 8x/10x Fibre Channel and 16G Ethernet applications. It features Digital Optical Monitoring (DOM) for real-time diagnostics, ensuring optimal performance and network reliability. Built to meet TAA requirements and RoHS standards, each unit undergoes rigorous serialization, data-traffic testing, and quality validation to ensure seamless integration and long-term dependability.
| Specification | Details |
|---|---|
| Part Number | SFP-16GB-DW17-40-AO |
| Form Factor | SFP+ |
| Data Rate | 4.25 – 14.025 Gbps |
| Application | 8x/10x Fibre Channel, 16G Ethernet |
| Wavelength | 1563.86 nm (ITU Channel DW17, 100 GHz) |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector | Duplex LC |
| Transmission Distance | Up to 40 km |
| Transmitter Type | Cooled EML |
| Receiver Type | PIN |
| Optical Output Power | -1 dBm to +3 dBm |
| Receiver Sensitivity | ≤ -14 dBm |
| Extinction Ratio | ≥ 8.2 dB |
| Side-Mode Suppression Ratio | ≥ 30 dB |
| Receiver Overload | 0.5 dBm |
| LOS Assert / De-assert | -28 dBm / -15 dBm |
| Operating Temperature | 0 °C to +70 °C (Commercial) |
| Storage Temperature | -40 °C to +85 °C |
| Power Supply Voltage | 3.135 V – 3.465 V |
| Power Consumption | ≤ 550 mA |
| Digital Diagnostics (DOM) | Supported |
| Compliance | SFF-8432, SFF-8472, MSA, FCC Part 15B, EN55022, IEC 60825-1/2, FDA 21CFR |
| ESD Protection | MIL-STD-883E Method 3015.4 |
| Hot-Pluggable | Yes |
| EMI Shielding | Metal Housing with Low EMI |
| TAA Compliant | Yes |
| RoHS Compliant | Yes |
| Warranty | Limited Lifetime Warranty |
