Description

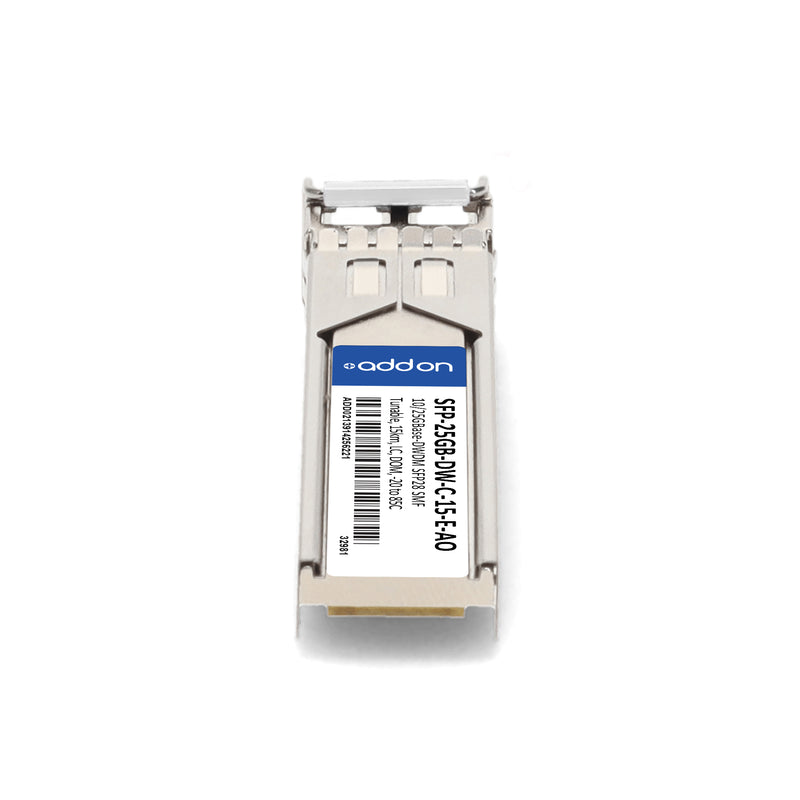

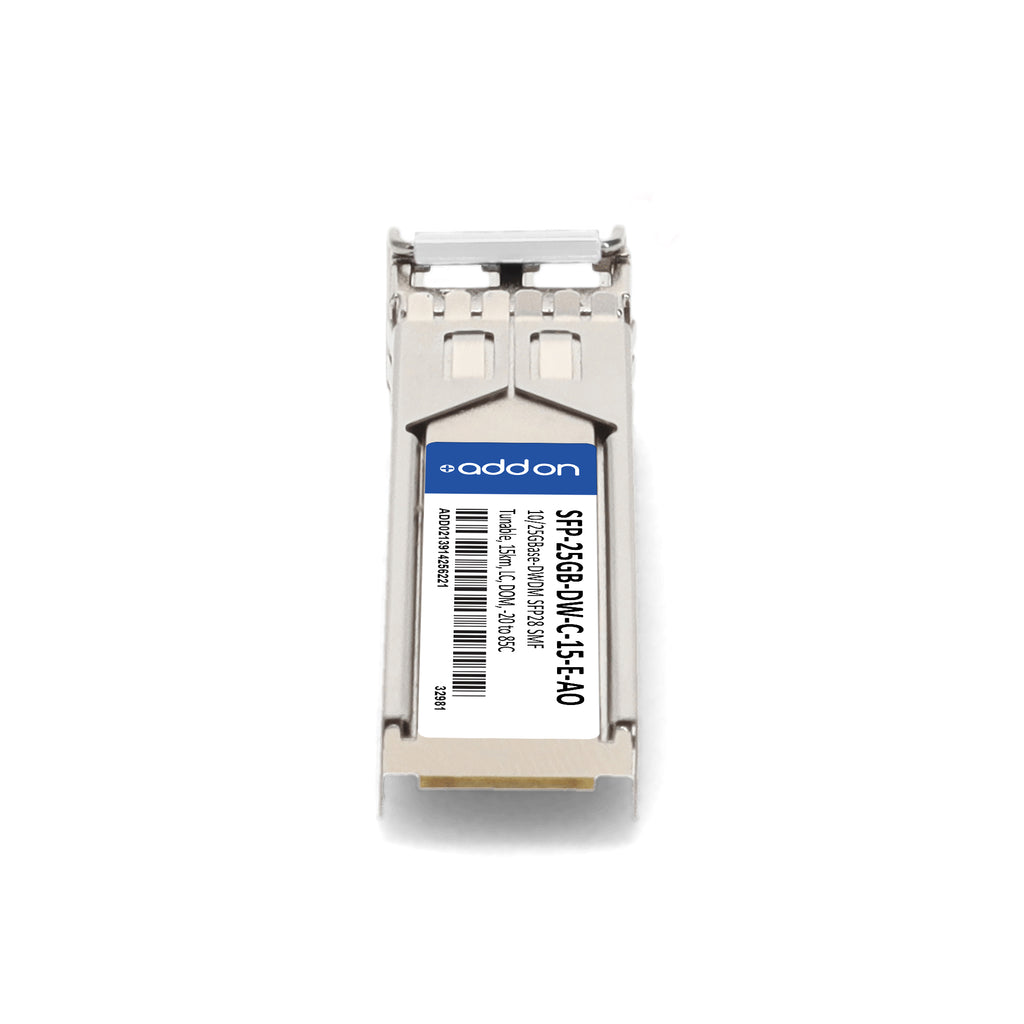

The AddOn SFP-25GB-DW-C-15-E-AO is a high-performance, MSA-compliant, dual-rate 10/25GBase-DWDM SFP28 transceiver designed for extended-range optical networks. Supporting tunable DWDM channels with 100 GHz spacing, it delivers reliable data transmission up to 15 km over single-mode fiber (SMF) using a duplex LC connector. The module supports data rates of 24.33024 G/25.78125 Gbps with FEC and 9.8304 G/10.3125 Gbps for 10 GbE applications. With Digital Optical Monitoring (DOM) for real-time diagnostics, excellent ESD protection, and hot-pluggable design, it ensures seamless integration into metro, enterprise, and access networks. Operating in an extended temperature range of -20 °C to 85 °C, this TAA-compliant transceiver is ideal for demanding, high-capacity environments requiring tunable DWDM flexibility and robust performance.
| Parameter | Specification |
|---|---|
| SKU | SFP-25GB-DW-C-15-E-AO |
| Form Factor | SFP28 |
| Data Rate | 10G / 25G Dual-Rate (9.8304 G, 10.1376 G, 10.3125 Gbps / 24.33024 G, 25.78125 Gbps with FEC) |
| Reach | Up to 15 km |
| Wavelength Range | Tunable 1528.77 nm – 1566.31 nm (191.3 – 196.0 THz) |
| Channel Spacing | 100 GHz DWDM |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector | Duplex LC |
| Transmitter Output Power | 0 – 4 dBm |
| Receiver Sensitivity | ≤ -14 dBm (5e-5 FEC) |
| Receiver Saturation | -2 dBm |
| Extinction Ratio | ≥ 3.5 dB |
| Side-Mode Suppression Ratio | ≥ 30 dB |
| Power Supply Voltage | 3.135 – 3.465 V |
| Power Dissipation | < 2.5 W |
| Digital Diagnostics (DOM) | Supported |
| Operating Temperature | -20 °C – 85 °C |
| Compliance | MSA, TAA, SFF-8432, SFF-8472, FCC Part 15, EN55022, IEC 60825-1/2, RoHS 2.0 |
| Applications | Access, Metro, Enterprise Networks |
| Hot Pluggable | Yes |
| ESD/EMI Protection | MIL-STD-883E, IEC 61000-4-3 |
