Description

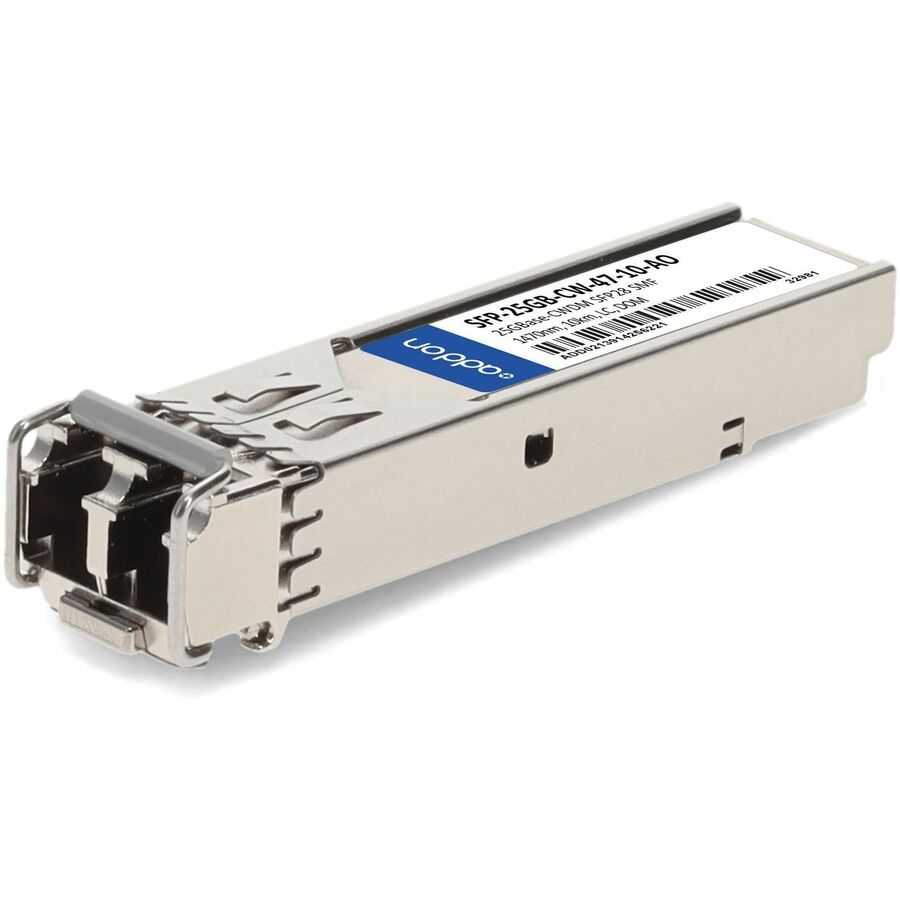

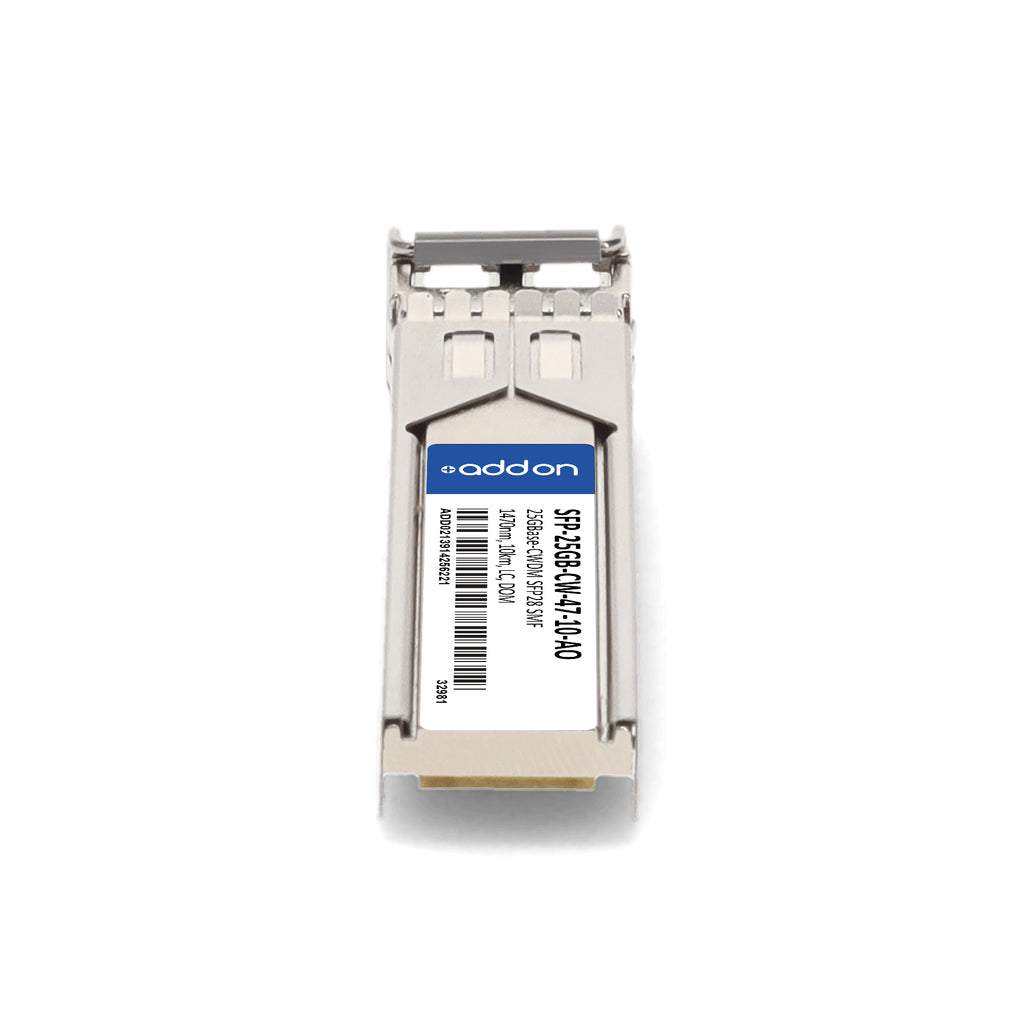

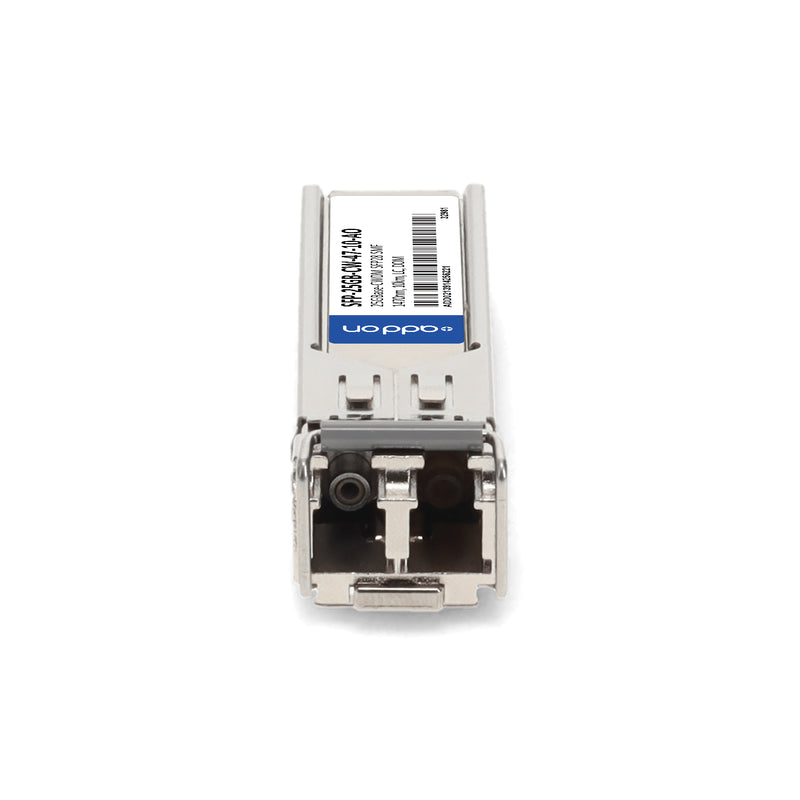

The AddOn SFP-25GB-CW-47-10-AO is a high-performance, MSA-compliant 25GBase-CWDM SFP28 transceiver designed to deliver up to 25.78 Gbps bi-directional data rates over single-mode fiber (SMF) at distances up to 10 km. Operating on a 1470 nm wavelength and equipped with a duplex LC connector, this module is ideal for 25 Gigabit Ethernet, mobile fronthaul (CPRI/OBSAI), and access, metro, and enterprise network applications. It features a CWDM-rated EML transmitter and APD receiver, built-in dual CDR with bypass function, and digital optical monitoring (DOM) for real-time diagnostics. With full compliance to SFF-8431, SFF-8432, and SFF-8472 standards and TAA regulations, this transceiver ensures seamless network integration, reliable performance, and long-term support backed by AddOn’s industry-leading quality standards.
| Specification | Details |
|---|---|
| Model / SKU | SFP-25GB-CW-47-10-AO |
| Form Factor | SFP28 |
| Data Rate | Up to 25.78 Gbps |
| Transmission Distance | Up to 10 km |
| Wavelength | 1470 nm (CWDM) |
| Fiber Type | Single-Mode Fiber (SMF), 9/125 µm |
| Connector | Duplex LC |
| Transmitter Type | CWDM-rated EML |
| Receiver Type | APD |
| Digital Diagnostics (DOM) | Supported |
| Power Supply Voltage | +3.3 V |
| Power Consumption | ≤ 1.8 W |
| Operating Temperature Range | 0 °C to 70 °C |
| Extinction Ratio | ≥ 4.5 dB |
| Receiver Sensitivity | ≤ –19 dBm |
| Maximum Receiver Overload | –4 dBm |
| Optical Return Loss Tolerance | ≥ 21 dB |
| Compliance Standards | MSA, SFF-8431, SFF-8432, SFF-8472, IEEE 802.3 |
| Safety & Regulatory | Class 1 Laser, RoHS 2.0, FDA 21CFR, EN 60950-1, IEC 60825-1 |
| Applications | 25 Gigabit Ethernet, Access, Metro, Enterprise, Mobile Fronthaul (CPRI/OBSAI) |
| Warranty | Limited Lifetime Warranty |
| Compliance | TAA Compliant |
