Description

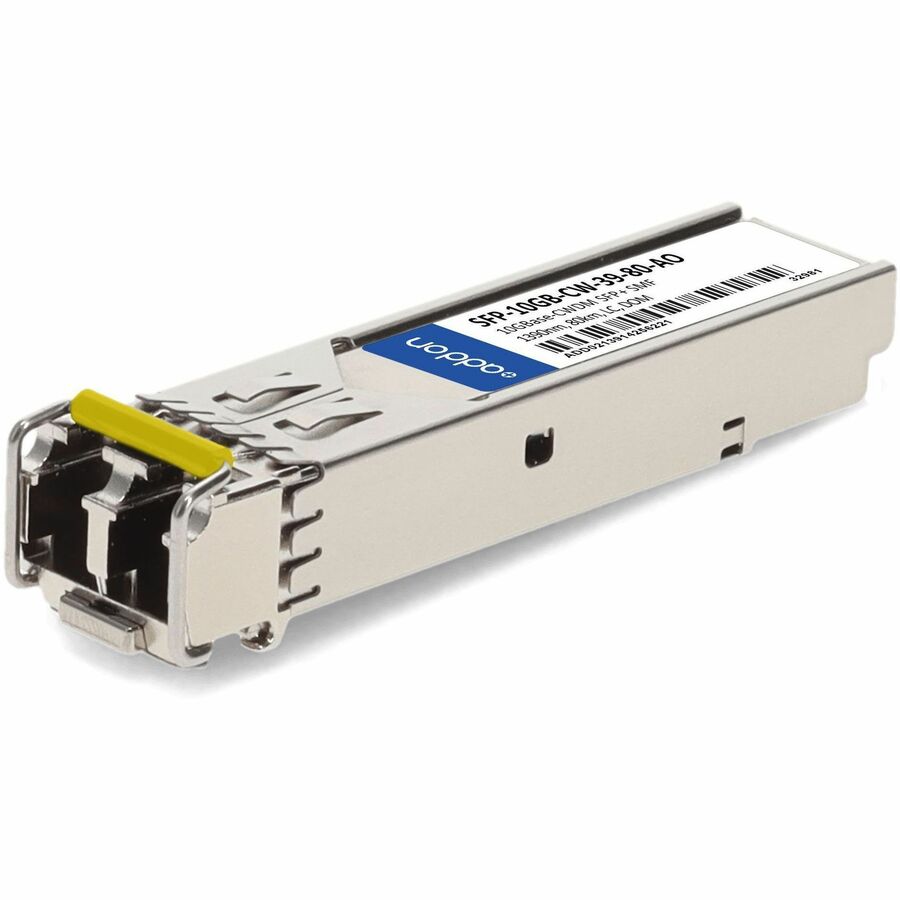

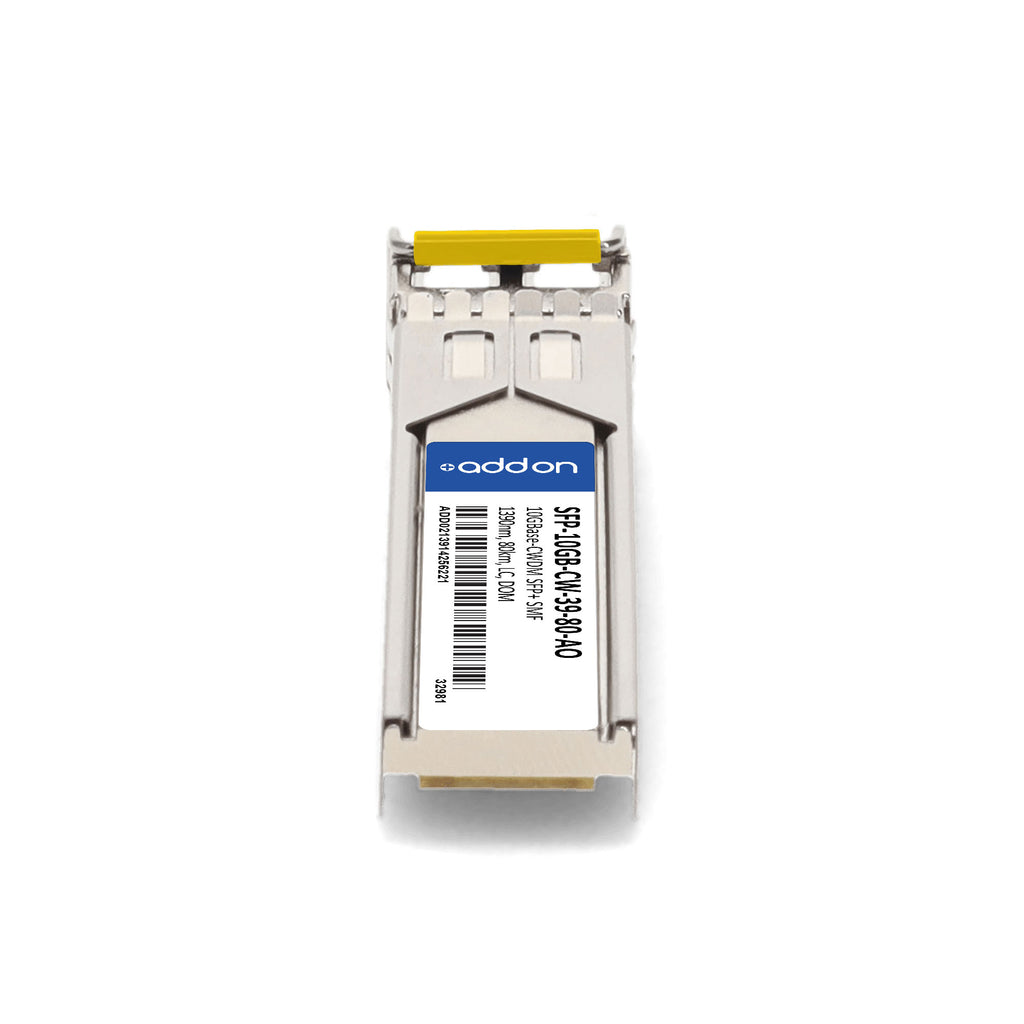

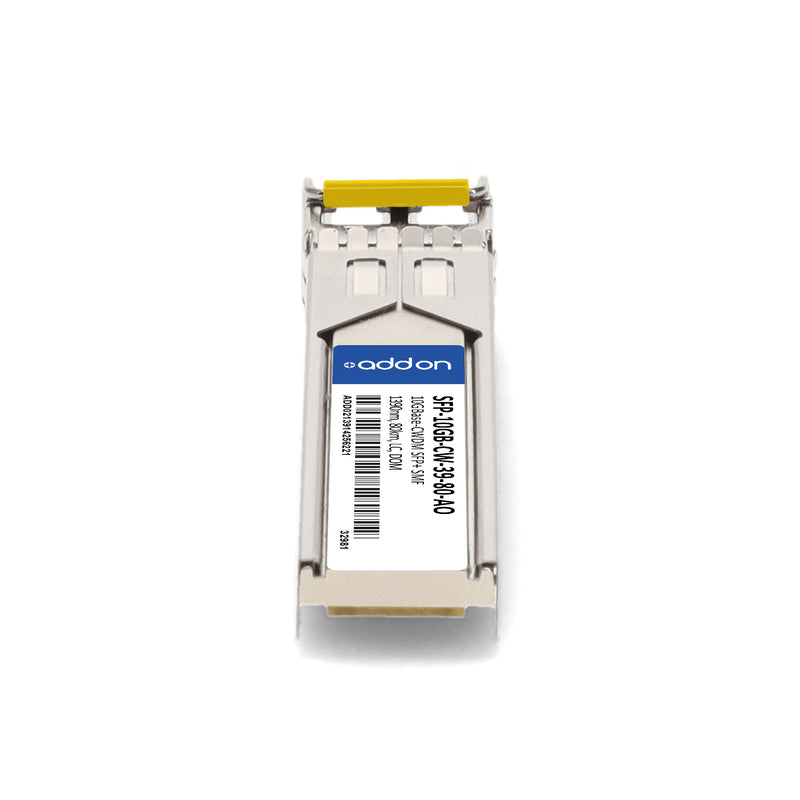

The AddOn SFP-10GB-CW-39-80-AO is a high-performance, MSA-compliant 10GBase-CWDM SFP+ transceiver designed for reliable long-distance data transmission. Supporting up to 80 km over single-mode fiber (SMF), it operates at a 1390nm wavelength and connects via a duplex LC interface.
Engineered with an uncooled DFB transmitter and an APD receiver, this transceiver ensures excellent stability and signal integrity. It provides Digital Optical Monitoring (DOM) for real-time diagnostics of key operating parameters, helping maintain optimal network performance.
With compliance to SFF-8432 and SFF-8472 standards, RoHS, and TAA requirements, this transceiver is suitable for 10G Ethernet, Fibre Channel, Access, Metro, and Enterprise applications, as well as mobile fronthaul deployments. Backed by AddOn’s rigorous testing and limited lifetime warranty, it offers a cost-effective and reliable networking solution.
| Specification | Details |
|---|---|
| Form Factor | SFP+ (Hot Pluggable) |
| Data Rate | 10GBase-CWDM, up to 11.3 Gbps |
| Wavelength | 1390 nm |
| Distance | Up to 80 km |
| Connector | Duplex LC |
| Fiber Type | Single-mode Fiber (SMF) |
| Transmitter Type | Uncooled DFB |
| Receiver Type | APD |
| DOM Support | Yes |
| Operating Case Temperature | 0°C to 70°C |
| Power Consumption | 1.2 W (typical) |
| Power Supply Voltage | 3.15 – 3.43 V |
| Receiver Sensitivity | ≤ -21 dBm |
| Receiver Overload | -6 dBm |
| Optical Power Output | 2 to 5 dBm |
| Standards Compliance | SFF-8432, SFF-8472, RoHS, TAA |
| Warranty | Limited Lifetime Warranty |
