Description

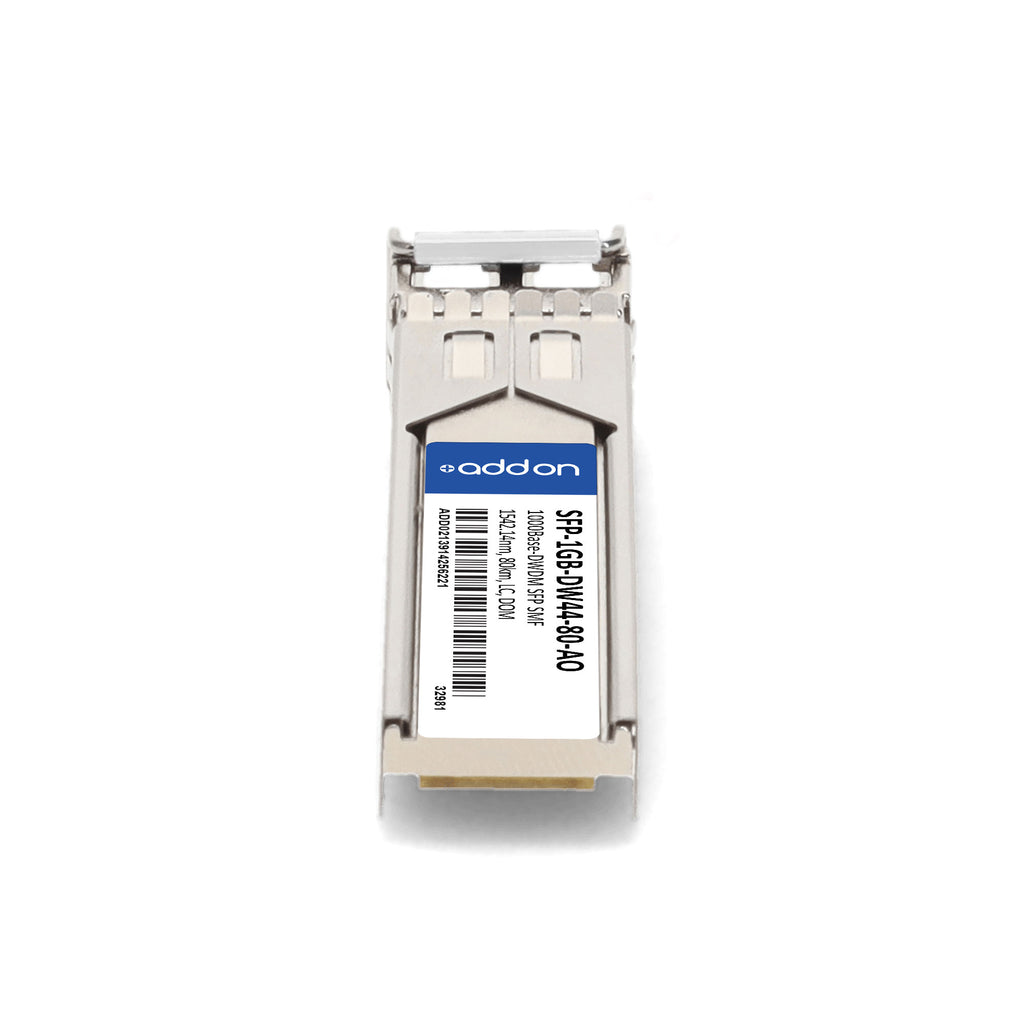

The AddOn SFP-1GB-DW44-80-AO is a high-performance, MSA and TAA compliant 1000Base-DWDM SFP transceiver designed for demanding network environments. Operating at a wavelength of 1542.14nm, it delivers reliable data throughput up to 80 km over single-mode fiber (SMF) using a duplex LC connector.
Built to the highest industry standards, this hot-pluggable module supports digital optical monitoring (DOM) for real-time diagnostics, ensuring network stability and simplified management. With RoHS compliance, strong ESD protection, and FCC/IEC certifications, it guarantees durability and interoperability across Gigabit Ethernet and Fibre Channel applications.
Ideal for access, metro, and enterprise networks, this transceiver integrates seamlessly into existing infrastructures and comes backed by AddOnās limited lifetime warranty for guaranteed reliability.
| Specification | Details |
|---|---|
| Form Factor | SFP (Small Form Factor Pluggable) |
| Data Rate | 1.25 Gbps (1000Base-DWDM) |
| Wavelength | 1542.14 nm (Channel 44, 100GHz ITU Grid) |
| Connector Type | Duplex LC |
| Fiber Type | Single-Mode Fiber (SMF) |
| Maximum Reach | 80 km |
| Optical Power Output | 0 to +5 dBm |
| Receiver Sensitivity | ā¤ -24 dBm |
| Receiver Overload | -10 dBm |
| Operating Temperature | 0Ā°C to 70Ā°C (Commercial) |
| Storage Temperature | -40Ā°C to 85Ā°C |
| Power Supply Voltage | 3.15V ā 3.45V |
| Power Consumption | 300 mA |
| Standards Compliance | INF-8074, SFF-8472, RoHS 2.0, FCC Part 15, EN55022:2010, IEC 60825-1/2 |
| Digital Diagnostics (DOM) | Supported |
| Hot Pluggable | Yes |
| Warranty | Limited Lifetime Warranty |
