Description

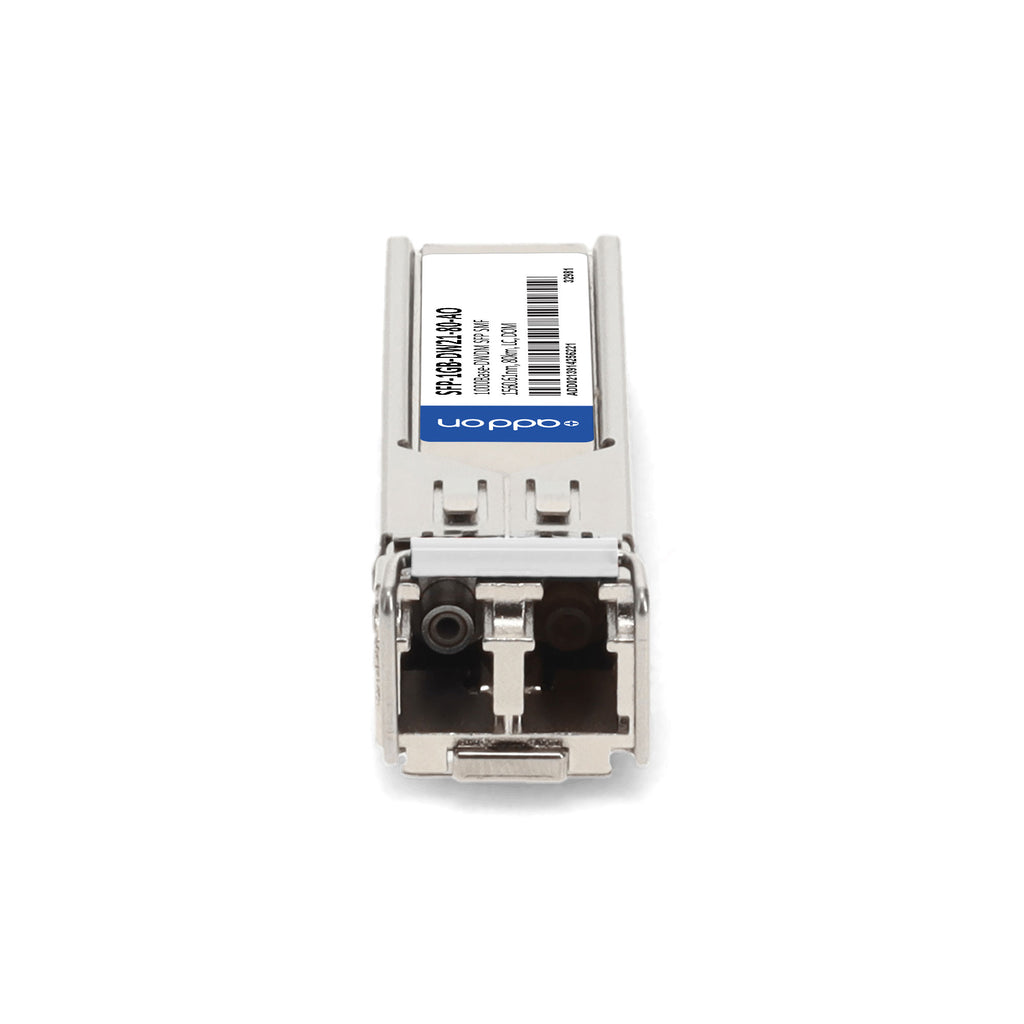

The AddOn SFP-1GB-DW21-80-AO is a high-performance, MSA-compliant 1000Base-DWDM SFP transceiver that delivers reliable Gigabit Ethernet and Fibre Channel connectivity up to 80 km over single-mode fiber (SMF). Operating at a wavelength of 1560.61 nm, this module features a duplex LC connector, hot-pluggable design, and digital optical monitoring (DOM) support for real-time diagnostics.
Built for long-distance metro, enterprise, and access networks, the transceiver ensures seamless integration through rigorous application testing and compliance with INF-8074 and SFF-8472 standards. With excellent ESD protection, RoHS compliance, and TAA approval, this module is a trusted, cost-effective alternative backed by AddOn’s limited lifetime warranty.
| Specification | Details |
|---|---|
| Form Factor | SFP (Small Form-Factor Pluggable) |
| Data Rate | 1.25 Gbps (1000Base-DWDM) |
| Wavelength | 1560.61 nm (ITU Channel 21) |
| Connector Type | Duplex LC |
| Cable Type | Single-mode Fiber (SMF) |
| Max Distance | 80 km |
| Channel Spacing | 100 GHz |
| DOM Support | Yes (Digital Optical Monitoring) |
| Transmitter Power | 0 to +5 dBm |
| Receiver Sensitivity | -24 dBm |
| Receiver Overload | -10 dBm |
| Operating Temperature | 0°C to 70°C (Commercial) |
| Storage Temperature | -40°C to 85°C |
| Power Supply Voltage | 3.15V – 3.45V |
| Power Consumption | ≤ 300 mA |
| Compliance | INF-8074, SFF-8472, RoHS, TAA, FCC Part 15, IEC 60825-1,2 |
| Warranty | Limited Lifetime Warranty |
