Description

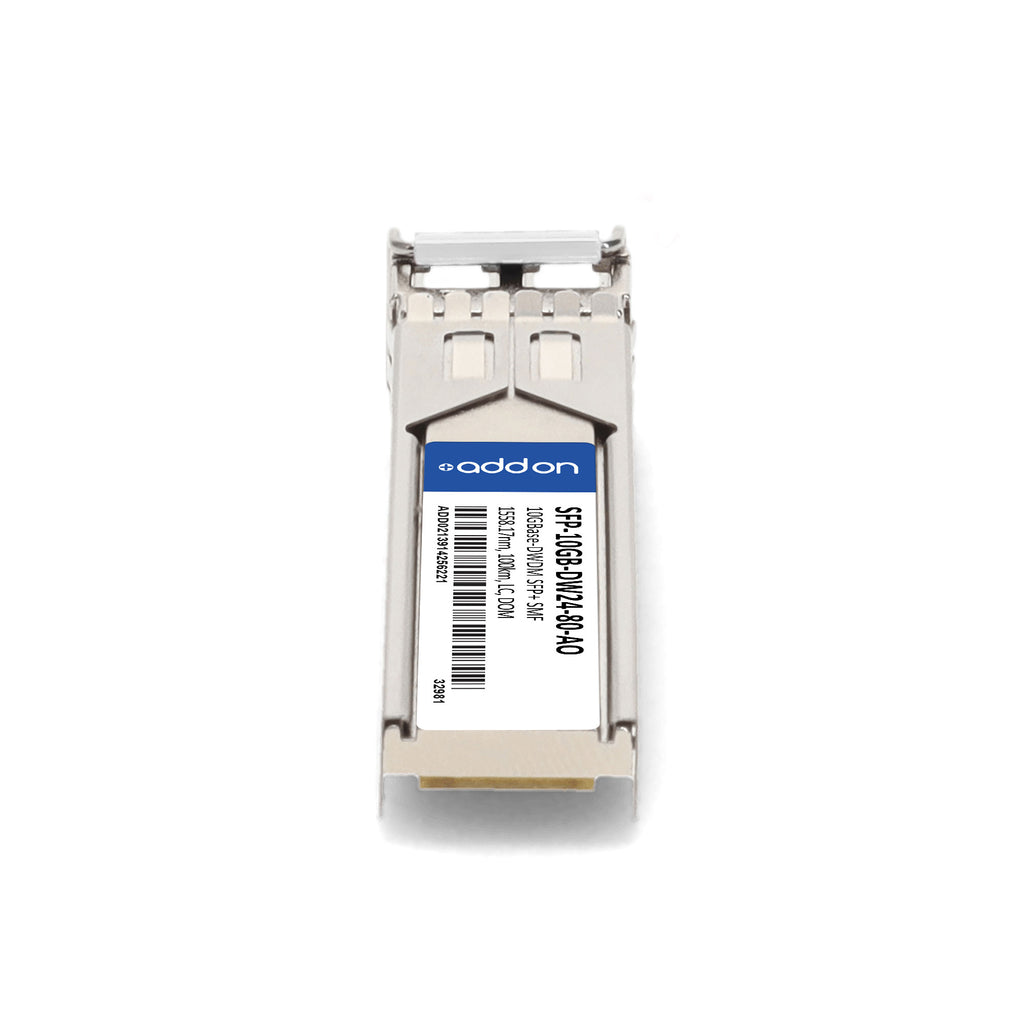

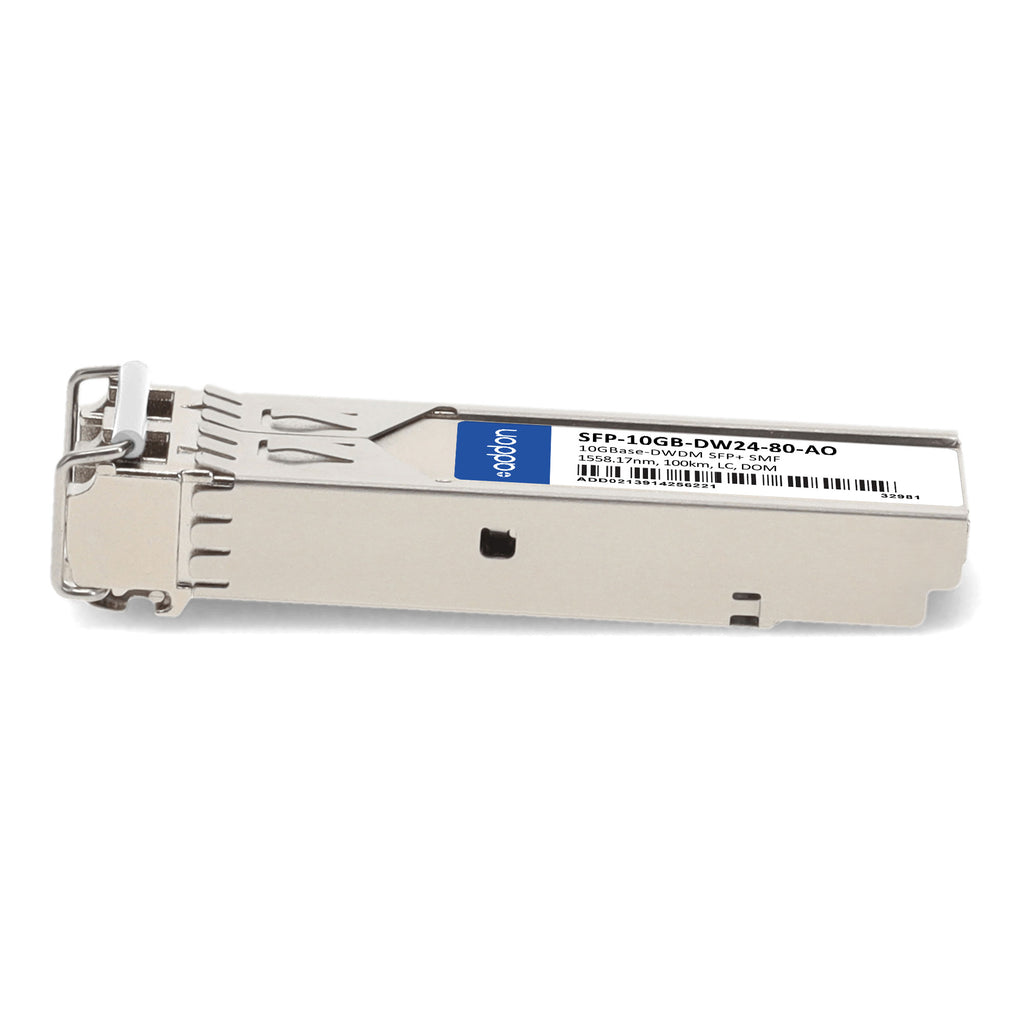

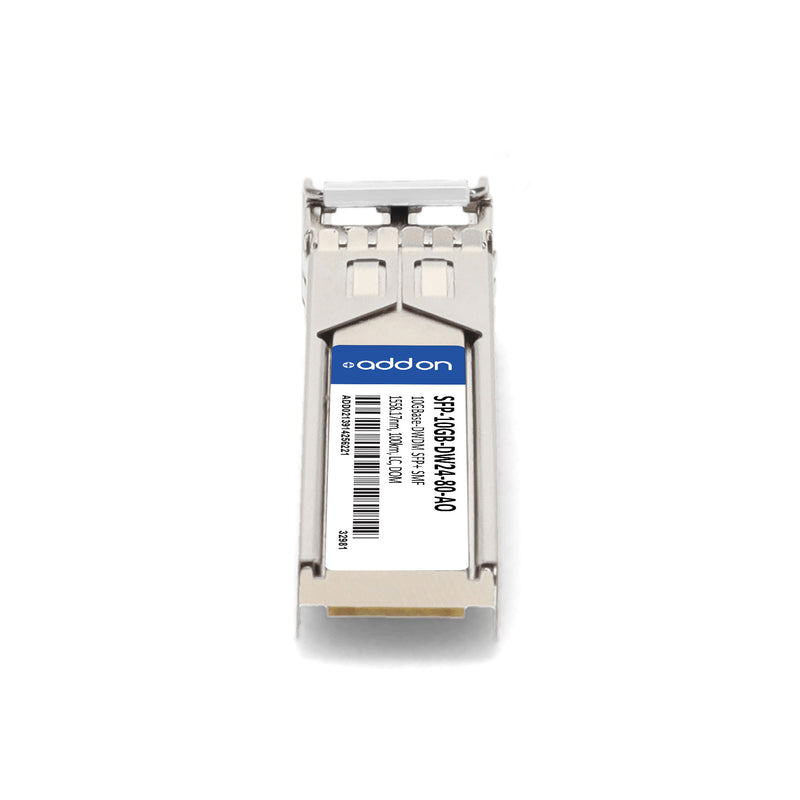

The AddOn SFP-10GB-DW24-80-AO is a high-performance, MSA-compliant 10GBase-DWDM SFP+ transceiver designed for long-haul data transmission. Operating at a 1558.17nm wavelength (ITU Channel DW24), it supports distances up to 80km over single-mode fiber (SMF) with an LC duplex connector.
Built with Digital Optical Monitoring (DOM), this hot-pluggable module enables real-time monitoring of operating parameters for reliable network performance. It complies with SFF-8432 and SFF-8472 standards, offers excellent ESD protection, and ensures low EMI for robust deployment.
Fully RoHS compliant, lead-free, and TAA-compliant, the SFP-10GB-DW24-80-AO integrates seamlessly into enterprise, data center, and service provider networks. Each transceiver is uniquely serialized, rigorously tested, and backed by AddOn’s limited lifetime warranty.
| Specification | Details |
|---|---|
| Form Factor | SFP+ (Small Form-Factor Pluggable Plus) |
| Data Rate | Up to 11.3 Gbps |
| Application | 10GBase-DWDM, 8x/10x Fibre Channel, 10x Gigabit Ethernet |
| Wavelength (ITU Channel) | 1558.17nm (DW24, 100GHz spacing) |
| Transmission Distance | Up to 80 km over SMF |
| Connector Type | Duplex LC |
| Fiber Type | Single-Mode Fiber (SMF) |
| Digital Diagnostics (DOM) | Supported |
| Optical Output Power | +1.0 to +4.0 dBm |
| Receiver Sensitivity | -26 dBm (typical) |
| Receiver Overload | -7 dBm |
| Operating Temperature | 0°C to 70°C (Commercial) |
| Storage Temperature | -40°C to 85°C |
| Power Dissipation | 1.0 – 1.5 W |
| Supply Voltage | 3.135V – 3.465V |
| Compliance | MSA, TAA, RoHS 2.0, SFF-8432, SFF-8472 |
| Certifications | FCC Part 15, EN55022:2010, FDA 21CFR, IEC 60825-1/2 (Laser Safety) |
| Warranty | Limited Lifetime Warranty |
