Description

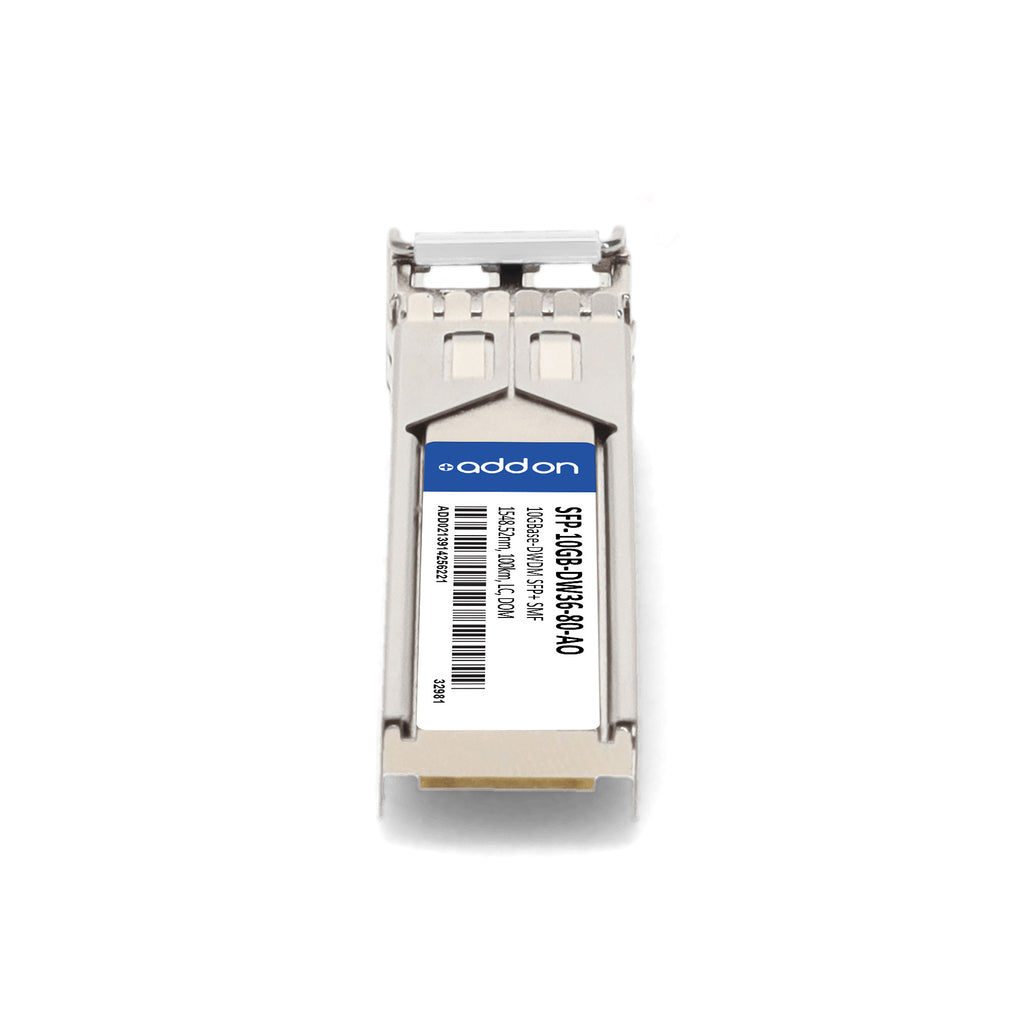

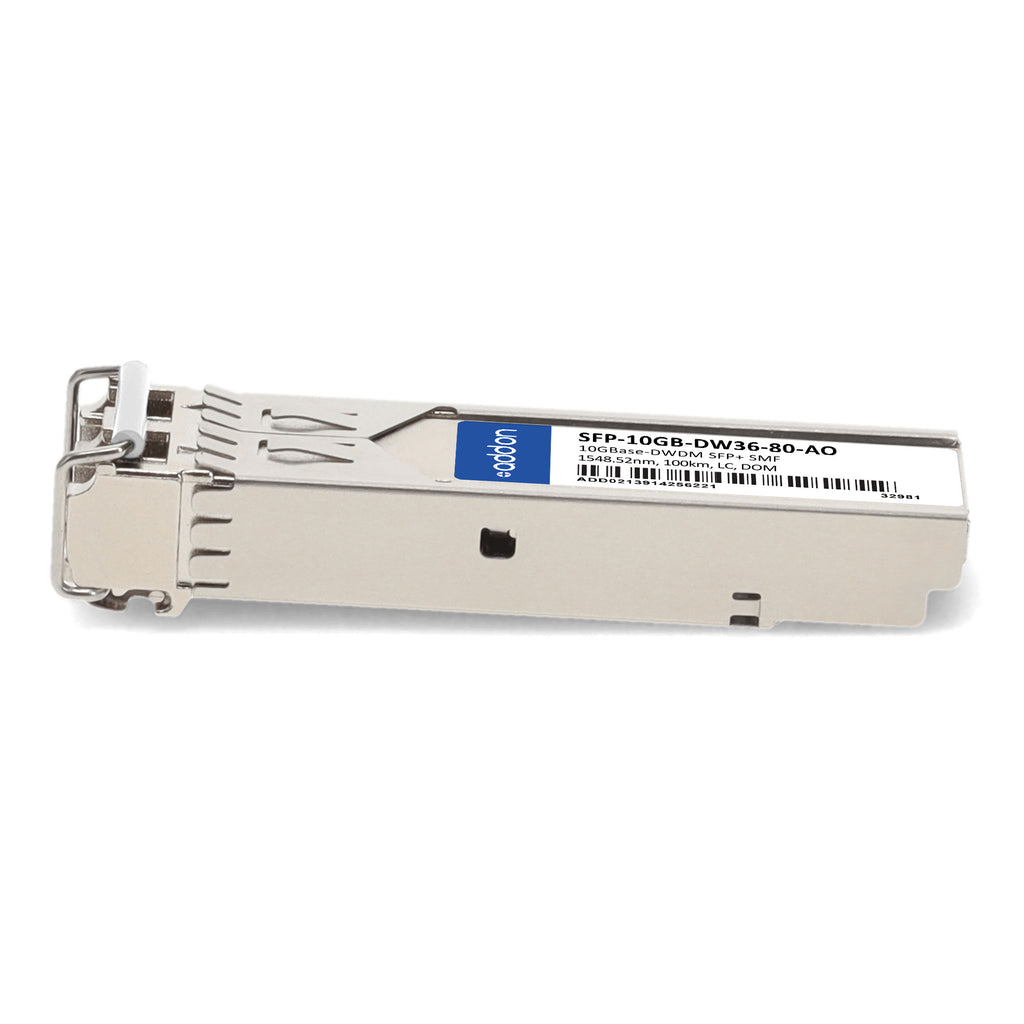

The AddOn SFP-10GB-DW36-80-AO is a high-performance, MSA and TAA compliant 10GBase-DWDM SFP+ transceiver designed for reliable data transmission over single-mode fiber (SMF) up to 80 km. Operating on ITU-T Channel 36 (1548.52nm), this hot-pluggable module features a temperature-stabilized EML transmitter, PIN receiver, duplex LC connector, and digital optical monitoring (DOM) for real-time diagnostics.
Built to rigorous quality standards, it supports applications in 10G Ethernet, Fibre Channel, and enterprise networking environments. The module is RoHS compliant, lead-free, and comes with excellent ESD protection and low EMI metal housing, ensuring durability and performance.
| Specification | Details |
|---|---|
| Form Factor | SFP+ (MSA Compliant) |
| Data Rate | 10.3125 Gb/s |
| Wavelength (Channel 36) | 1548.52 nm (193.6 THz) |
| Distance / Reach | Up to 80 km over SMF |
| Optical Interface | Duplex LC Connector |
| Transmitter Type | Temperature-stabilized EML |
| Receiver Type | PIN Photodiode |
| Optical Power (Tx) | +1.0 to +4.0 dBm |
| Receiver Sensitivity (Rx) | -26 dBm |
| Receiver Overload | -7.0 dBm |
| Power Budget | 27 dB |
| Operating Temperature | 0°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Power Supply Voltage | 3.135V – 3.465V |
| Power Dissipation | 1.8W (typical) |
| Compliance | SFF-8432, SFF-8472, FCC Part 15, EN60950-1, IEC 60825-1/2, RoHS, TAA |
| Applications | 10G Ethernet over DWDM, 8G/10G Fibre Channel, Access & Enterprise Networks |
| DOM Support | Yes (Digital Optical Monitoring) |
| Connector Type | LC Duplex |
| Warranty | Limited Lifetime Warranty |
