Description

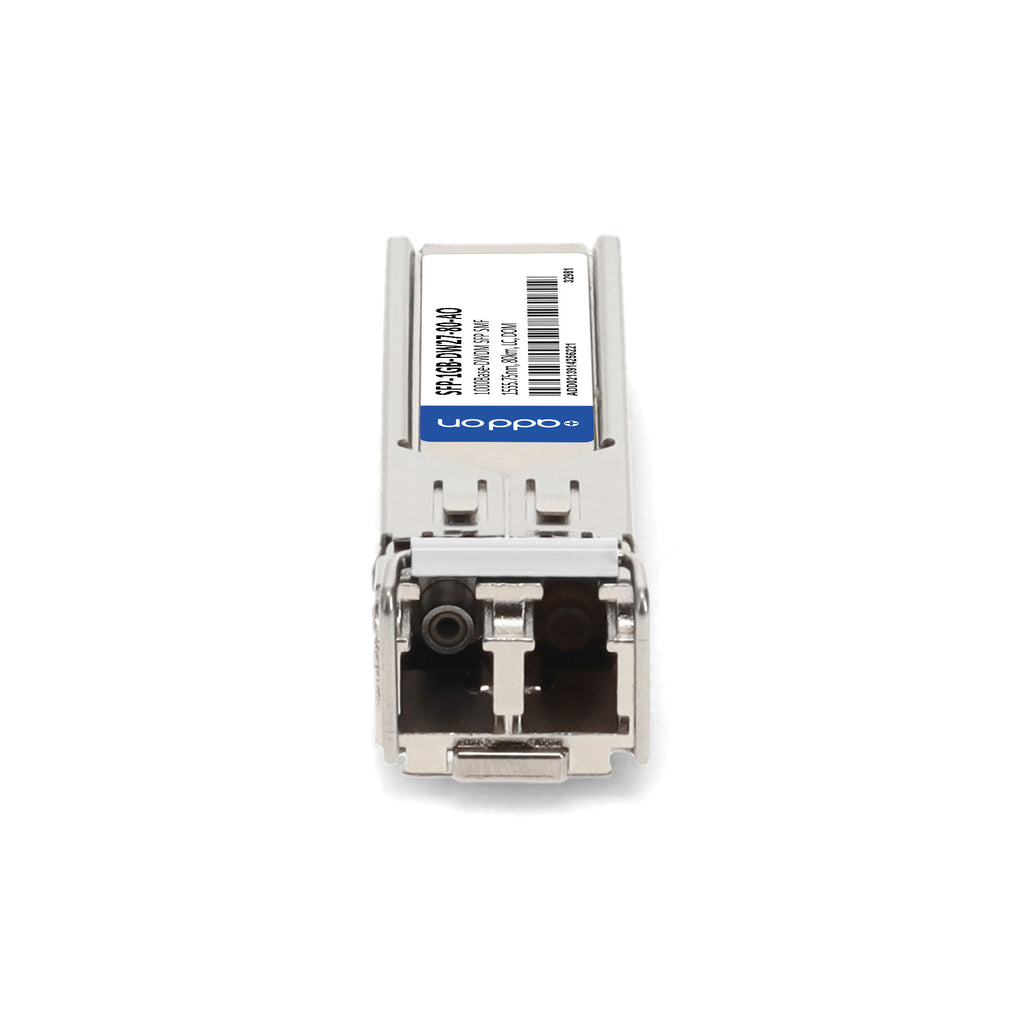

The AddOn SFP-1GB-DW27-80-AO is an MSA and TAA compliant 1000Base-DWDM SFP transceiver designed for reliable, long-distance networking applications. Operating over single-mode fiber (SMF) with a wavelength of 1555.75nm, it supports transmission distances up to 80 km via a duplex LC connector.
This hot-pluggable transceiver offers digital optical monitoring (DOM) for real-time performance insights and ensures seamless network integration through rigorous traffic and application testing. With excellent ESD protection, low EMI, and RoHS compliance, it delivers dependable performance for Gigabit Ethernet, Fibre Channel, and metro/enterprise networks. Backed by a limited lifetime warranty, this transceiver combines durability, compliance, and reliability in one cost-effective solution.
| Specification | Details |
|---|---|
| Form Factor | SFP (Small Form-Factor Pluggable) |
| Data Rate | 1.25 Gbps (1000Base-DWDM) |
| Wavelength | 1555.75 nm (ITU Channel 27, 100GHz spacing) |
| Reach/Distance | Up to 80 km over SMF |
| Connector Type | Duplex LC |
| Compliance | MSA INF-8074, SFF-8472, TAA Compliant |
| Fiber Type | Single-Mode Fiber (SMF) |
| DOM Support | Yes (Digital Optical Monitoring) |
| Operating Temperature | 0°C to 70°C (Commercial) |
| Optical Power Output | 0 to +5 dBm |
| Receiver Sensitivity | ≤ -24 dBm |
| Receiver Overload | -10 dBm |
| Power Supply Voltage | 3.15V – 3.45V |
| Power Consumption | ≤ 300 mA |
| Regulatory | RoHS, FCC Part 15, EN55022:2010, IEC 60825-1/2 |
| Warranty | Limited Lifetime |
