Description

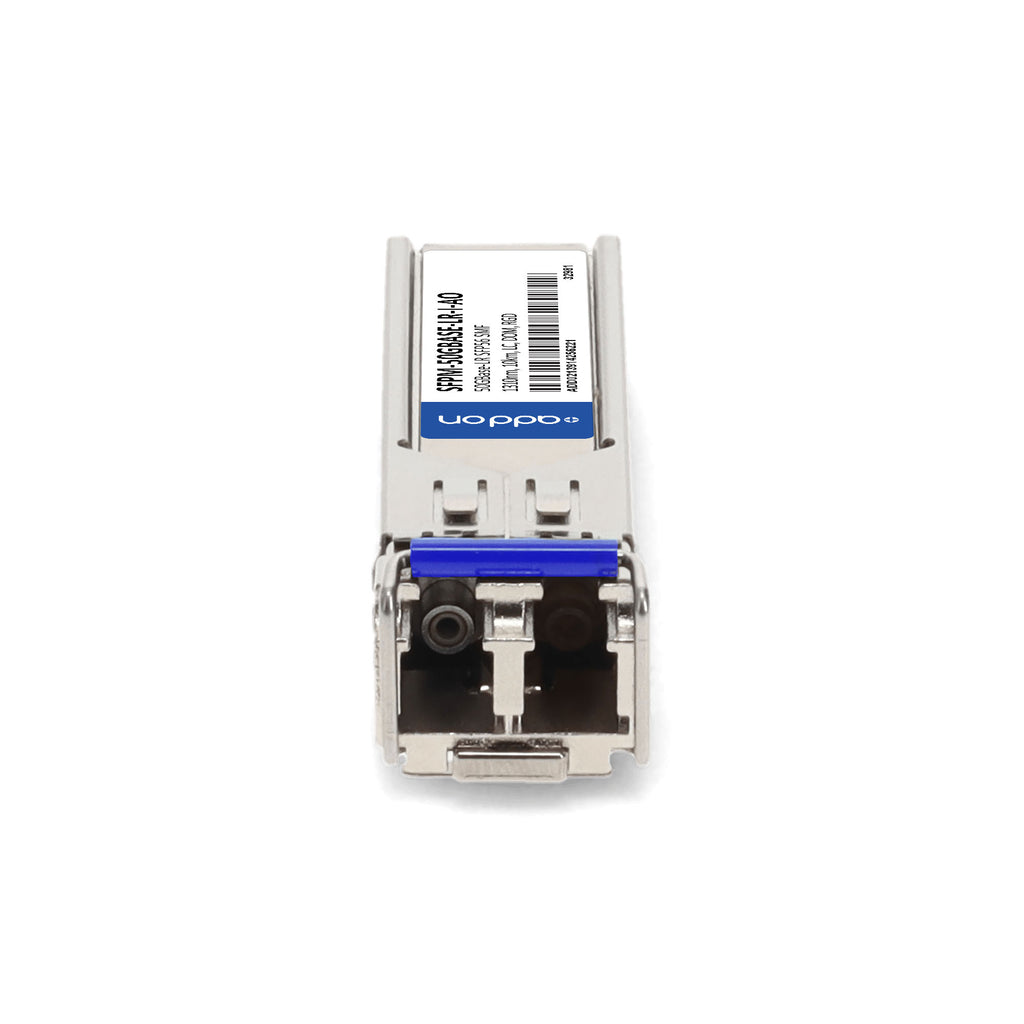

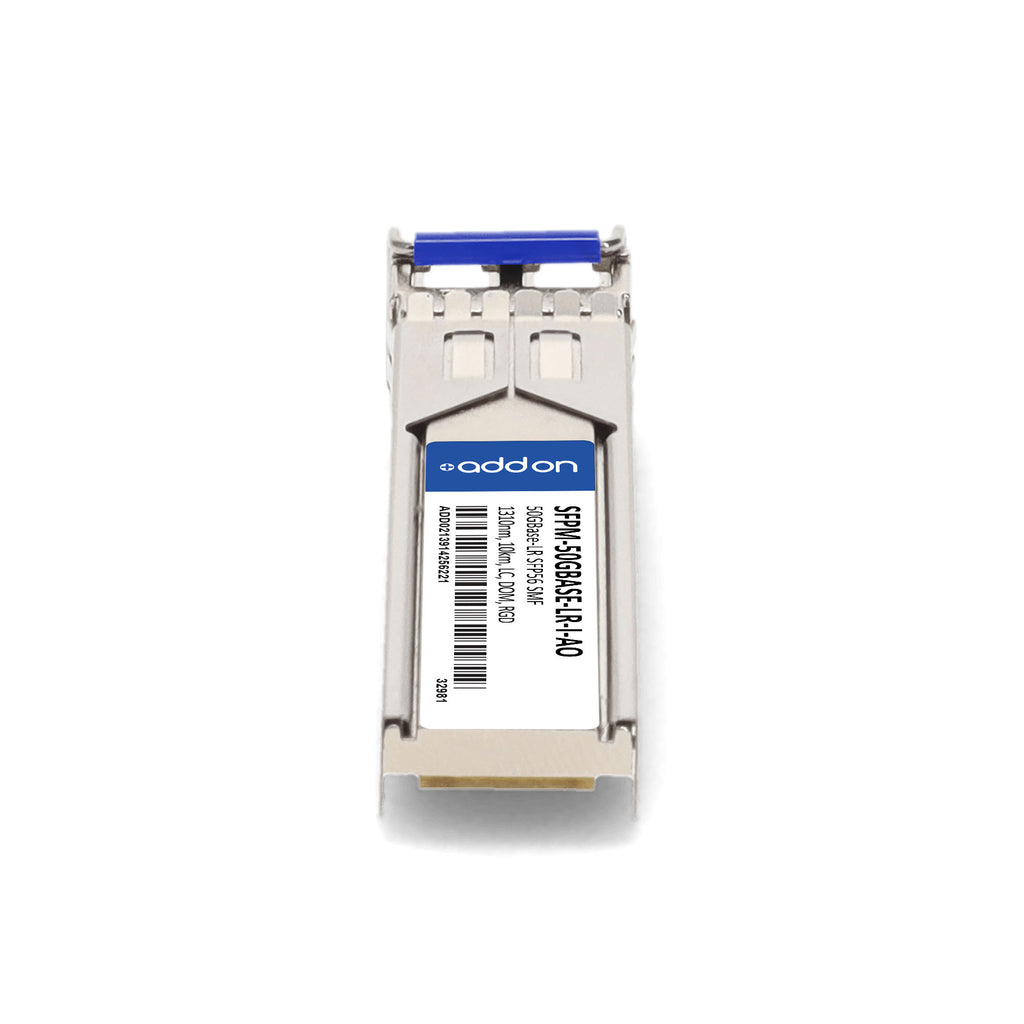

The AddOn SFPM-50GBASE-LR-I-AO is a high-performance, multi-rate SFP56 optical transceiver designed to deliver reliable 50GBase-LR Ethernet connectivity over single-mode fiber (SMF) at distances up to 10 km. Operating at a 1310 nm wavelength and featuring a duplex LC connector, it supports 10 Gbps, 25 Gbps, and 50 Gbps data rates, making it ideal for scalable access, enterprise, and data center applications.
Built to MSA standards and compliant with the Trade Agreements Act (TAA), this transceiver includes Digital Optical Monitoring (DOM) for real-time performance diagnostics and ensures seamless network integration with its uniquely serialized design and rigorous testing. With an industrial temperature range of -40 °C to +85 °C, a built-in DSP, and Class 1 laser safety certification, it provides exceptional reliability and performance even in demanding environments.
| Specification | Details |
|---|---|
| Form Factor | SFP56 |
| Data Rate | 10.3125 – 53.125 Gbps (Multi-Rate 10G/25G/50G) |
| Interface | Duplex LC |
| Media Type | Single-Mode Fiber (SMF) |
| Wavelength | 1310 nm |
| Max Distance | Up to 10 km |
| Transmitter Type | Cooled EML |
| Receiver Type | PIN Photodiode |
| Digital Diagnostics (DOM) | Supported |
| Optical Power (50G PAM4, avg.) | -4.5 dBm to +4.2 dBm |
| Receiver Sensitivity (50G avg.) | ≤ -10.8 dBm |
| Extinction Ratio | ≥ 3.5 dB |
| Power Supply Voltage | +3.3 V |
| Power Consumption | ≤ 2.5 W |
| Operating Temperature | -40 °C – +85 °C (Industrial) |
| Compliance | SFF-8431, SFF-8472, MSA, TAA, RoHS 2.0 |
| Laser Safety | Class 1 per FDA/CDRH & IEC 60825-1,-2 |
| EMI/EMC | FCC Part 15 Subpart B, EN55022:2010 |
| Applications | 50G Ethernet, Access Networks, Enterprise Networking |
