Description

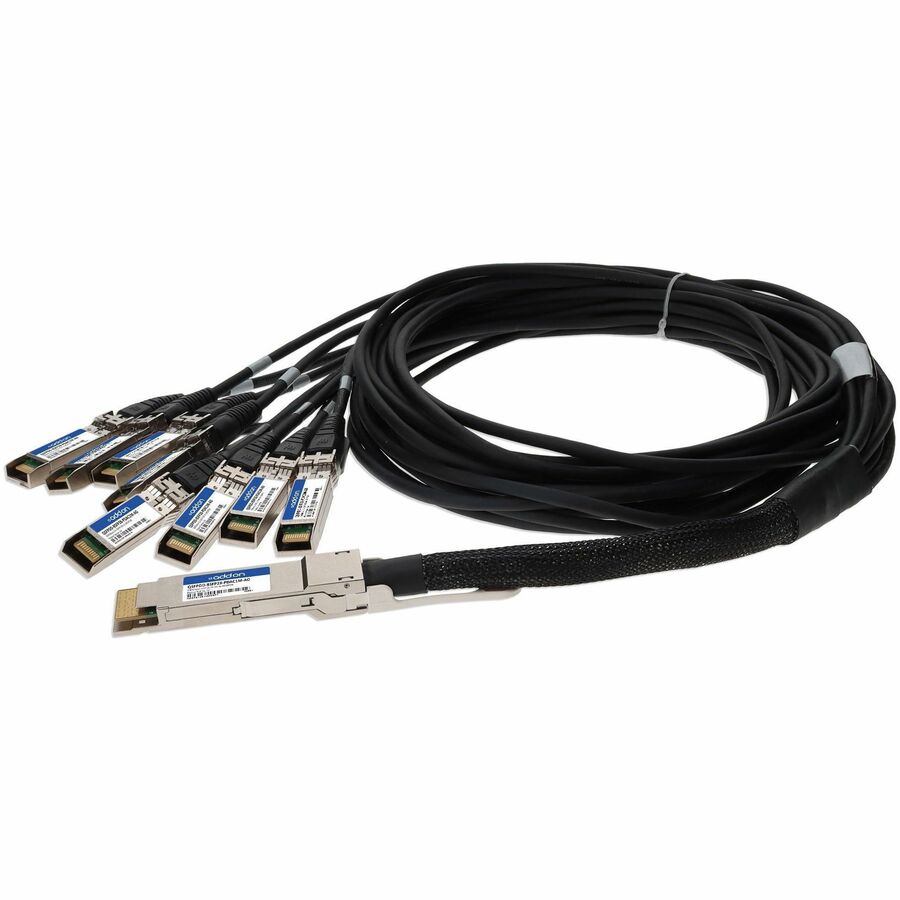

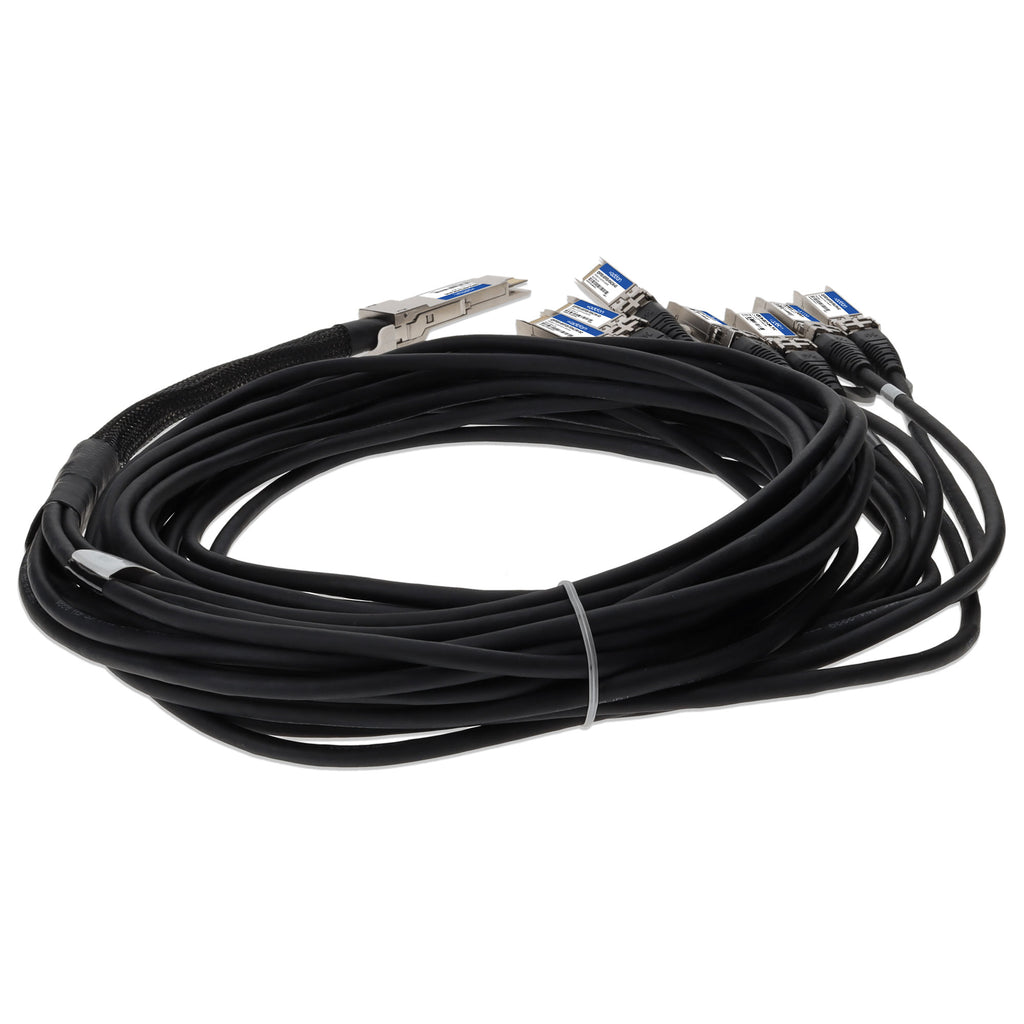

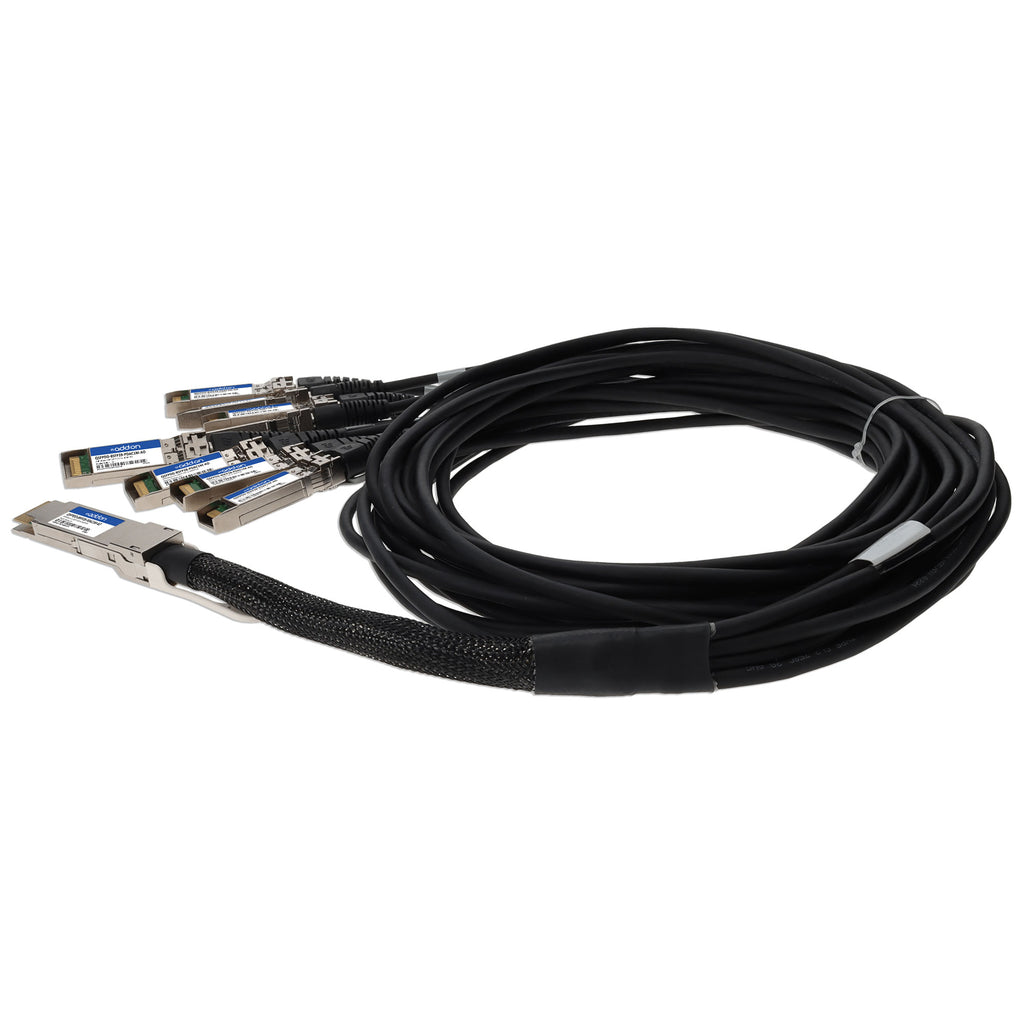

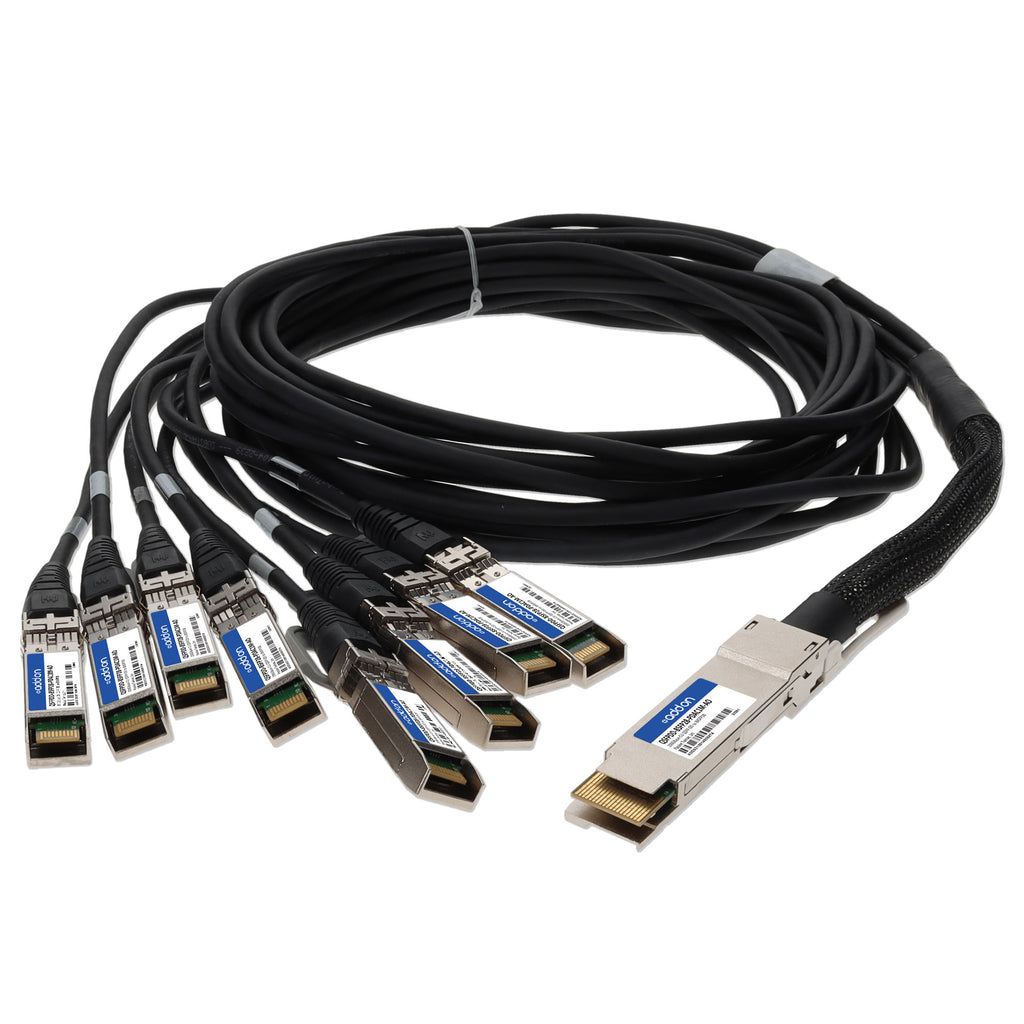

The AddOn QSFPDD-8SFP28-PDAC1M-AO is an MSA and TAA compliant 200GBase-CU QSFP-DD to 8xSFP28 direct attach copper (DAC) cable designed for high-speed, low-latency connections between switches, routers, and servers. Operating over a passive twinax copper medium with a maximum reach of 1 meter, this cable offers reliable 200Gbps connectivity by splitting a single QSFP-DD port into eight 25Gbps SFP28 lanes. It is ideal for high-performance computing, data centers, and enterprise networking applications.
Built to meet industry standards such as IEEE 802.3bj/by/cd and SFF-8679/8636, this DAC supports I2C for EEPROM communication and features excellent EMI/EMC shielding, robust mechanical construction, and a pull-to-release latch design for easy installation. AddOn cables are rigorously tested, uniquely serialized, and backed by a limited lifetime warranty to ensure optimal performance and reliability.
| Specification | Details |
|---|---|
| Brand | AddOn |
| Part Number (SKU) | QSFPDD-8SFP28-PDAC1M-AO |
| Product Type | Direct Attach Copper (DAC) Cable |
| Data Rate | 200Gbps aggregate (8x 25Gbps NRZ per lane) |
| Connector Type | QSFP-DD to 8x SFP28 |
| Cable Type | Passive Twinax |
| Cable Length | 1 meter (3.3 ft) |
| Wire Gauge | 32 AWG |
| Cable Outer Diameter (OD) | 3.81 mm |
| Jacket Material | PVC |
| Flammability Rating | VW-1 |
| Impedance | 100 Ω |
| Voltage | 3.3V DC |
| Current (Signal Only) | 0.75A |
| Operating Temperature | -10°C to +60°C |
| Compliance Standards | QSFP-DD MSA Rev 3.4, SFF-8679, SFF-8636, IEEE 802.3bj/by/cd |
| EMI/EMC Compliance | FCC Part 15 Class B, EN 55032/55024 |
| Product Safety | TUV EN62368-1, UL/CSA 60950-1 |
| Laser Eye Safety | IEC 60825-1 (3rd Ed.), FDA CFR-21 1040.10 & 1040.11 |
| Applications | Data Centers, Servers, Routers, Switches, High-Performance Computing |
| RoHS Compliance | RoHS-6 Compliant |
| Warranty | Limited Lifetime Warranty |
