Description

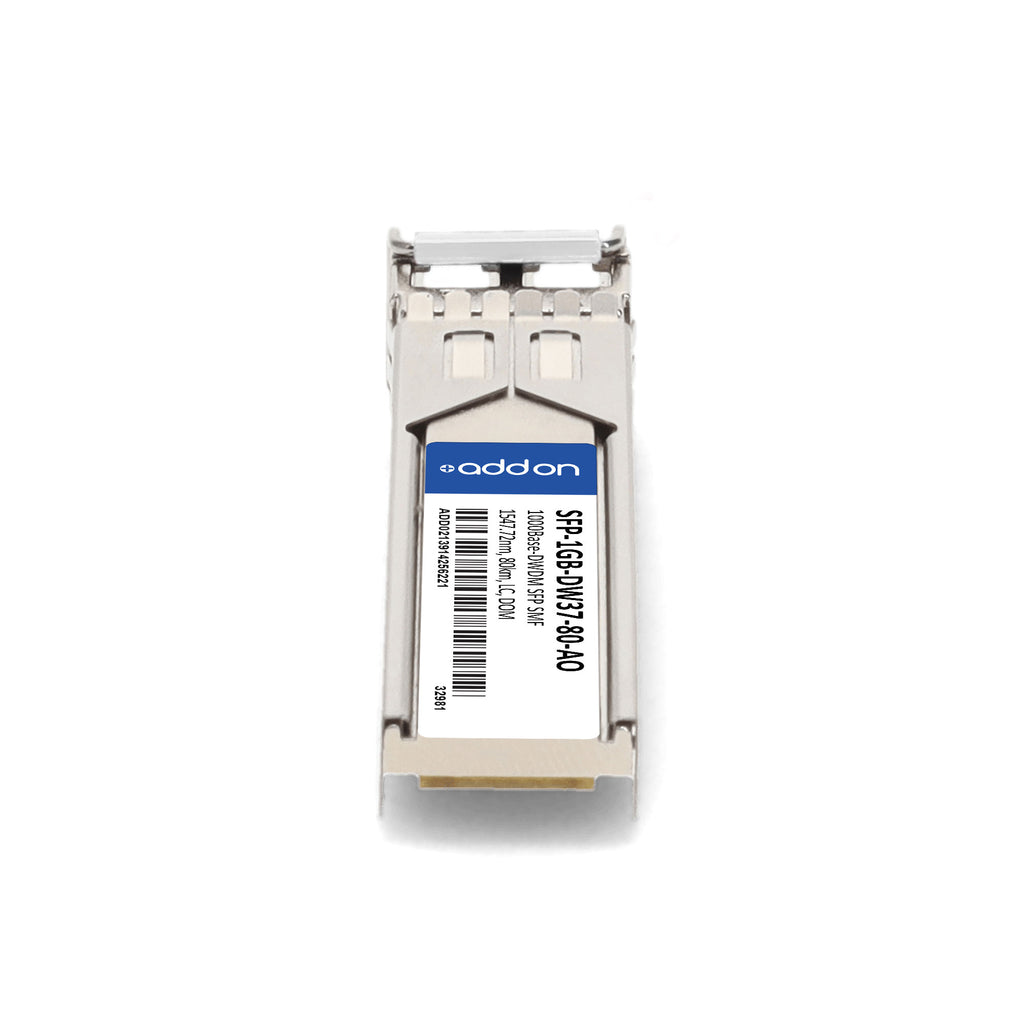

The AddOn SFP-1GB-DW37-80-AO is an MSA and TAA compliant 1000Base-DWDM SFP transceiver that delivers high-performance Gigabit connectivity over single-mode fiber (SMF) up to 80km. Operating on the 1547.72nm wavelength with 100GHz channel spacing, this hot-pluggable module ensures seamless integration with existing infrastructure.
Equipped with digital optical monitoring (DOM), it provides real-time diagnostics of operating parameters for improved network management. Designed for reliability, the transceiver features excellent ESD protection, low EMI emissions, and RoHS compliance. Ideal for fiber channel, Gigabit Ethernet, and deployment across access, metro, and enterprise networks, it comes with AddOn’s limited lifetime warranty for assured quality.
| Specification | Details |
|---|---|
| Form Factor | SFP (Small Form-Factor Pluggable) |
| Data Rate | 1000Base-DWDM (1.25 Gbps max) |
| Wavelength | 1547.72nm (ITU Channel 37, 100GHz spacing) |
| Connector Type | Duplex LC |
| Fiber Type | Single-Mode Fiber (SMF) |
| Max Distance | Up to 80 km |
| Digital Optical Monitoring (DOM) | Supported |
| Operating Temperature | 0°C to 70°C (Commercial) |
| Storage Temperature | -40°C to 85°C |
| Receiver Sensitivity | -24 dBm |
| Receiver Overload | -10 dBm |
| Optical Power (TX) | 0 to +5 dBm |
| Extinction Ratio | ≥ 8.2 dB |
| Power Supply Voltage | 3.15V – 3.45V |
| Power Consumption | 300 mA typical |
| Compliance | INF-8074, SFF-8472, RoHS, FCC Part 15, EN55022, FDA 21CFR, IEC 60825-1,2 |
| Warranty | Limited Lifetime Warranty |
