Description

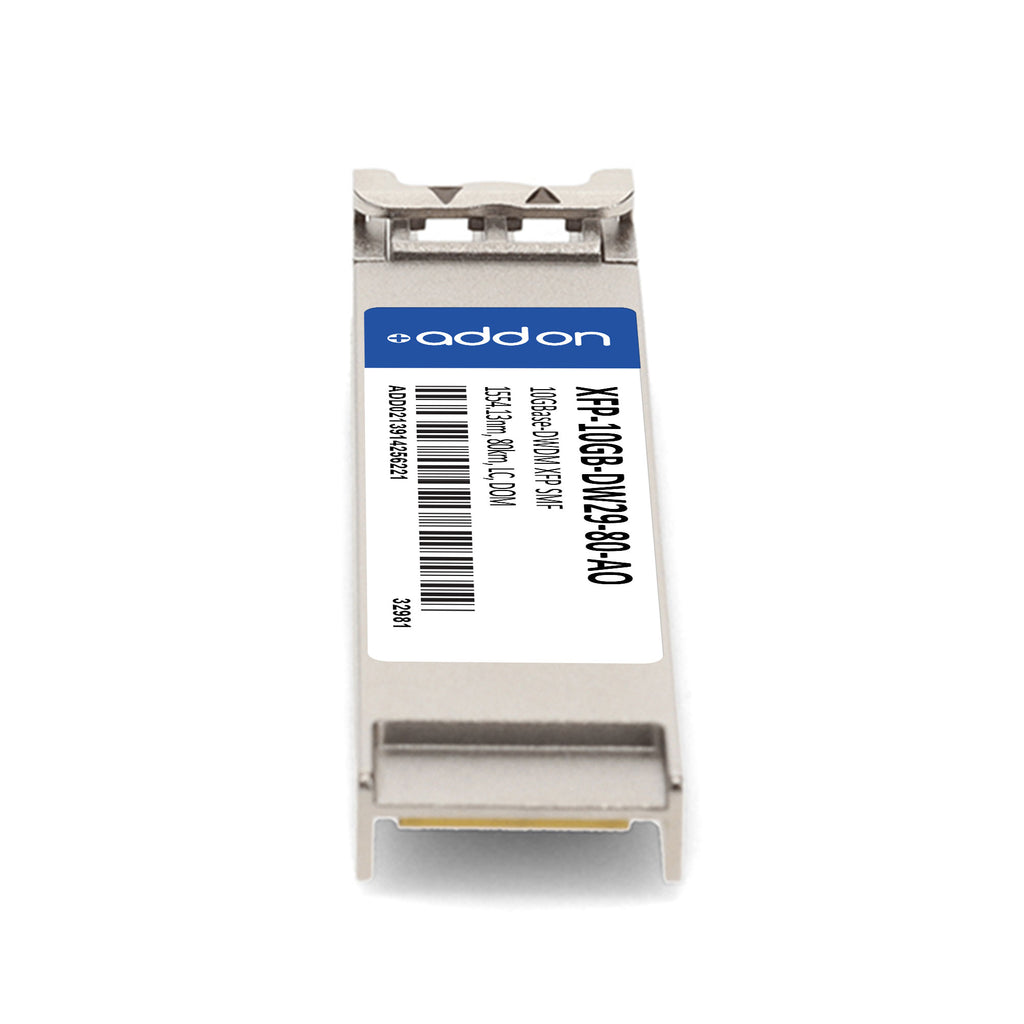

The AddOn XFP-10GB-DW29-80-AO is an MSA and TAA compliant 10GBase-DWDM XFP transceiver, delivering reliable 10Gbps throughput over single-mode fiber (SMF) at distances up to 80km. Operating on the 1554.13nm wavelength, it features a temperature-stabilized EML transmitter, APD receiver, and support for digital optical monitoring (DOM) for real-time diagnostics.
Designed with a duplex LC connector, excellent ESD protection, and hot-pluggable compatibility, this module ensures seamless integration into high-performance enterprise, metro, and access networks. Fully RoHS compliant and lead-free, it comes backed by AddOn’s limited lifetime warranty for guaranteed quality and reliability
| Specification | Details |
|---|---|
| Form Factor | XFP |
| Data Rate | 10Gbps (up to 11.3Gbps) |
| Reach/Distance | Up to 80km over SMF |
| Wavelength | 1554.13nm (DWDM, ITU 100GHz spacing) |
| Connector Type | Duplex LC |
| Fiber Type | Single-Mode Fiber (SMF) |
| Transmitter Type | EML (Temperature-stabilized) |
| Receiver Type | APD |
| Optical Power Output | 0 to +5 dBm |
| Receiver Sensitivity | -23 dBm |
| Receiver Overload | -8 dBm |
| Digital Optical Monitoring | Yes (DOM supported) |
| Operating Temperature | 0°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Power Supply Voltage | +3.3V / +5V |
| Power Consumption | 3.5W (typical) |
| Compliance | MSA INF-8077i, TAA, RoHS, FCC Part 15, EN55022, IEC 60825-1/2 (Laser Safety) |
| Applications | 10GbE over DWDM, 8x/10x Fibre Channel, Metro/Enterprise/Access networks |
| Warranty | Limited Lifetime Warranty |
