Description

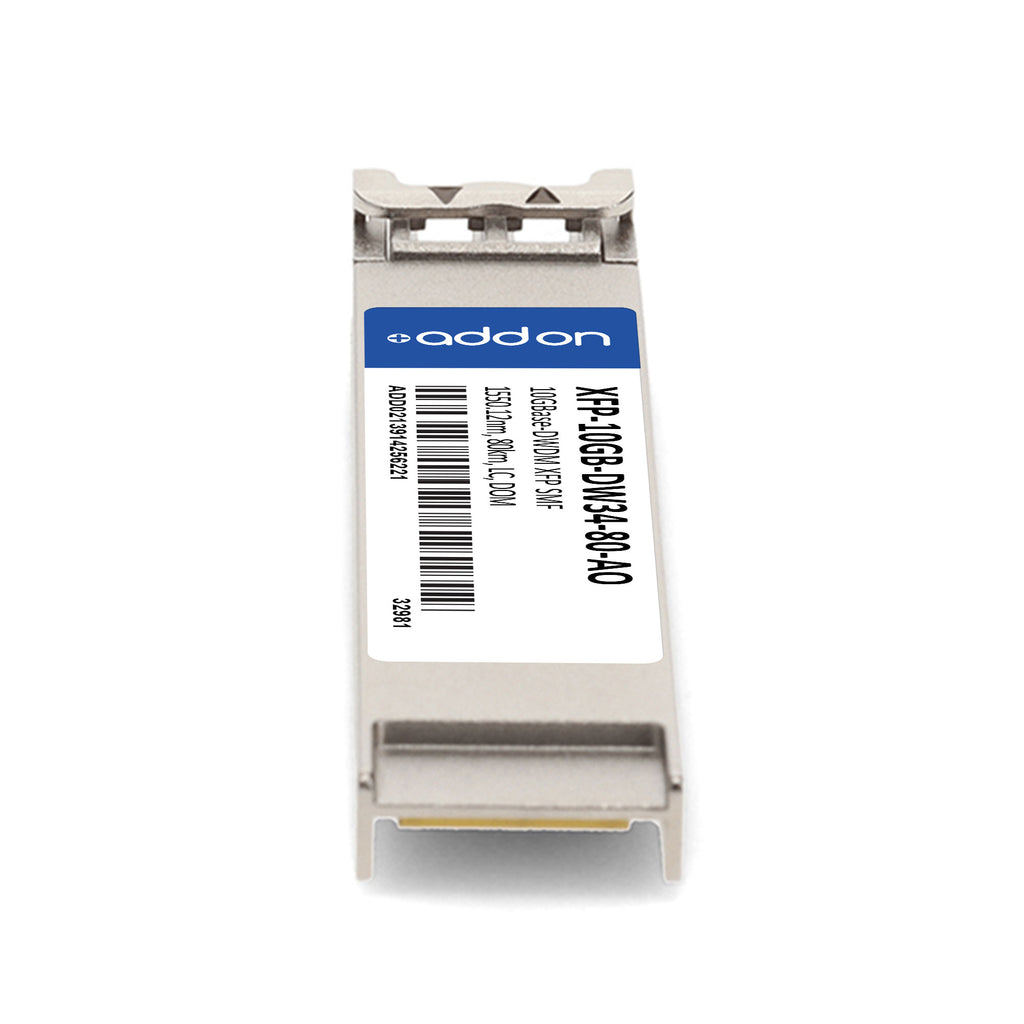

The AddOn XFP-10GB-DW34-80-AO is an MSA and TAA compliant 10GBase-DWDM XFP transceiver designed for long-distance, high-performance networking. Operating over single-mode fiber (SMF), it delivers reliable throughput up to 80 km at a wavelength of 1550.12nm using a duplex LC connector.
This hot-pluggable module features a temperature-stabilized EML transmitter and APD receiver, ensuring stable optical performance, along with digital optical monitoring (DOM) for real-time diagnostics. Built with RoHS compliance, excellent ESD protection, and low EMI metal housing, this transceiver guarantees reliability in demanding enterprise, metro, and access networks. Backed by AddOn’s rigorous testing and limited lifetime warranty, it integrates seamlessly into your infrastructure.
| Specification | Details |
|---|---|
| Form Factor | XFP (10GBase-DWDM) |
| Wavelength (Channel 34) | 1550.12 nm |
| Frequency | 193.4 THz |
| Data Rate | Up to 11.3 Gbps |
| Transmission Distance | Up to 80 km over SMF |
| Connector Type | Duplex LC |
| Transmitter Type | Temperature-stabilized EML |
| Receiver Type | APD |
| Digital Optical Monitoring (DOM) | Supported |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Power Supply Voltage | 3.3V / 5V |
| Power Consumption | 3.5W (typical) |
| Receiver Sensitivity | -23 dBm |
| Receiver Overload | -8 dBm |
| Optical Output Power | 0 to +5 dBm |
| Extinction Ratio | ≥ 9 dB |
| Compliance | INF-8077i, FCC Part 15, EN55022:2010, FDA 21CFR, IEC 60825-1/2 |
| Certifications | RoHS, TAA |
| Applications | 10G Ethernet DWDM, 8x/10x Fibre Channel, Metro/Enterprise/Access Networks |
| Warranty | Limited Lifetime |
