Description

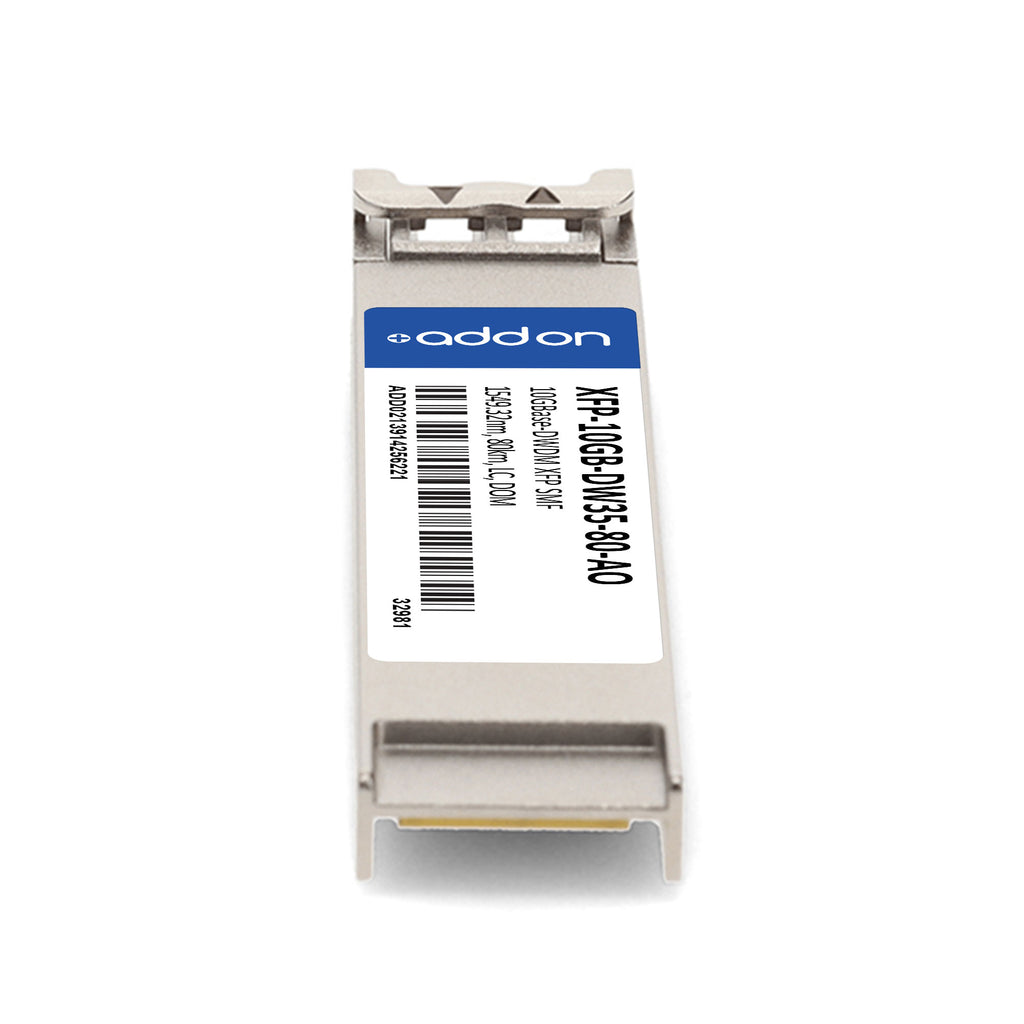

The AddOn XFP-10GB-DW35-80-AO is an MSA and TAA compliant 10GBase-DWDM XFP transceiver designed for high-performance long-distance networking. Supporting data rates up to 11.3 Gbps, this hot-pluggable optical module delivers reliable 10-Gigabit Ethernet and Fibre Channel connectivity over single-mode fiber (SMF) with distances up to 80 km.
Engineered with a temperature-stabilized EML transmitter and APD receiver, it ensures superior optical performance and durability. The transceiver operates at a center wavelength of 1549.32 nm (Channel 35, ITU Grid 100GHz) and features a duplex LC connector for secure connections.
With Digital Optical Monitoring (DOM) support, users gain real-time insights into parameters like optical power and temperature, making troubleshooting and monitoring efficient. RoHS-compliant and lead-free, this module meets global environmental standards. Backed by AddOn’s rigorous testing and limited lifetime warranty, it integrates seamlessly into existing infrastructures for metro, enterprise, and access applications
| Specification | Details |
|---|---|
| Form Factor | XFP (10GBase-DWDM) |
| Data Rate | Up to 11.3 Gbps |
| Wavelength | 1549.32 nm (Channel 35, ITU-T Grid 100GHz) |
| Reach / Distance | Up to 80 km over SMF |
| Connector | Duplex LC |
| Fiber Type | Single-Mode Fiber (SMF) |
| Transmitter Type | Temperature-stabilized EML |
| Receiver Type | APD |
| Optical Power (Tx) | 0 to +5 dBm |
| Receiver Sensitivity (Rx) | ≤ -23 dBm |
| Receiver Overload | -8 dBm |
| Extinction Ratio | ≥ 9 dB |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Power Supply Voltage | +3.3V / +5V |
| Power Consumption | 3.5W (typical) |
| Compliance | INF-8077i, RoHS, FCC Part 15, EN55022, FDA 21CFR, IEC 60825-1/-2 |
| DOM (Digital Optical Mon.) | Supported |
| Applications | 10G Ethernet over DWDM, 8x/10x Fibre Channel, Metro/Enterprise/Access links |
| Warranty | Limited Lifetime Warranty |
