Description

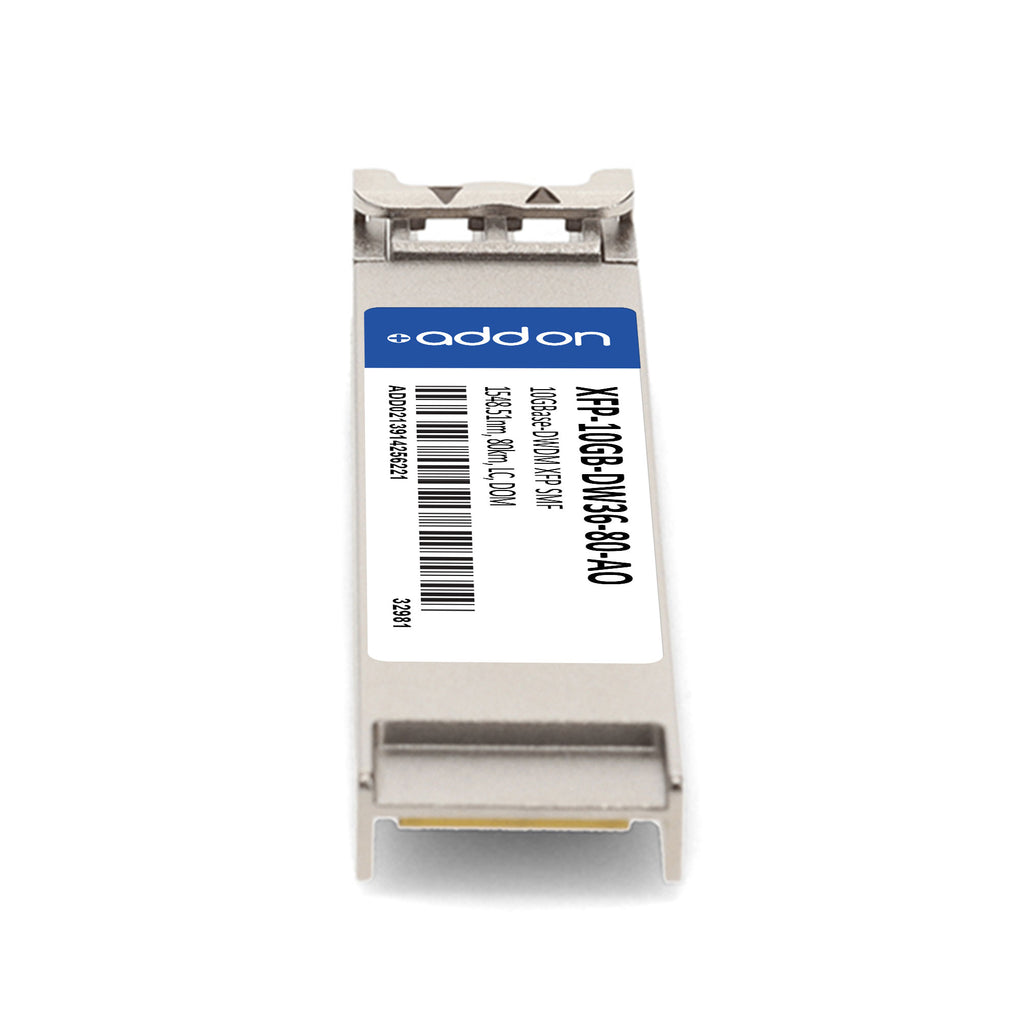

The AddOn XFP-10GB-DW36-80-AO is an MSA and TAA compliant 10GBase-DWDM XFP transceiver designed for long-distance, high-capacity optical networking. Operating at a 1548.51nm wavelength with 100GHz spacing, it delivers reliable 10Gbps throughput over single-mode fiber (SMF) for distances up to 80km.
Built with a temperature-stabilized EML transmitter and APD receiver, this hot-pluggable module supports Digital Optical Monitoring (DOM) for real-time diagnostics, ensuring seamless network integration. With compliance to industry standards including INF-8077i, RoHS, and MIL-STD-883E, the module guarantees high performance, safety, and long-term durability.
Perfect for metro, access, and enterprise networks, as well as 8G/10G Fibre Channel and 10G Ethernet DWDM applications, the XFP-10GB-DW36-80-AO provides outstanding value with AddOn’s stringent testing and lifetime warranty.
| Specification | Details |
|---|---|
| Form Factor | XFP, Hot Pluggable |
| Data Rate | 10Gbps (supports up to 11.3Gbps) |
| Wavelength | 1548.51nm (ITU Channel 36, 193.6 THz) |
| Transmission Distance | Up to 80km over SMF |
| Connector | Duplex LC |
| Transmitter Type | Cooled EML |
| Receiver Type | APD |
| Optical Power Output | 0 to +5 dBm |
| Receiver Sensitivity | -23 dBm |
| Receiver Overload | -8 dBm |
| Extinction Ratio | ≥ 9 dB |
| Dispersion Penalty | ≤ 3 dB |
| DOM Support | Yes (Digital Optical Monitoring) |
| Operating Temperature | 0°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Power Supply Voltage | +3.3V / +5V |
| Power Consumption | ≤ 3.5W |
| Compliance | MSA INF-8077i, RoHS, TAA, FCC Part 15, EN60950-1, IEC 60825-1/2 |
| Applications | 8G/10G Fibre Channel, 10G Ethernet DWDM, Metro, Access, Enterprise Networks |
| Warranty | Limited Lifetime Warranty |
