Description

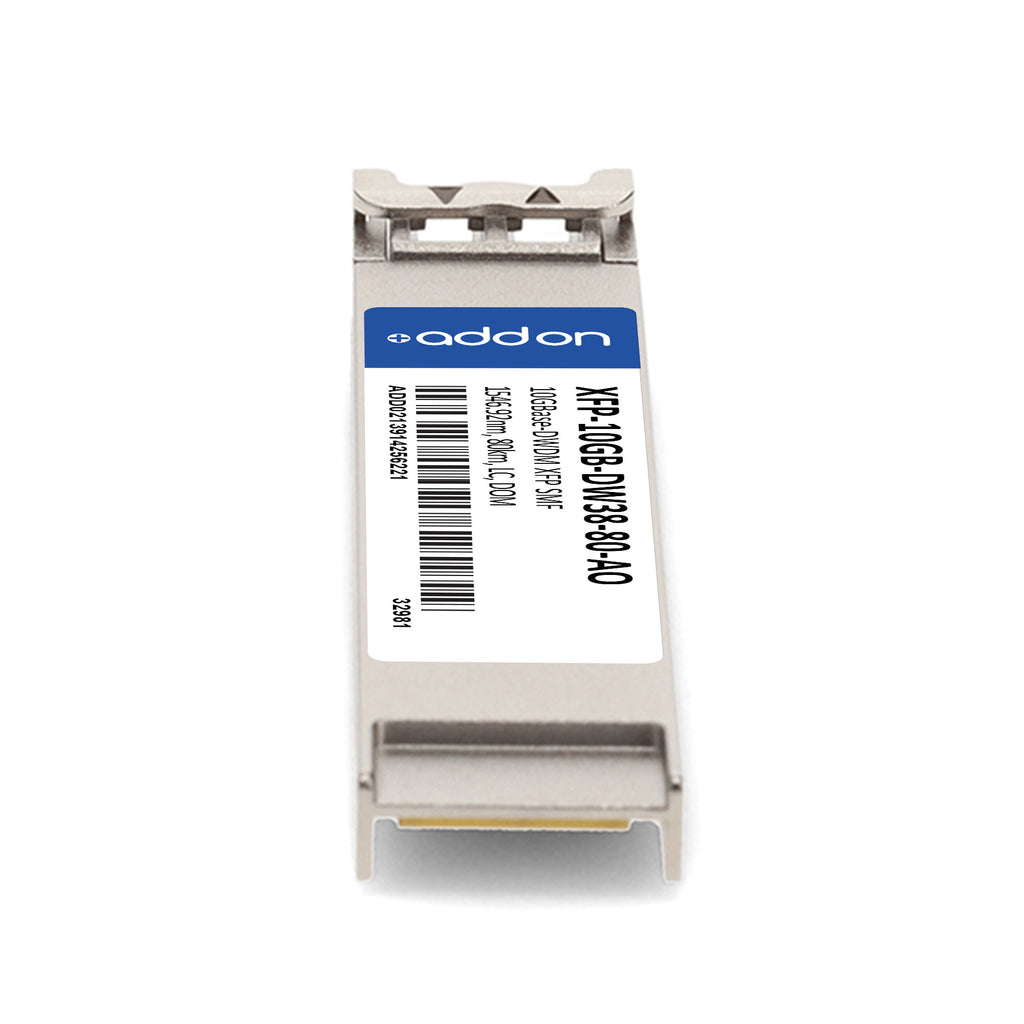

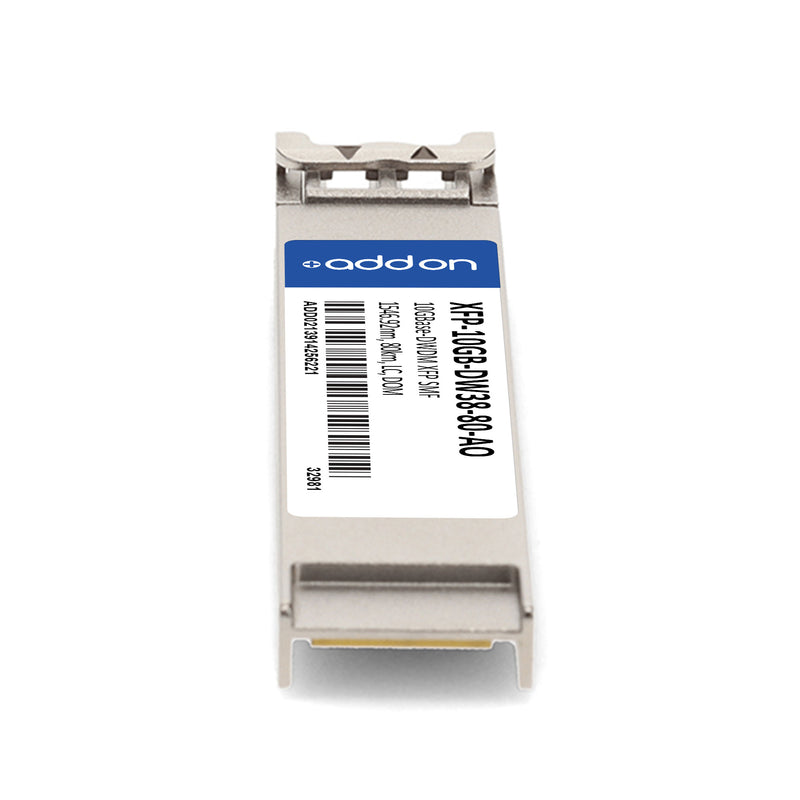

The AddOn XFP-10GB-DW38-80-AO is an MSA and TAA compliant 10GBase-DWDM XFP transceiver designed for high-performance optical networking. It delivers up to 80km transmission over single-mode fiber (SMF) using a 1546.92nm wavelength and an LC duplex connector.
Equipped with a temperature-stabilized EML transmitter and APD receiver, this module ensures stable performance across commercial temperature ranges (0°C to 70°C). The transceiver supports digital optical monitoring (DOM), enabling real-time access to operating parameters for enhanced network management.
It is hot-pluggable, RoHS compliant, lead-free, and offers excellent ESD protection with low EMI. The XFP-10GB-DW38-80-AO is tested for seamless integration into your network and comes with a limited lifetime warranty, making it a reliable and cost-effective solution for enterprise, metro, and access networks.
| Specification | Details |
|---|---|
| Form Factor | XFP (Hot-Pluggable) |
| Data Rate | 10GBase-DWDM (up to 11.3 Gbps) |
| Wavelength | 1546.92nm (Channel 38, ITU-T 100GHz Grid) |
| Reach/Distance | Up to 80km over Single-Mode Fiber (SMF) |
| Connector Type | Duplex LC |
| Transmitter Type | Temperature-stabilized EML |
| Receiver Type | APD |
| Digital Optical Monitoring | Supported (DOM) |
| Operating Temperature | 0°C to 70°C (Commercial) |
| Storage Temperature | -40°C to 85°C |
| Power Supply Voltage | +3.3V (typical), +5V not required |
| Power Consumption | 3.5W (typical) |
| Receiver Sensitivity | -23 dBm |
| Receiver Overload | -8 dBm |
| Optical Power Output | 0 to +5 dBm |
| Extinction Ratio | ≥ 9 dB |
| Compliance | MSA INF-8077i, RoHS, TAA Compliant |
| Applications | 8x/10x Fibre Channel, 10x Gigabit Ethernet over DWDM, Access/Metro/Enterprise |
| Warranty | Limited Lifetime Warranty |
