Description

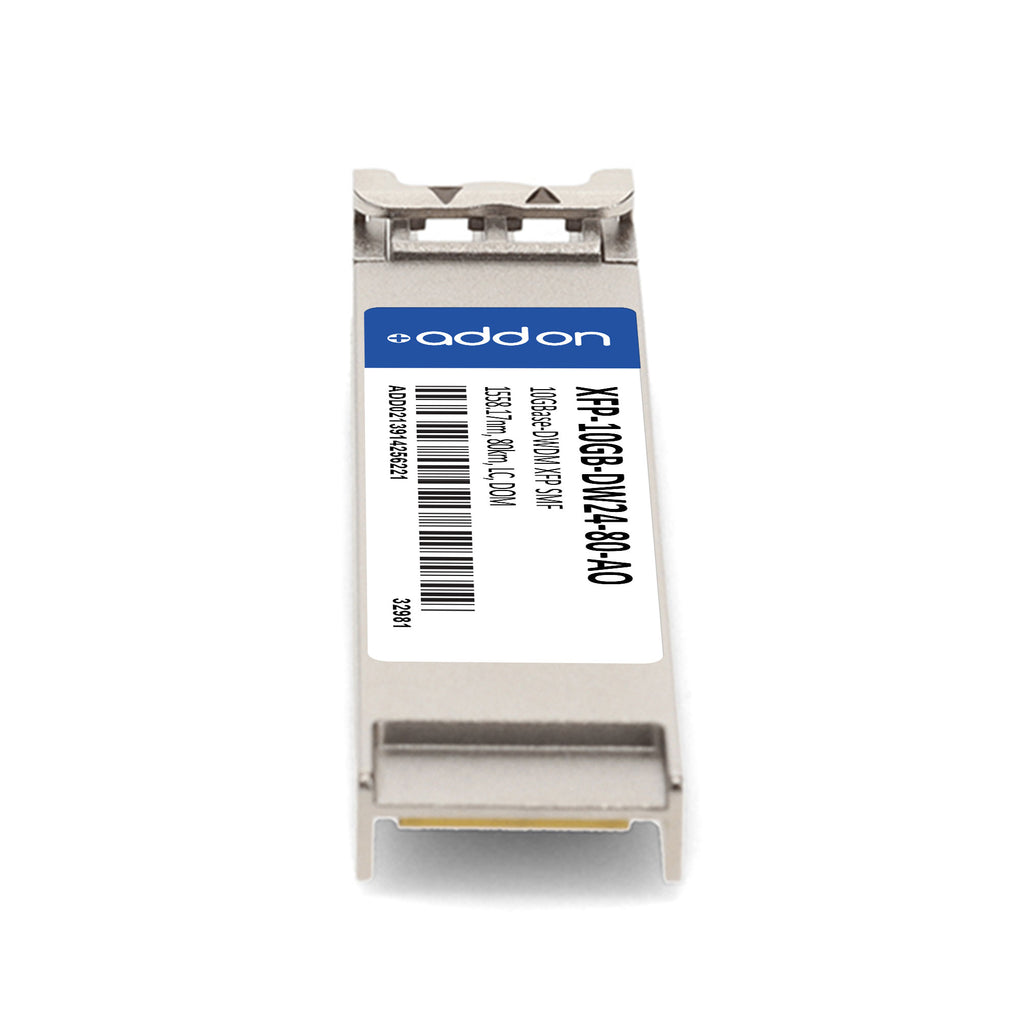

The AddOn XFP-10GB-DW24-80-AO is a high-performance MSA and TAA-compliant 10GBase-DWDM XFP transceiver designed for long-haul applications. Supporting data rates up to 11.3 Gbps, this module delivers reliable transmission over single-mode fiber (SMF) up to 80km using a 1558.17nm wavelength. It features a temperature-stabilized EML transmitter, APD receiver, and a duplex LC connector for seamless integration.
Equipped with Digital Optical Monitoring (DOM), the transceiver provides real-time access to operating parameters for proactive network management. Its hot-pluggable design, excellent ESD protection, and compliance with INF-8077i standards ensure robust operation across access, metro, and enterprise networks. Backed by AddOn’s lifetime warranty, this transceiver offers a cost-effective and dependable solution for expanding network infrastructure.
| Specification | Details |
|---|---|
| Form Factor | XFP (Hot Pluggable) |
| Data Rate | Up to 11.3 Gbps |
| Wavelength | 1558.17 nm (Channel DW24, 100GHz ITU Grid) |
| Reach | Up to 80 km over SMF |
| Connector | Duplex LC |
| Transmitter | Temperature-stabilized EML |
| Receiver | APD |
| Optical Power (TX) | 0 to +5 dBm |
| Receiver Sensitivity | -23 dBm |
| Receiver Overload | -8 dBm |
| Optical Extinction Ratio | ≥ 9 dB |
| Operating Temperature | 0°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Power Consumption | 3.5W (typical) |
| Power Supply | 3.3V / 5V |
| Compliance | INF-8077i, TAA, RoHS, FCC Part 15, EN55022, FDA 21CFR, IEC 60825-1/2 |
| Applications | 10G Ethernet DWDM, 8x/10x Fibre Channel, Metro, Access, Enterprise Networks |
| Warranty | Limited Lifetime Warranty |
