Description

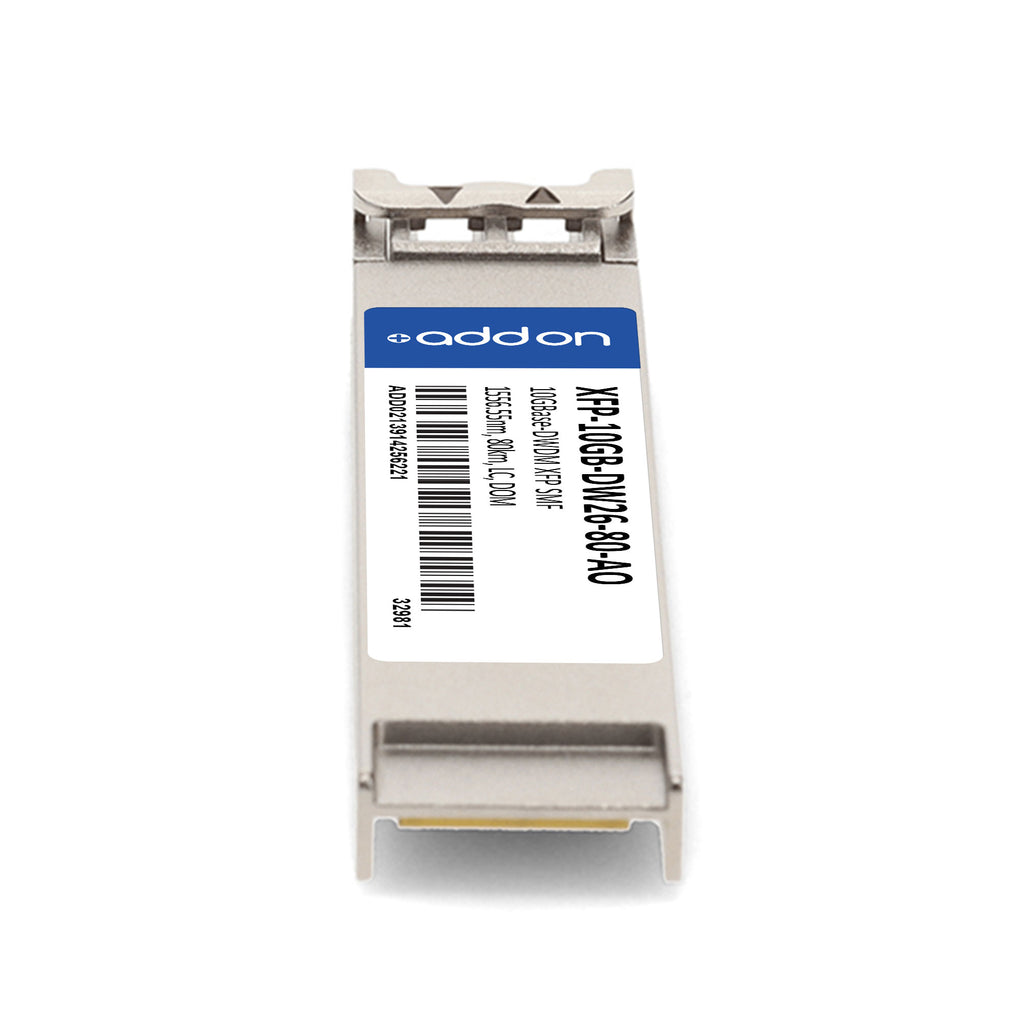

The AddOn XFP-10GB-DW26-80-AO is an MSA and TAA compliant 10GBase-DWDM XFP transceiver, engineered for high-performance, long-distance networking. Supporting data rates up to 11.3 Gbps, it delivers reliable 10G transmission over single-mode fiber (SMF) at a distance of up to 80 km using a 1556.55nm wavelength.
Equipped with a temperature-stabilized EML transmitter and APD receiver, this transceiver ensures stable performance even in demanding environments. It features Digital Optical Monitoring (DOM) for real-time diagnostics, LC duplex connector, and hot-pluggable design for seamless integration. Built to industry standards, it is tested for interoperability and backed by a limited lifetime warranty.
Ideal for enterprise, metro, and access networks, as well as 10G Ethernet over DWDM and 8x/10x Fibre Channel applications, this module combines performance, reliability, and compliance in a single solution.
| Specification | Details |
|---|---|
| Form Factor | XFP |
| Data Rate | Up to 11.3 Gbps |
| Reach/Distance | 80 km |
| Wavelength | 1556.55 nm (DWDM, ITU Channel 26) |
| Connector | Duplex LC |
| Fiber Type | Single-Mode Fiber (SMF) |
| Transmitter | EML (Externally Modulated Laser), temperature-stabilized |
| Receiver | APD (Avalanche Photodiode) |
| Optical Power Output | 0 to +5 dBm |
| Receiver Sensitivity | -23 dBm |
| Receiver Overload | -8 dBm |
| Extinction Ratio | ≥ 9 dB |
| Digital Diagnostics (DOM) | Supported |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Power Supply | +3.3V / +5V |
| Power Consumption | 3.5W max |
| Compliance | INF-8077i, RoHS, TAA, FCC Part 15, IEC 60825-1/2 |
| Warranty | Limited Lifetime Warranty |
