Description

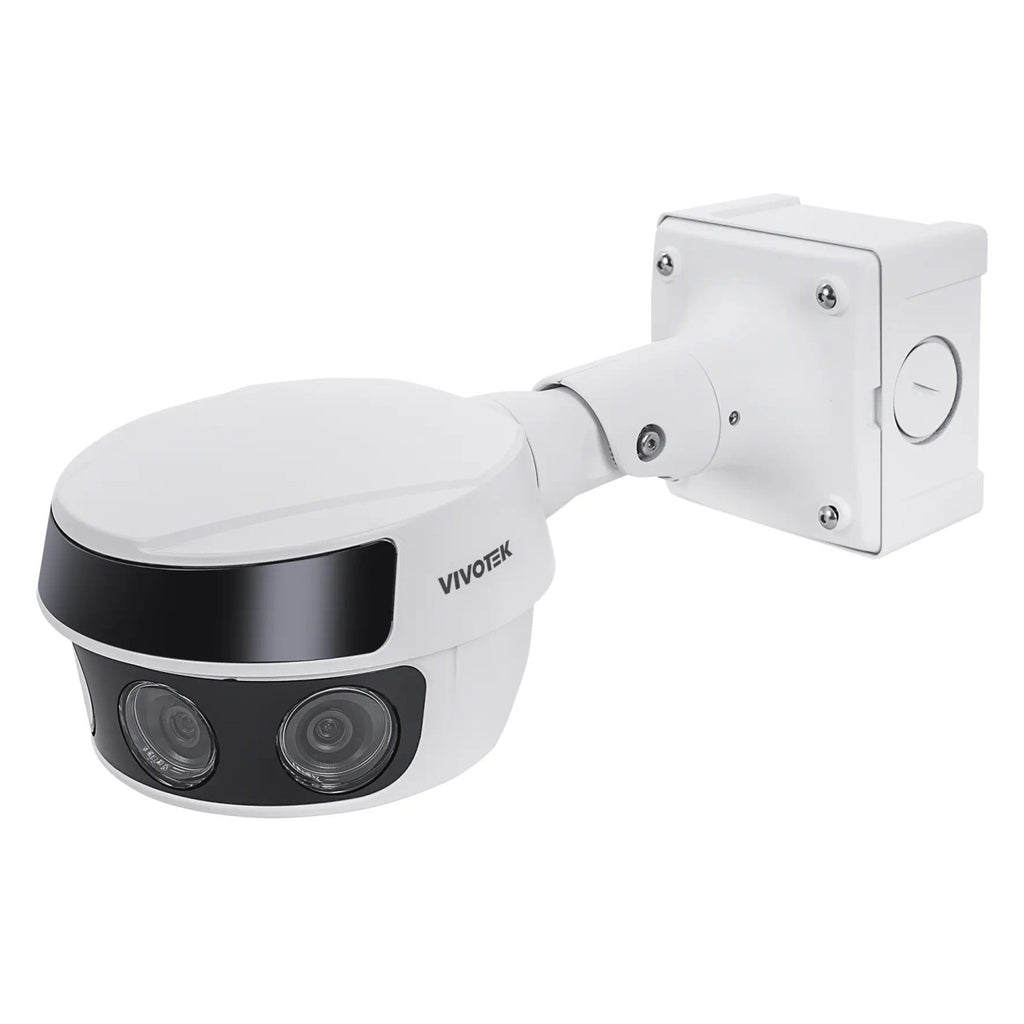

The Vivotek MS9321-EHV-V2 is a cutting-edge multi-sensor panoramic network camera engineered for expansive surveillance coverage and superior image clarity. Equipped with four 5MP CMOS sensors delivering an impressive 18MP total resolution (6912 x 2624), it provides a seamless 180° panoramic field of view ideal for monitoring wide areas such as airports, public squares, transportation hubs, and industrial sites.
Powered by an advanced multimedia SoC and built-in deep learning hardware accelerator, the MS9321-EHV-V2 delivers intelligent AI-powered analytics including people and vehicle detection, intrusion detection, loitering, line crossing, and more. Its Smart VCA and Smart Motion Detection enable precise event monitoring and reduce false alarms.
The camera’s WDR Pro technology ensures exceptional image quality even in challenging lighting conditions, while Smart IR illuminators extend visibility up to 30 meters in complete darkness. With robust IP66, IK10, and IP6K9K-rated weather and impact resistance, it’s built to withstand harsh outdoor environments. Integrated Trend Micro IoT Security, ONVIF G/S/T support, and multi-stream H.265/H.264 compression make deployment flexible, secure, and efficient.
| Feature | Specification |
|---|---|
| Model | MS9321-EHV-V2 |
| Image Sensor | 4 × 1/2.8" Progressive CMOS (2560 × 1920 each) |
| Max. Resolution | 6912 × 2624 (18MP) |
| Lens Type | Fixed-focal |
| Focal Length | 3.5 mm |
| Aperture | F2.0 |
| Field of View | 180° (H) × 62.5° (V) × 180° (D) |
| WDR Technology | WDR Pro |
| Minimum Illumination | 0.055 lux (Color), 0.005 lux (B/W), 0 lux (IR on) |
| IR Range | Up to 30 m with Smart IR |
| Frame Rate | 30 fps @ 6912 × 2624 (VCA off), 20 fps (VCA on) |
| Video Compression | H.265, H.264, MJPEG |
| Max Streams | 4 video streams, up to 9 configurable profiles |
| Dynamic Range | 120 dB |
| Audio | Two-way audio (Full duplex), G.711, G.726, MPEG-2 AAC-LC |
| AI Analytics | People & vehicle detection, attribute extraction, intrusion, loitering, line crossing, unattended/missing object, face, crowd detection |
| Storage | MicroSD/SDHC/SDXC, NAS |
| Network Protocols | IPv4/IPv6, HTTP/HTTPS, RTSP/RTP, FTP/SFTP, SNMP, TLS 1.2/1.3, and more |
| Security Features | HTTPS, 802.1X, Secure boot, Trend Micro IoT Security |
| Interface | 10/100/1000 Mbps Ethernet (RJ-45), audio I/O, digital I/O, AC 24V power input |
| Power Supply | AC 24V, IEEE 802.3at PoE Class 4 |
| Power Consumption | Max. 18.81 W (PoE), Max. 26.4 W (AC 24V) |
| Operating Temperature | -40°C ~ 55°C (IR off), -40°C ~ 50°C (IR on) |
| Ingress Protection | IP66, IK10, IP6K9K |
| Certifications | CE, FCC, UL, RCM, VCCI, BSMI, BIS |
| Dimensions | 308 × 167 × 130 mm |
| Weight | 2.4 kg |
