Black Box Multiplatform Matrix Kvm Switch For Pc And Sun - (Slim Chassis Style) 2 Users X

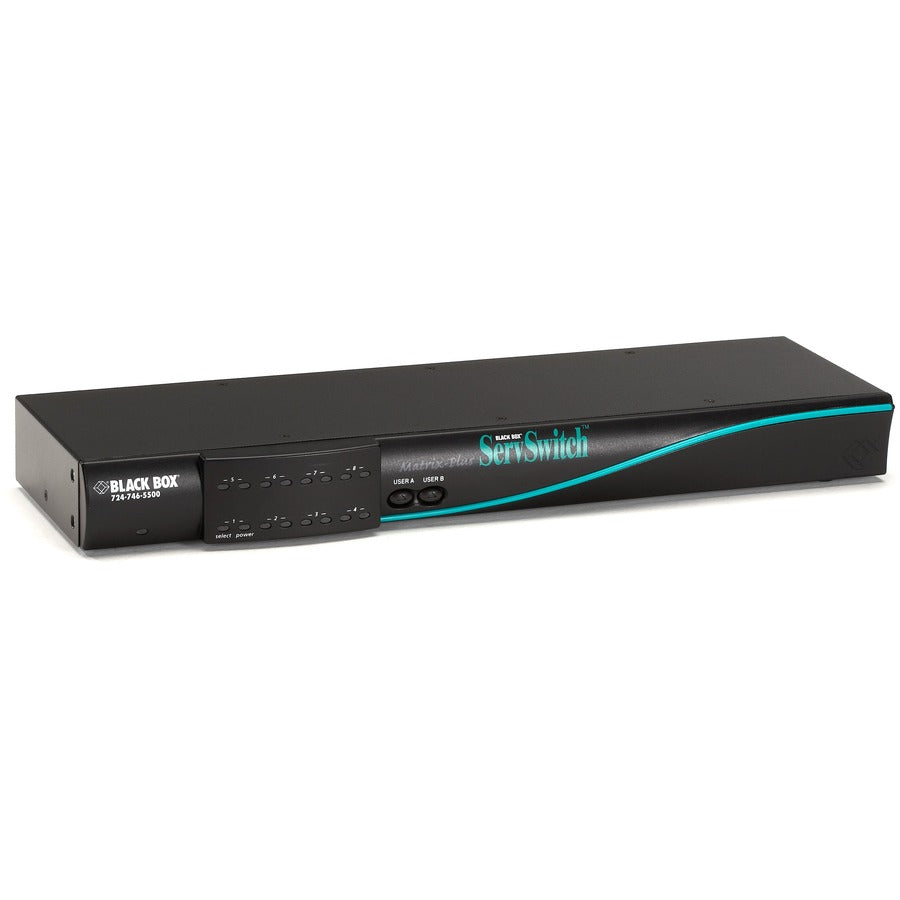

Black Box ServSwitch SW761A-R4 KVM Switchbox

• USB support and serial emulation.
• Connect CPUs and control stations up to 100 feet (30.4 m) from the switch.
• True multichannel operation - simultaneous and independent control by two or four users.
• Incredibly crisp video resolution up to 1600 x 1280.
• Security features keep data safe.
• Optional expansion module enables you to daisy chain chassis and supports up to 1000 CPUs!

Independence day, every day.
Use these ServSwitch™ solutions to connect 2 independent KVM users to 4 PC-only or PC and Sun® CPUs. Need to expand and add more CPUs? Use the optional Matrix Expansion Module to expand to as many as 1000 CPUs!

You'll find a Multiplatform Matrix ServSwitch for PC and Sun is the perfect multiuser KVM switch. With it, each user has total and independent access to any of the connected CPUs or servers on the system. For even more convenience, you can add a local monitor to each switch location.

Multipoint access for those on the go.
A Multiplatform Matrix ServSwitch is ideal for busy Information Systems (IS) departments where two or four people may need simultaneous access to a number of CPUs. If you need more than one access point for one IS manager, this switch is still the answer. With a 2-user model, you can put one keyboard, monitor, and mouse in the computer room and the second set in the office. This setup provides quick access to all connected CPUs, no matter where you go. Need additional points of access for, say, two other members of your IS office staff? Then order a 4-user Multiplatform Matrix ServSwitch.

Switch, switch, switch!
The Multiplatform Matrix ServSwitch enables you to switch among servers in two different ways. First, you can use the built-in on-screen menu system. Name your servers and select them from easy-to-use menus. Just click to select the right CPU. You can also switch via simple keyboard commands.

The 2-user Multiplatform Matrix switches also offer switching via front-panel pushbuttons.

Whatever your choice, these switches have the quick and easy switching techniques you need.

In living color.
Our advanced on-screen display technology is the best in the industry. The resolution is crisp and clear at 1600 x 1280. The easy-to-use, easy-to-read on-screen display features a modern, intuitive design with pop-up selection boxes. You have a choice of six different fonts and you can configure the screen's color scheme and select different screen savers.

What's the password? Only you know.
A user-defined ID and password keep prying eyes out of your network. You can also restrict user access to specific CPUs. You can even keep tabs on who is accessing your system, forcing all users to enter an ID log-in and a password. An on-screen display gives helpful messages to indicate the status of your connections, which can be set up in four different modes.

• In view mode, a control station monitor shows a CPUs activity, but the keyboard and mouse are disabled and no changes can be made.
• In share mode, the control stations gain access to CPUs on a first-come, first-served basis. Once a control station relinquishes the use of a CPU, a time-out period follows. After that, another control station can access that particular CPU.
• In control mode, one control station can take exclusive control of a CPU. Other stations can access the CPU but cannot control it in any way.
• In private mode, one control station can take exclusive control over a CPU.

• Works with PC and Sun-and even Mac®-operating systems.


• Connect either 2 independent KVM users to 4 PC only or PC and Sun® CPUs.
