Description

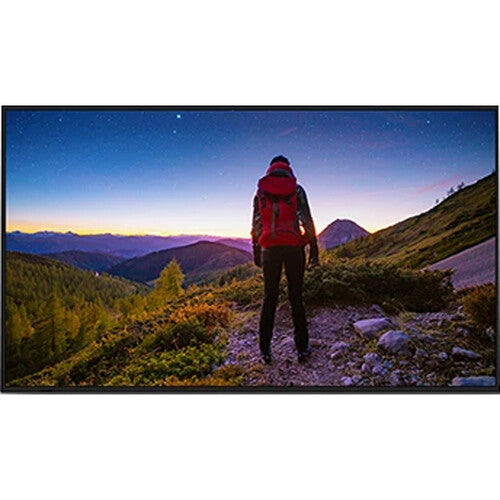

The Sharp MultiSync® PN-M432 is a 43-inch professional 4K UHD large format display built for high-impact digital signage in demanding commercial environments. Designed for healthcare, retail, corporate, command centers, and financial institutions, the PN-M432 delivers consistent color accuracy, modular flexibility, and 24/7-ready reliability straight out of the box.
Featuring native 3840 × 2160 resolution and 550 cd/m² brightness, the PN-M432 ensures vivid, lifelike visuals—even in high ambient light spaces. The integrated SpectraView™ Engine provides factory-calibrated color performance, uniformity control, and backlight stabilization for long-term image consistency.
With DisplayPort 1.4 MST daisy chaining, USB-C with 65W Power Delivery, integrated USB hub functionality, and SDM slot compatibility, the PN-M432 simplifies installation while supporting modern computing modules like Intel® SDM and Raspberry Pi Compute Module 4. A rugged full-metal chassis, active cooling, and advanced network security features make it ideal for mission-critical signage applications.
Built for reliability, flexibility, and centralized control via NaViSet Administrator 2™, the PN-M432 delivers enterprise-grade performance that just works.
| Specification Category | Details |
|---|---|
| Model | PN-M432 |
| Screen Size | 42.5" Viewable |
| Panel Technology | IPS |
| Native Resolution | 3840 × 2160 (4K UHD) |
| Brightness (Typical) | 550 cd/m² |
| Contrast Ratio | 1200:1 |
| Viewing Angle | 178° Horizontal / 178° Vertical |
| Aspect Ratio | 16:9 |
| Displayable Colors | Over 1.07 Billion (10-bit dithered) |
| Panel Haze | 25% Anti-Glare |
| Orientation Support | Landscape and Portrait (CCW rotation) |
| HDR Support | HDR10, HLG, PQ |
| Audio | Integrated 10W × 2 Speakers |
| Digital Inputs | 2 × HDMI 2.0, 2 × DisplayPort 1.4, 1 × USB-C (DP-Alt Mode, 65W PD) |
| Digital Outputs | 1 × HDMI, 1 × DisplayPort (DP or DP-Alt via USB-C) |
| USB Connectivity | USB-A (Service), USB-A 3.2 Downstream, USB-C Downstream |
| External Control | LAN (100Mbit), RS-232C, IR |
| Daisy Chain Capability | DisplayPort 1.4 with MST (up to 4 displays)* |
| USB-C Power Delivery | Up to 65W |
| SDM Compatibility | Intel® SDM-S / SDM-L Ready |
| Raspberry Pi Support | Compute Module 4 Compatible |
| Security Features | IEEE802.1x, SSL/TLS, SNMP v1/2/3, MAC/IP Filtering, Port Lockout |
| Remote Management | NaViSet Administrator 2™ Compatible |
| Operating Temperature | 0°C to 40°C |
| VESA Mount | 300 × 300 mm (4 × M6) |
| Dimensions (W × H × D) | 38.0 × 21.9 × 2.6 in |
| Weight | 29.8 lbs (13.5 kg) |
| Power Consumption (Typical) | 75W |
| Warranty | 3-Year Advanced Replacement |
| Included Accessories | AC Power Cord (3m), HDMI Cable (2m), IR Remote, Batteries |
