Description

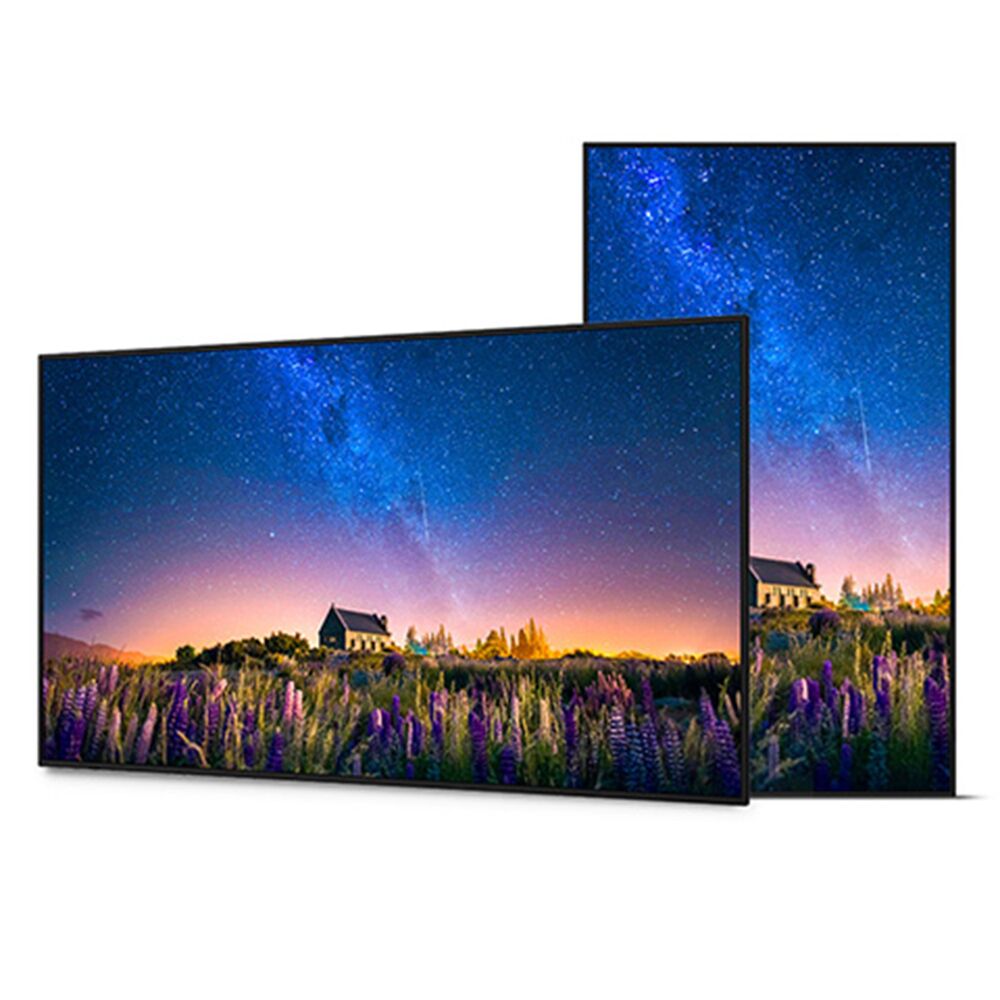

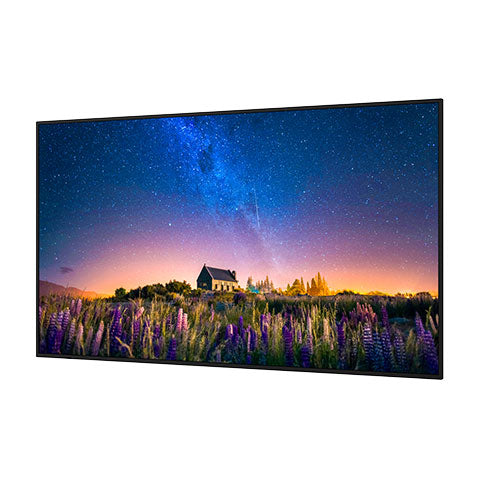

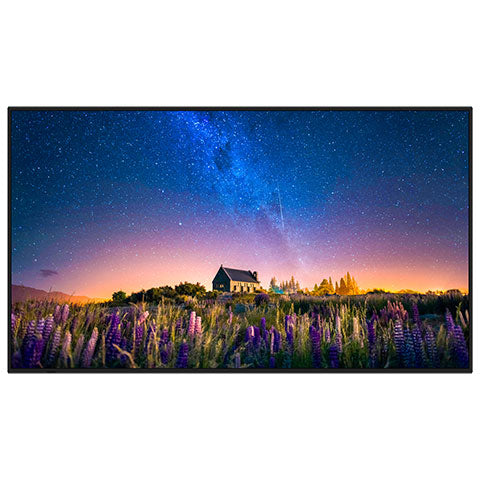

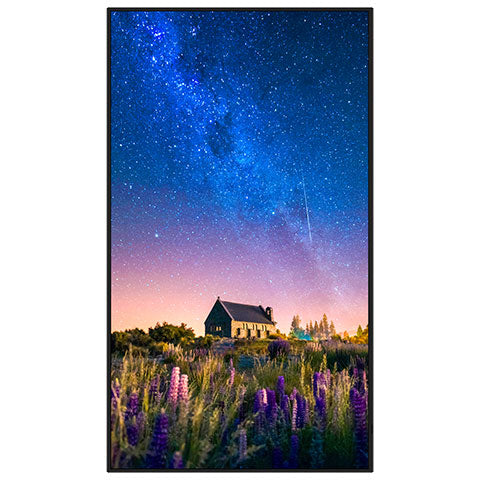

The Sharp MultiSync® PN-M652 is a 65-inch 4K UHD large format display engineered for high-impact digital signage and professional environments. With factory-calibrated SpectraView™ color accuracy, 550 cd/m² brightness, and an anti-glare, high-haze panel, it delivers brilliant and consistent visuals—even in bright ambient light.
Designed for 24/7 operation, the PN-M652 features a rugged metal chassis, integrated cooling, and robust IT security controls. Connectivity is simplified with HDMI 2.0, DisplayPort 1.4, and USB-C supporting 65W Power Delivery. Its modular design supports Intel® Smart Display Modules and Raspberry Pi Compute Module 4, offering scalable performance without external clutter.
Perfect for retail, control rooms, healthcare, finance, and corporate signage, the PN-M652 combines professional-grade durability with flexibility, remote management, and sleek design.
| Category | Specification |
|---|---|
| Display | |
| Panel Technology | IPS |
| Screen Size | 64.5" (diagonal) |
| Native Resolution | 3840 × 2160 (4K UHD) |
| Brightness (Typical) | 550 cd/m² |
| Contrast Ratio | 1200:1 |
| Viewing Angle | 178° (H/V) |
| Aspect Ratio | 16:9 |
| Color Gamut | 72% NTSC |
| Displayable Colors | 1.07 Billion (10-bit dithered) |
| Orientation | Landscape / Portrait |
| Panel Haze | 25% |
| Connectivity – Input | |
| HDMI | 2 × HDMI 2.0 |
| DisplayPort | 2 × DP 1.4 |
| USB-C | Upstream w/ DP-Alt Mode & 65W PD |
| Connectivity – Output | |
| HDMI | 1 × HDMI |
| DisplayPort | 1 × DP (via USB-C) |
| Audio Out | 3.5mm Mini Jack |
| Control Interfaces | LAN (100Mbit), RS-232C, IR Remote |
| Power | |
| Typical/Max Consumption | 135W / 210W / 400W |
| Standby (Network/Normal) | 0.5W / 2W |
| Voltage | 100–240V AC, 4.6A–1.9A |
| Audio | Integrated 10W × 2 speakers |
| Physical | |
| Dimensions (W × H × D) | 1454.5 × 832.4 × 59.5 mm (57.3 × 32.8 × 2.3 in) |
| Net Weight | 26.0 kg / 57.3 lbs |
| Bezel Width | 14.3mm / 14.3mm (L/R), 14.8mm (T/B) |
| VESA Mount | 400 × 400 (M6) |
| Environmental | |
| Operating Temp. | 0–40 °C |
| Operating Humidity | 20–80% |
| Altitude | Up to 3000m (9843 ft) |
| Warranty | 3 Years Advanced Replacement |
| Additional Features | SpectraView™ Engine, HDR (PQ/HLG/HDR10), Local Dimming, Multi Picture Mode, NaViSet Administrator 2, Intel® SDM & Raspberry Pi Compute Module 4 support, Energy Star 8.0 |
