Description

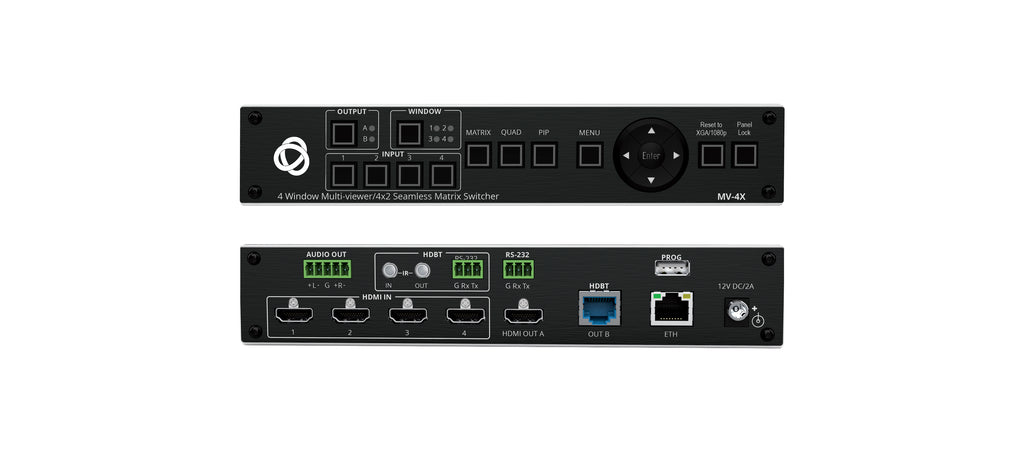

The Kramer MV-4X is a high-performance 4-window multi-viewer and 4x2 seamless matrix switcher engineered for professional visualization environments. Designed for control rooms, conference spaces, classrooms, and dynamic monitoring setups, the MV-4X enables effortless display of up to four HDMI sources using full-screen, PiP, PoP, and quad-view configurations.
With support for 4K@60Hz (4:4:4 for HDMI), HDBaseT output up to 4K@60Hz (4:2:0), and full HDCP 2.3 compliance, this model delivers exceptional image quality and reliable content protection. Its integrated scaling engine ensures zero-time video switching and smooth transitions, while advanced features such as chroma-keying, logo overlay, customizable borders, image rotation, preset layouts, and auto-windowing deliver extensive creative and operational flexibility.
Control is streamlined through front-panel OSD keys, an intuitive built-in WebGUI, Ethernet, and RS-232. With robust EDID management and both HDMI and HDBaseT outputs, the MV-4X is a versatile, dependable solution for multi-source display and routing workflows.
| Category | Details |
|---|---|
| Inputs | 4 × HDMI (female HDMI connectors) |
| Outputs | 1 × HDMI (female HDMI), 1 × HDBaseT (RJ-45), 1 × Balanced Stereo Audio (5-pin terminal block) |
| Ports | IR In & Out (RCA), RS-232 (2 × 3-pin terminal blocks), Ethernet (RJ-45), USB Type-A |
| Video Max Bandwidth | 18Gbps (6Gbps per channel) |
| Max Resolution | HDMI: 4K@60Hz (4:4:4) • HDBaseT: 4K@60Hz (4:2:0) |
| Compliance | HDMI 2.0, HDCP 2.3 |
| Extension Range | Up to 40m at 4K@60Hz (4:2:0); up to 70m at 1080p@60Hz |
| Audio Performance | Max Level: 15dBu • Impedance: 500Ω • Freq. Response: 20Hz–20kHz ±0.3dB • S/N Ratio: >–88dB • THD+N: <0.003% |
| Controls | Front panel buttons, WebGUI, RS-232 |
| Indicators | Output and window indication LEDs |
| Power | Consumption: 12V DC, 1.9A • Source: 12V DC, 5A |
| Operating Conditions | 0°–40°C (32°–104°F) • Humidity 10%–90% non-condensing |
| Regulatory Compliance | Safety: CE, FCC • Environmental: RoHS, WEEE |
| Enclosure | Aluminum, Half 19" 1U, convection cooled |
| Dimensions (Product) | 21.3 × 23.4 × 4.0 cm (8.39" × 9.21" × 1.57") |
| Weight (Product) | 1.3 kg (2.8 lbs) |
| Accessories Included | Power cord and adapter |
