Description
The Shure MXA901W-R-HCM-V Microflex Advance Ceiling Microphone Bundle is a complete, enterprise-grade audio solution designed for medium-sized conferencing environments. Combining the sleek MXA901-R ceiling array microphone with the A901-R-HCM flush-mount kit, this bundle delivers premium audio performance with a clean, nearly invisible ceiling installation ideal for modern meeting spaces.
Equipped with 85 built-in MEMS microphone elements, the MXA901-R provides consistent, room-wide voice capture across a 20 x 20 ft coverage area without requiring complex setup. Single-Zone Automatic Coverage technology intelligently captures multiple talkers while minimizing background noise. Integrated IntelliMix DSP enhances clarity through automatic mixing, acoustic echo cancellation, noise reduction, and gain control, ensuring every participant is heard clearly.
Designed for seamless integration into enterprise AV environments, the system supports Dante and AES67 networking, is certified for leading collaboration platforms, and works within the Shure Microflex Ecosystem. The included flush-mount kit enables discreet drywall ceiling installation with a professional finish, making it ideal for boardrooms, conference rooms, and presentation spaces where aesthetics and performance are equally important.
| Specification | Details |
|---|---|
| Product Type | Ceiling Array Microphone Bundle with Flush Mount Kit |

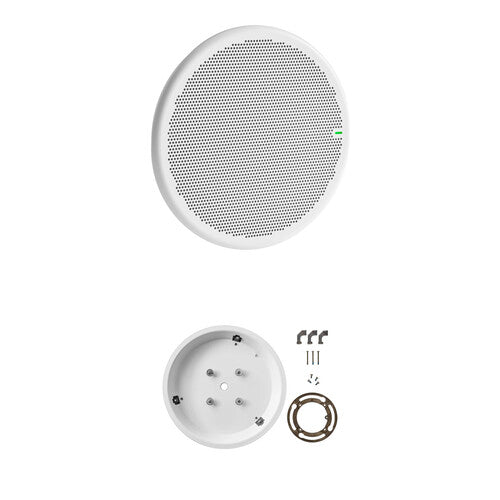

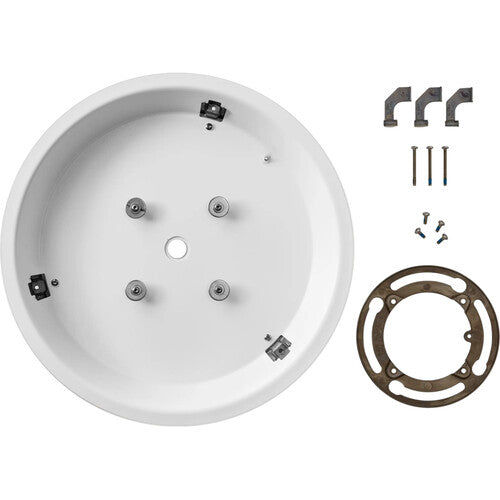

| Included Components | MXA901-R Microphone, A901-R-HCM Flush Mount Kit, Mounting Hardware |
| Microphone Type | 85 MEMS Microphone Elements |
| Coverage Area | 20 x 20 ft (6.1 x 6.1 m) |
| Coverage Technology | Single-Zone Automatic Coverage |
| Frequency Response | 100 Hz to 20 kHz |
| Dynamic Range | 71.5 dB |
| Signal-to-Noise Ratio | 67.1 dB A-Weighted |
| Maximum SPL | 98.4 dB SPL |
| Sensitivity | -4.4 dBFS/Pa at 1 kHz |
| Self Noise | 26.9 dB SPL(A) |
| DSP Features | Automatic Mixing, AEC, Noise Reduction, AGC, Compressor, Delay, EQ |
| AEC Tail Length | Up to 250 ms |
| Latency | 33.5 ms (excluding Dante latency) |
| Audio Network | Dante and AES67 |
| Audio I/O | 1 x RJ45 (Dante Input/Output) |
| Digital Audio | 24-bit / 48 kHz |
| Channel Count | 1 Automix Output, 1 AEC Reference Input |
| Power Requirement | Power over Ethernet (PoE+) |
| Power Consumption | 10.1 W (Maximum) |
| Mounting Type | Flush Mount (Drywall Ceiling) |
| Environmental Protection | IP5X Dust Resistant |
| Certifications | CE, FCC, REACH, UKCA, UL2043, WEEE |
| Operating Temperature | -6 to 40°C (20 to 104°F) |
| Storage Temperature | -28 to 73°C (-20 to 165°F) |
| Dimensions | 13.5 in (342.9 mm) Diameter |
| Weight | 5 lb (2.3 kg) |
| Color | White |
