Description

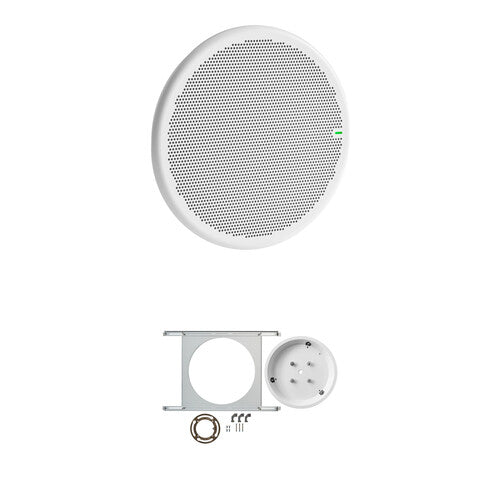

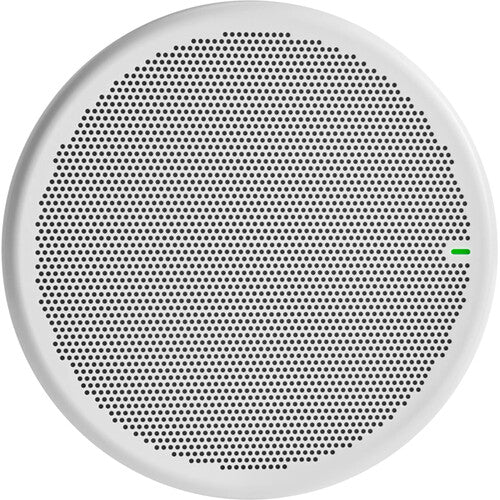

The Shure MXA901W-R-TB Ceiling Microphone and Tile Bridge Mount Bundle delivers premium AV conferencing audio in a sleek, low-profile design optimized for modern meeting spaces. Built around the Microflex Advance MXA901-R ceiling array microphone, this solution combines intelligent audio capture with effortless installation in drop-ceiling environments using the included tile bridge mounting kit.
With 85 integrated MEMS microphone elements and Single-Zone Automatic Coverage technology, the MXA901 captures clear, natural speech across a 20 x 20 ft area with no setup required. IntelliMix DSP automatically focuses on active speakers while eliminating background noise and echo, ensuring every participant is heard with clarity and consistency.

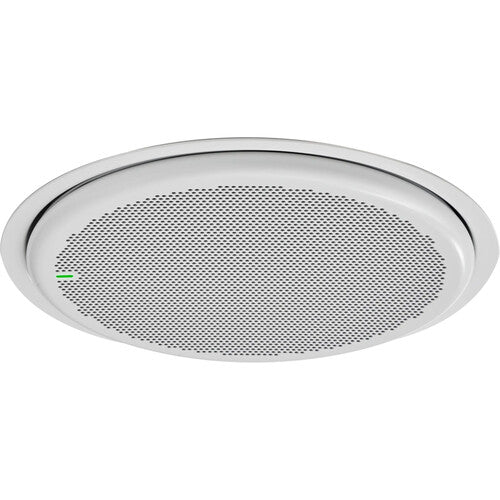

Designed for seamless integration into enterprise collaboration environments, this bundle supports Dante and AES67 networking, PoE+ power, and compatibility with leading platforms like Microsoft Teams and Zoom. The included tile bridge kit allows for near-flush mounting within ceiling grids, delivering both aesthetic appeal and acoustic performance for medium-sized conferencing rooms.
| Category | Specification |
|---|---|
| Product Type | Ceiling Array Microphone Bundle with Tile Bridge Mount |
| Microphone Model | Shure MXA901-R |
| Coverage Area | 20 x 20 ft (6.1 x 6.1 m) |
| Microphone Elements | 85 MEMS microphones |
| Technology | Single-Zone Automatic Coverage |
| DSP Features | Automatic Mixing, AEC, Noise Reduction, AGC, Compressor, Delay, 4-Band EQ, Mute, Gain |
| Frequency Response | 100 Hz to 20 kHz |
| Dynamic Range | 71.5 dB |
| Signal-to-Noise Ratio | 67.1 dB (A-weighted) |
| Maximum SPL | 98.4 dB SPL |
| Sensitivity | -4.4 dBFS/Pa at 1 kHz |
| Latency | 33.5 ms (excluding Dante latency) |
| Audio Network | Dante and AES67 |
| Audio I/O | 1 x RJ45 Ethernet (Dante) |
| Channel Count | 2 channels (1 Automix Output, 1 AEC Reference) |
| Sampling Rate / Bit Depth | 48 kHz / 24-bit |
| Power Requirement | PoE+ (Power over Ethernet) |
| Power Consumption | 10.1 W (maximum) |
| Mounting Type | Tile bridge mount for drop ceiling grids |
| Tile Bridge Compatibility | Ceiling thickness 0.375 to 1.25 inches |

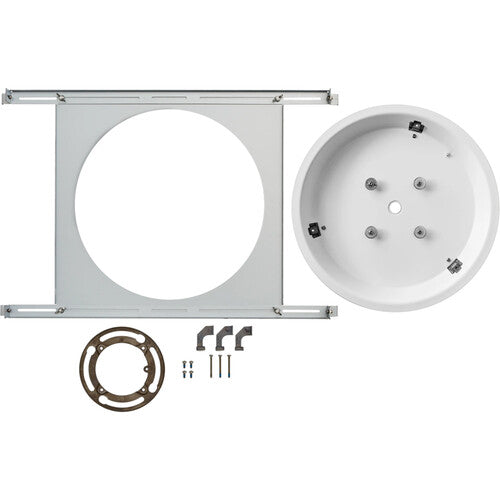

| Included Mounting Components | Tile bridge, ceiling mount, VESA mount, support arms, screws |
| Operating Temperature | 20°F to 104°F (-6°C to 40°C) |
| Storage Temperature | -20°F to 165°F (-28°C to 73°C) |
| Environmental Rating | Dust-resistant (IP5X) |
| Certifications | CE, FCC, REACH, UKCA, UL2043, WEEE |
| Dimensions | 13.5 in (342.9 mm) diameter |
| Weight | 5 lb (2.3 kg) |
| Color | White |
| Platform Compatibility | Microsoft Teams, Zoom, and other conferencing platforms |
| Ecosystem Integration | Compatible with Shure Microflex ecosystem devices |
| Security | Shure Audio Encryption supported |
