Description
The Shure MXA901W-R-GM-V is a complete ceiling microphone and suspension mounting bundle designed for medium-sized conferencing environments that demand exceptional audio clarity and clean, modern installation aesthetics. Combining the MXA901-R Microflex Advance ceiling array microphone with the A901-R-GM gripple suspension mount kit, this solution delivers high-performance audio capture with a professional free-floating installation.
Engineered with 85 built-in MEMS microphone elements, the MXA901 provides powerful, room-filling coverage up to 20 x 20 feet with no manual setup required. Single-Zone Automatic Coverage technology ensures all participants are captured clearly, while onboard IntelliMix DSP dynamically optimizes audio through automatic mixing, acoustic echo cancellation, noise reduction, and automatic gain control.

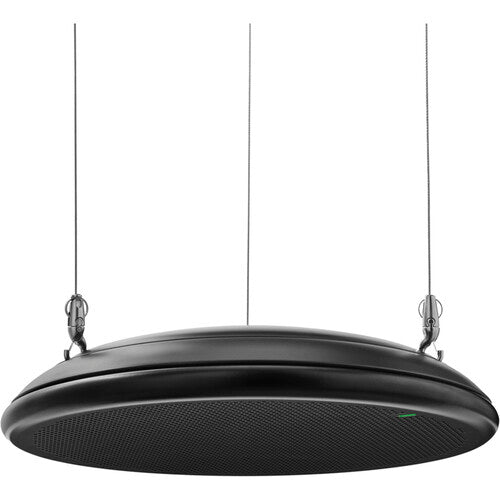

The included gripple suspension kit enables a sleek suspended ceiling installation using durable steel cables, making it ideal for open ceilings or spaces where traditional mounting is not practical. With Dante and AES67 networked audio support, PoE power, and compatibility with leading conferencing platforms such as Microsoft Teams and Zoom, this bundle offers a scalable, enterprise-ready audio solution for modern collaboration spaces.
| Feature | Specification |
|---|---|
| Product Type | Ceiling Array Microphone Bundle with Suspension Mount |
| Microphone Model | Shure MXA901-R (White) |
| Mounting Kit | Shure A901-R-GM Gripple Suspension Kit |
| Coverage Area | Up to 20 x 20 ft (6.1 x 6.1 m) |
| Microphone Elements | 85 MEMS microphones |
| Pickup Technology | Single-Zone Automatic Coverage |
| DSP Processing | IntelliMix DSP (AEC, Noise Reduction, AGC, Auto Mixing, EQ, Compressor, Delay) |
| Frequency Response | 100 Hz to 20 kHz |
| Dynamic Range | 71.5 dB |
| Signal-to-Noise Ratio | 67.1 dB A-weighted |
| Maximum SPL | 98.4 dB SPL |
| Latency | 33.5 ms (excluding Dante latency) |
| Audio Networking | Dante and AES67 |
| Audio Interface | 1 x RJ45 Ethernet (Dante) |
| Channel Output | 1 Automix Output, 1 AEC Reference |
| Sampling Rate / Bit Depth | 48 kHz / 24-bit |
| Power Requirements | Power over Ethernet (PoE) |
| Power Consumption | 10.1 W (maximum) |
| Mounting Options | Suspended (gripple), surface, in-ceiling, VESA |

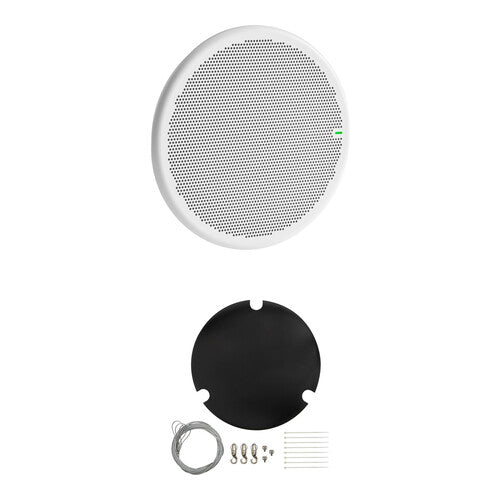

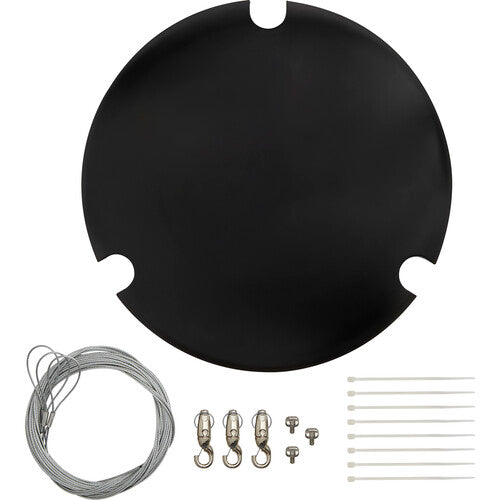

| Suspension Kit Details | 3 x 10 ft steel cables, connectors, eyelet screws, cable ties |
| Construction | Dust-resistant (IP5X rated) |
| Operating Temperature | 20°F to 104°F (-6°C to 40°C) |
| Storage Temperature | -20°F to 165°F (-28°C to 73°C) |
| Dimensions | 13.5 in (342.9 mm) diameter |
| Weight | 5 lb (2.3 kg) |
| Certifications | CE, FCC, REACH, UKCA, UL2043, WEEE |
| Software Support | Shure Designer System Configuration, Web UI |
| Platform Compatibility | Microsoft Teams, Zoom, and other conferencing platforms |
| Included Accessories | Mounting hardware, VESA bracket, network port cover |
| Warranty | Limited 2-Year Manufacturer Warranty |
