Description
The Shure MXA901W-R-PM-1.5-V is a complete ceiling microphone pole-mount bundle designed to deliver premium audio performance for medium-sized conferencing spaces. Centered around the MXA901-R Microflex Advance ceiling array microphone, this solution provides crystal-clear speech capture with a sleek, modern design that blends seamlessly into professional environments.
Equipped with 85 built-in MEMS microphone elements and Single-Zone Automatic Coverage technology, the MXA901-R ensures consistent voice pickup across a 20 x 20 ft area without requiring complex setup. IntelliMix DSP automatically optimizes audio by applying acoustic echo cancellation, noise reduction, automatic mixing, and gain control, allowing every participant to be heard clearly.
This bundle includes a pole-mount kit compatible with a 1.5" NPT pole, enabling a clean suspended installation ideal for spaces where traditional ceiling mounting is not preferred. With PoE connectivity, Dante and AES67 networking support, and compatibility with leading collaboration platforms, this solution is engineered for enterprise-grade AV deployments that demand reliability, scalability, and superior sound quality.
| Category | Specification |
|---|---|
| Product Type | Ceiling Microphone Pole-Mount Bundle |

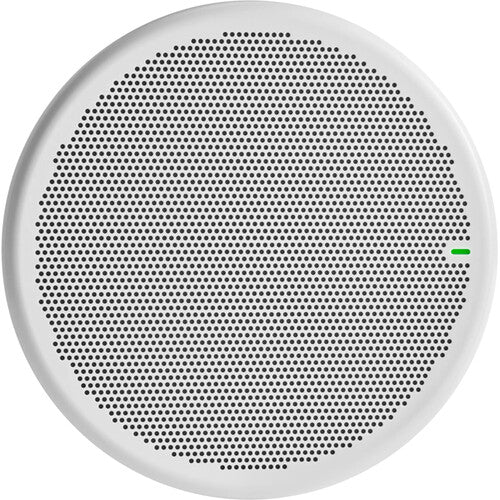

| Microphone Model | Shure MXA901-R |

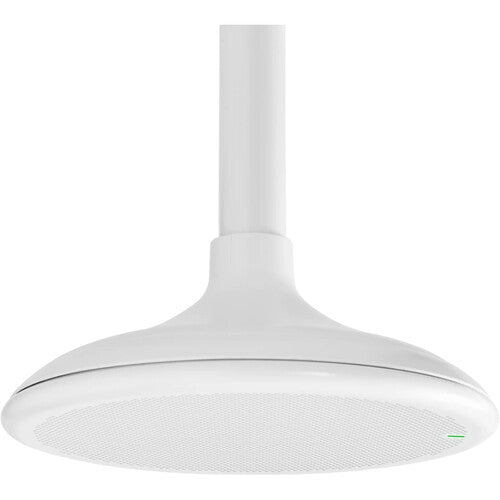

| Mounting Type | Suspended Pole-Mount (1.5" NPT Pole Compatible) |
| Coverage Area | 20 x 20 ft (6.1 x 6.1 m) |
| Microphone Elements | 85 x MEMS |
| Pickup Technology | Single-Zone Automatic Coverage |
| DSP Features | IntelliMix DSP (AEC, Noise Reduction, AGC, Auto Mixing, EQ, Compressor, Delay) |
| Frequency Response | 100 Hz to 20 kHz |
| Dynamic Range | 71.5 dB |
| Signal-to-Noise Ratio | 67.1 dB A-Weighted |
| Maximum SPL | 98.4 dB SPL |
| Latency | 33.5 ms (excluding Dante latency) |
| Audio Interface | 1 x RJ45 (Dante / AES67) |
| Channel Count | 1 Automix Output, 1 AEC Reference |
| Sample Rate / Bit Depth | 48 kHz / 24-bit |
| Power Requirement | Power over Ethernet (PoE) |
| Power Consumption | 10.1 W (Maximum) |

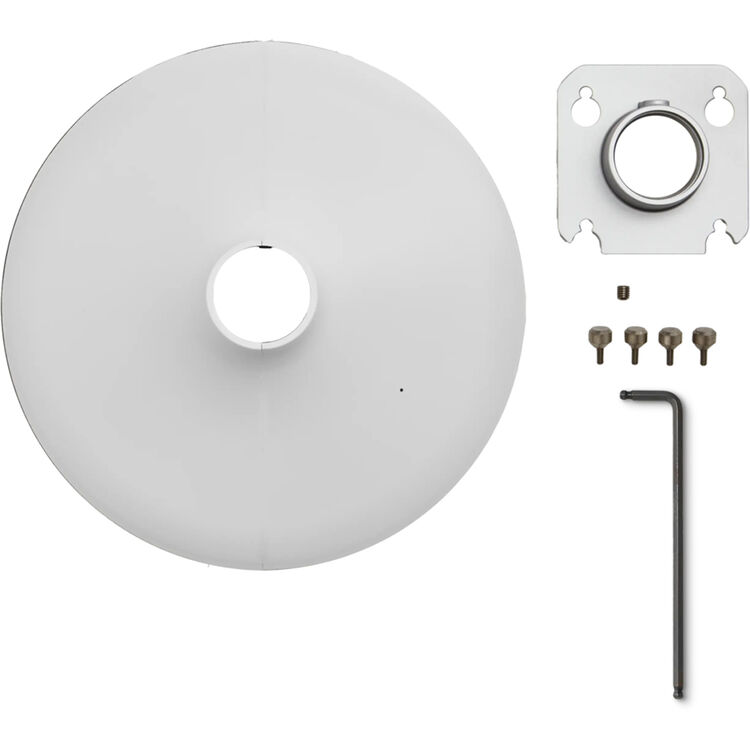

| Mounting Kit Included | Yes (Pole Mount Cover, VESA Bracket, Screws, Hex Key) |
| Compatibility | Shure Microflex Ecosystem |
| Network Protocols | Dante, AES67 |
| Certifications | CE, FCC, REACH, UKCA, UL2043, WEEE |
| Environmental Rating | Dust-Resistant (IP5X) |
| Operating Temperature | -6°C to 40°C |
| Dimensions | 13.5 in (342.9 mm) Diameter |
| Weight | 5 lb (2.3 kg) |
| Color | White |

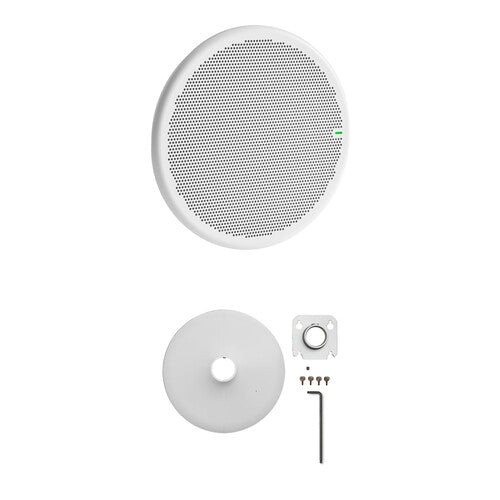

| Included Items | MXA901-R Microphone, Pole-Mount Kit, Mounting Hardware |
