Description

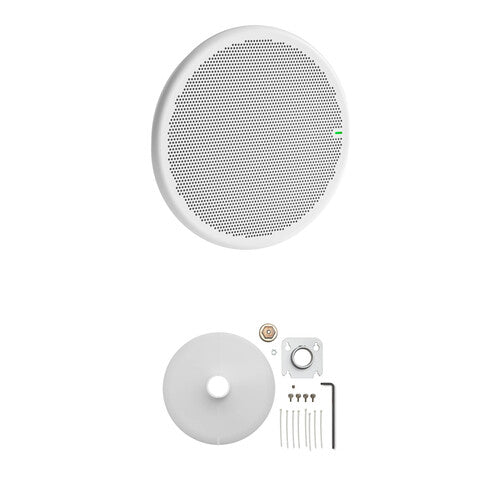

The Shure MXA901-R Ceiling Array Microphone with 3/8" Pole Mount Kit is a complete, enterprise-ready audio solution designed for medium-sized conferencing environments. Combining Shure’s advanced Microflex Advance array microphone technology with a clean, suspended mounting option, this bundle delivers exceptional speech clarity while maintaining a sleek, modern aesthetic.
Featuring 85 integrated MEMS microphone elements, the MXA901-R provides consistent 20 x 20 ft coverage with no manual setup required. Single-Zone Automatic Coverage technology intelligently captures multiple speakers while minimizing unwanted noise from outside the coverage area. Integrated IntelliMix DSP ensures crystal-clear audio by automatically applying echo cancellation, noise reduction, automatic gain control, and mixing.

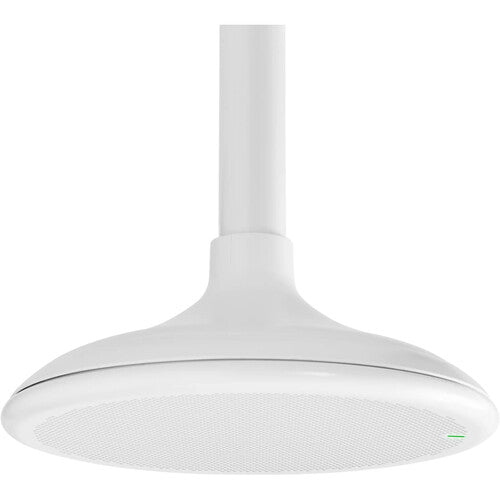

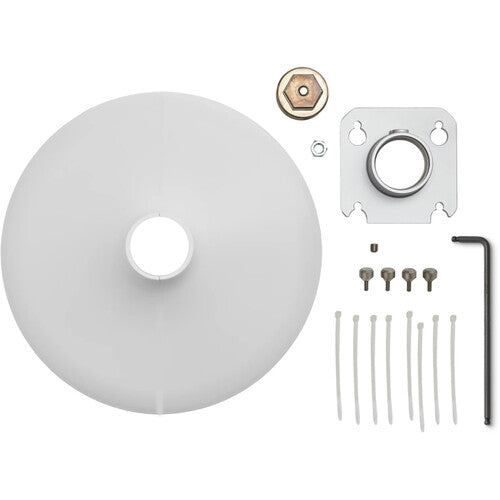

The included 3/8" pole mount kit allows for a professional suspended installation, ideal for open ceilings or spaces where in-ceiling mounting is not practical. Powered via PoE+, the system simplifies deployment while supporting Dante and AES67 networked audio for seamless integration into modern AV infrastructures.
Certified for leading conferencing platforms such as Microsoft Teams and Zoom, this bundle is built for reliability, scalability, and superior collaboration experiences.
| Specification | Details |
|---|---|
| Product Type | Ceiling Array Microphone with Pole Mount Kit |
| Microphone Model | Shure MXA901-R |
| Included Mount | 3/8" Pole Mount Kit (A901-R-PM-3/8IN) |
| Coverage Area | 20 x 20 ft (6.1 x 6.1 m) |
| Microphone Elements | 85 MEMS microphones |
| Pickup Technology | Single-Zone Automatic Coverage |
| Frequency Response | 100 Hz to 20 kHz |
| Dynamic Range | 71.5 dB |
| Signal-to-Noise Ratio | 67.1 dB A-weighted |
| Maximum SPL | 98.4 dB SPL |
| Sensitivity | -4.4 dBFS/Pa at 1 kHz |
| Self Noise | 26.9 dB SPL(A) |
| Latency | 33.5 ms (excluding Dante latency) |
| DSP Features | AEC, Noise Reduction, AGC, Automatic Mixing, Compressor, Delay, EQ, Mute, Gain |
| AEC Tail Length | Up to 250 ms |
| Audio Networking | Dante, AES67 |
| Audio I/O | 1 x RJ45 Ethernet |
| Channels | 2 (Automix Output + AEC Reference) |
| Sampling Rate | 48 kHz |
| Bit Depth | 24-bit |
| Power Requirement | PoE+ |
| Power Consumption | 10.1 W (max) |
| Mounting Options | Ceiling, Suspended via 3/8" Threaded Rod |
| Color | White |
| Environmental Rating | IP5X Dust Resistant |
| Operating Temperature | 20°F to 104°F (-6°C to 40°C) |
| Dimensions | 13.5" diameter |
| Weight | 5 lb (2.3 kg) |
| Certifications | CE, FCC, REACH, UKCA, UL2043, WEEE |
| Platform Compatibility | Microsoft Teams, Zoom, and other conferencing platforms |
| Software Support | Shure Designer, Web Interface |
| Security | Shure Audio Encryption |
| Included Accessories | VESA Bracket, Mounting Hardware, Cable Ties, Threaded Rod Adapter, Jam Nut, Hex Key |
| Warranty | 2-Year Manufacturer Warranty |
