Description

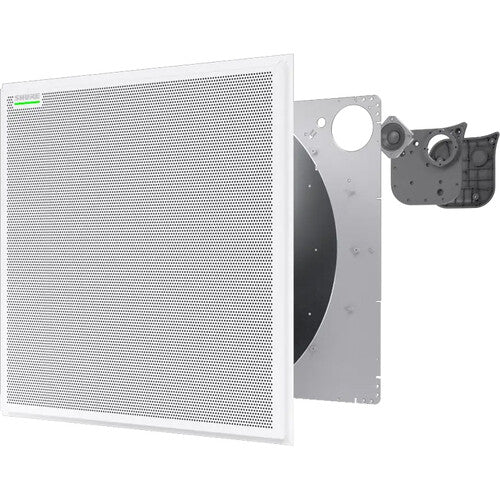

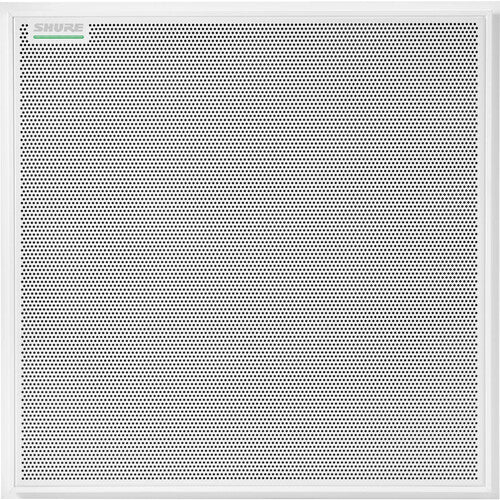

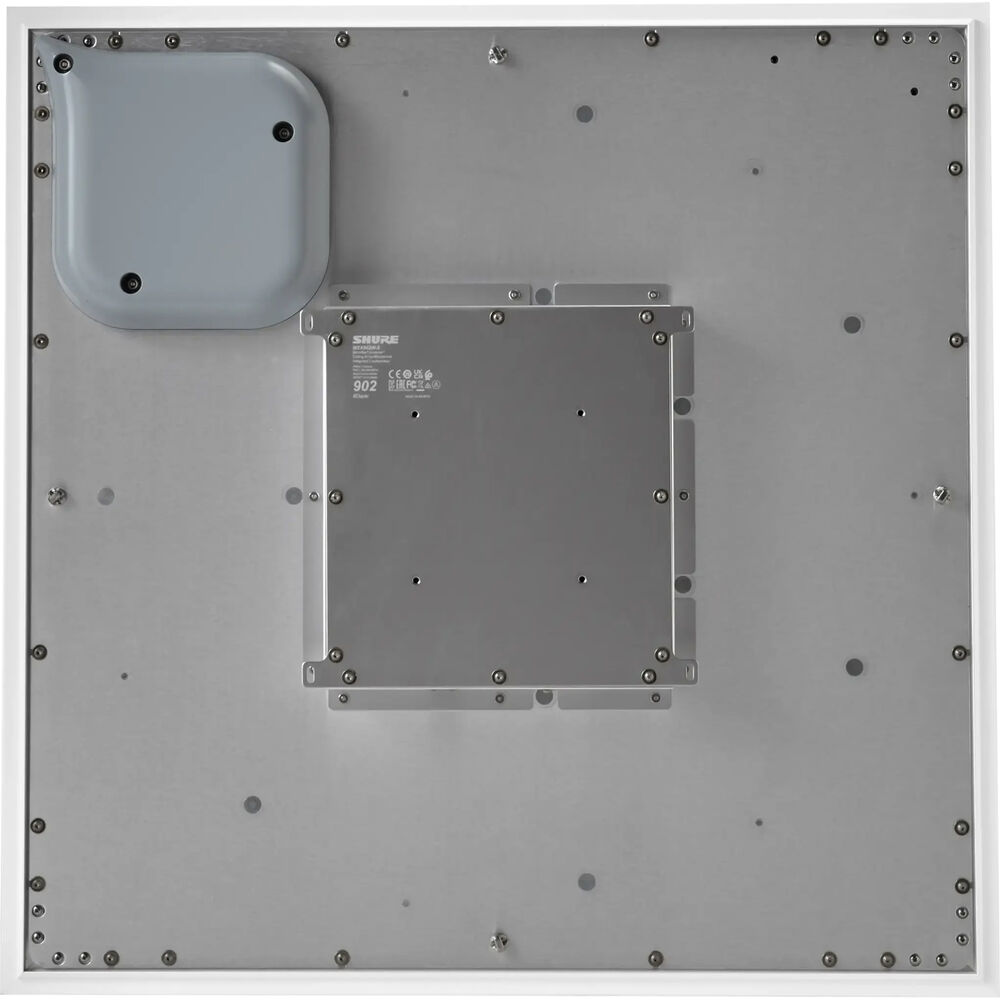

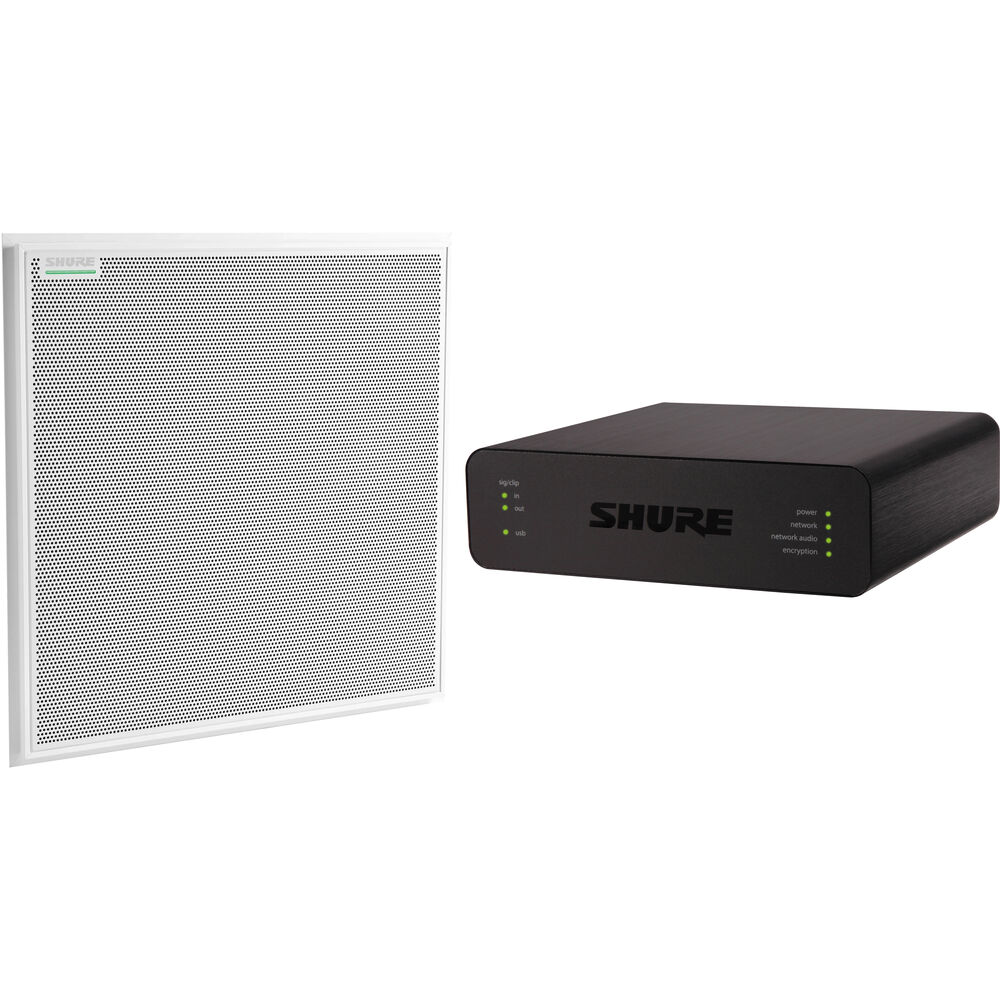

The Shure MXA902W-S-USB Audio Conferencing Kit is a complete, pre-configured solution designed to deliver premium audio performance in small- to medium-sized meeting spaces. Combining the MXA902 ceiling array microphone and loudspeaker with the ANIUSB-MATRIX USB audio network interface, this all-in-one system simplifies deployment while ensuring crystal-clear speech capture and playback.
Engineered for effortless installation, the system uses a single PoE+ cable to handle power, audio, and control, eliminating the need for complex wiring. The MXA902 features advanced Single-Zone Automatic Coverage technology, ensuring every participant within a 20 x 20 ft space is heard clearly, while IntelliMix DSP enhances audio quality with echo cancellation, noise reduction, and automatic gain control.

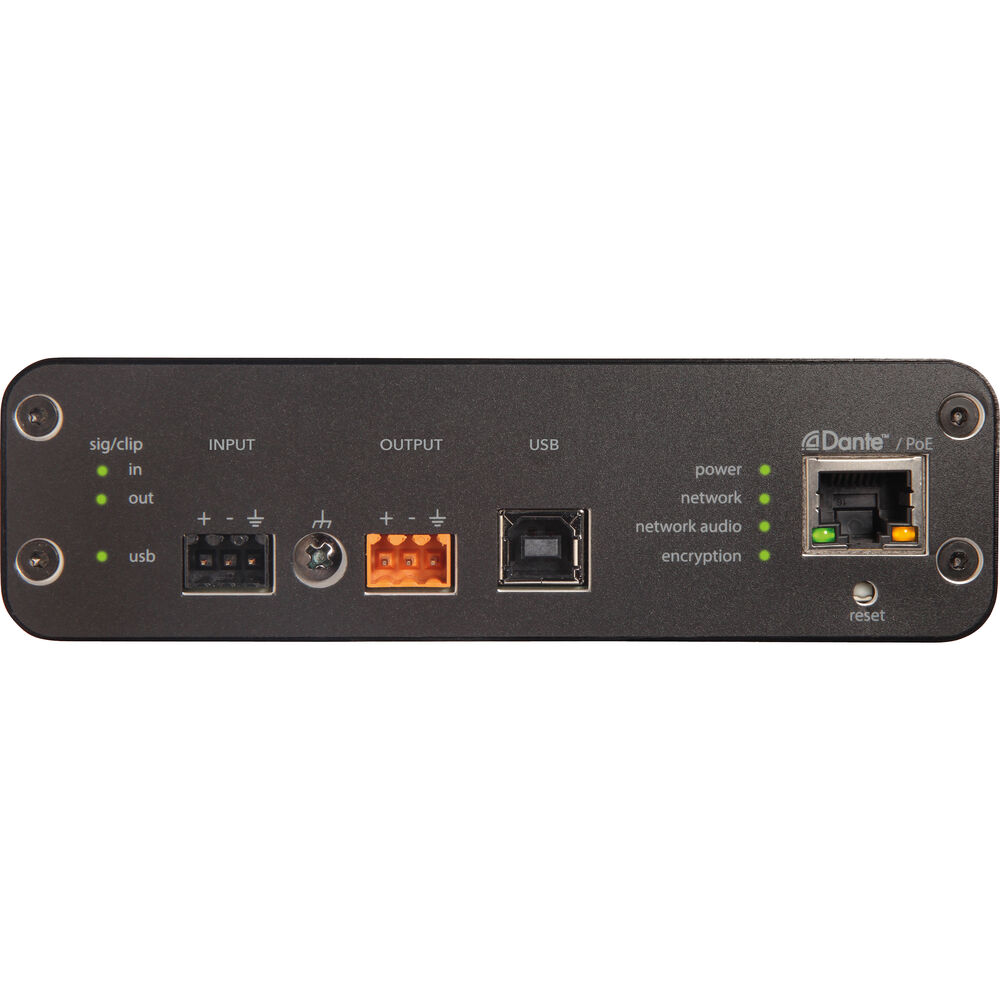

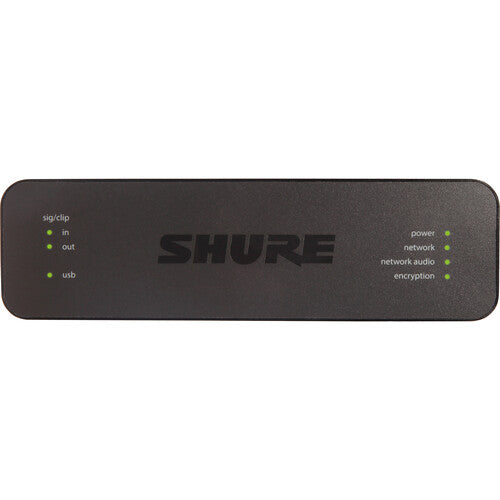

The included ANIUSB-MATRIX interface enables seamless integration with laptops and room-based conferencing systems via USB, while supporting Dante and AES67 networking for flexible, enterprise-grade audio routing. Designed for compatibility with major collaboration platforms, this kit provides a streamlined, secure, and scalable conferencing experience without requiring specialized certification.
| Category | Specification |
|---|---|
| System Type | Complete Audio Conferencing Kit |
| Included Components | MXA902 Ceiling Array Mic/Loudspeaker, ANIUSB-MATRIX Interface, Mounting Accessories |
| Recommended Room Size | Up to 20 x 20 ft Coverage |
| Microphone Type | Ceiling Array Microphone |
| Loudspeaker Type | Integrated Wide-Dispersion Loudspeaker |
| DSP Technology | IntelliMix DSP (AEC, Noise Reduction, AGC, Automatic Mixing) |
| Audio Networking | Dante, AES67 |
| Connectivity | RJ45 (PoE+, Audio, Control), USB (ANIUSB-MATRIX) |
| USB Interface | 1x Input / 1x Output |
| Dante Channels | 4 Input / 2 Output |
| Analog Audio I/O | 1 Input / 1 Output |
| Power Source | Power over Ethernet (PoE+) |
| Power Consumption | 24 W (Maximum) |

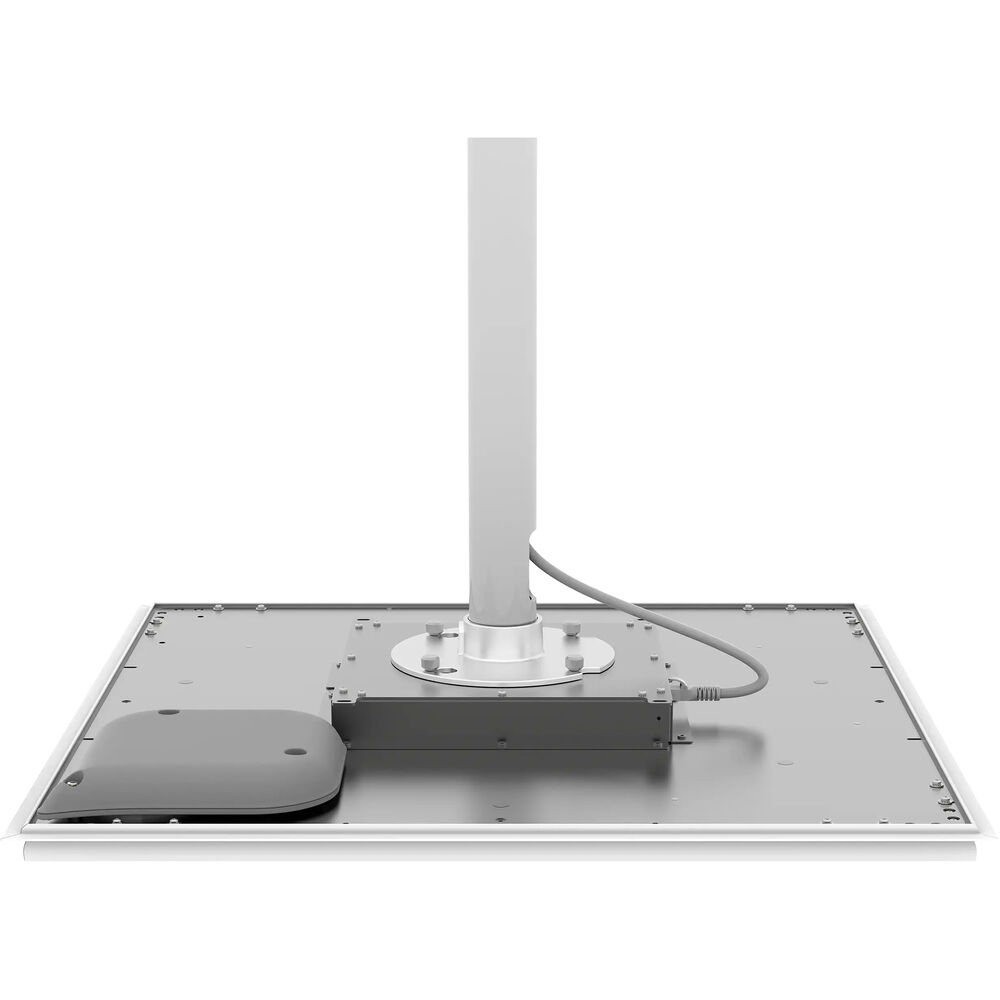

| Mounting Options | Ceiling Tile (24"), Suspension or Pole Mount Compatible |
| Form Factor | Square Ceiling Array (24") |
| Color | White (Paintable Finish) |
| Operating Temperature | 20 to 104°F (-6 to 40°C) |
| Storage Temperature | -20 to 165°F (-28 to 73°C) |
| Certifications | CE, FCC, ICES-003, UL2043 (Plenum Rated), REACH, UKCA, WEEE |
| Dimensions | 23.8 x 2.21 x 0.4 in |
| Weight | 12.7 lb |
| Network Features | Audio Encryption, Remote Control Integration |
| Compatibility | Microsoft Teams, Zoom, and Other Collaboration Platforms |
| Installation Requirement | No Shure Certification Required |
