Description

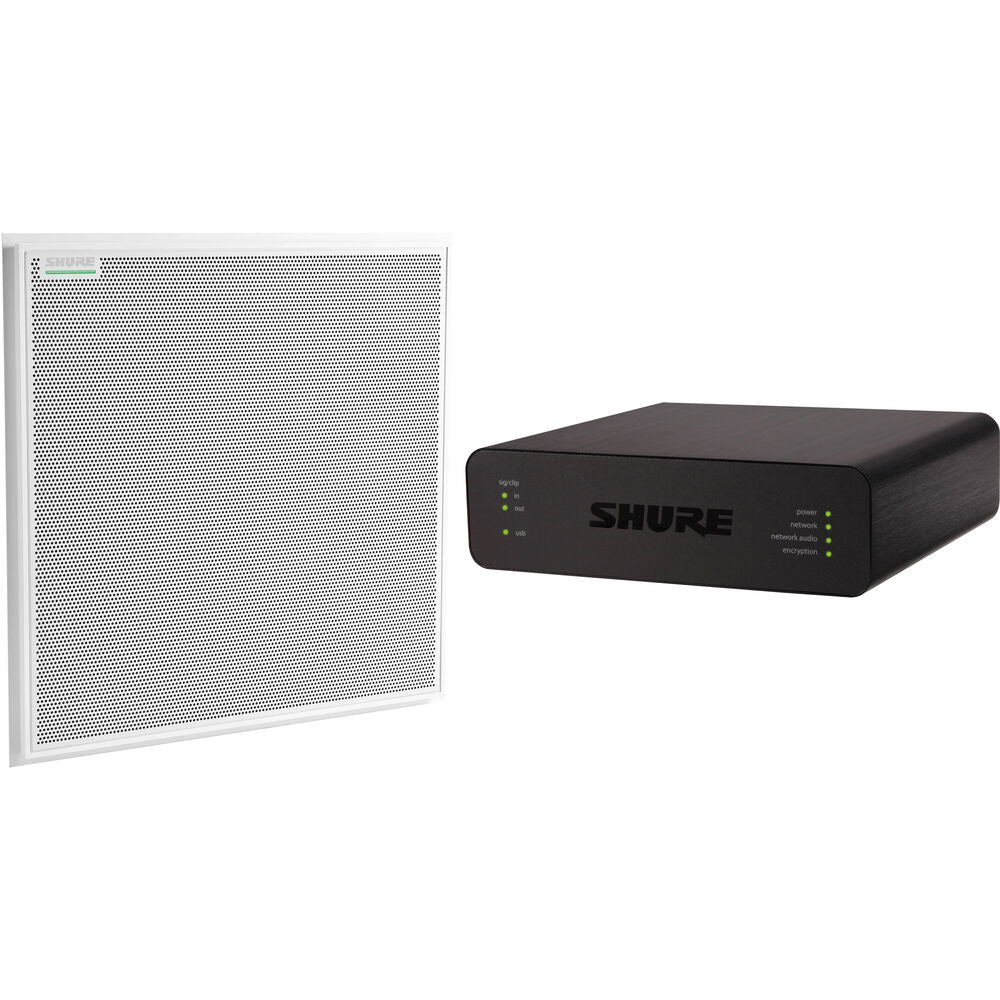

The Shure MXA902 Audio Conferencing Kit with ANIUSB-MATRIX delivers a complete, enterprise-ready audio solution designed for small- to medium-sized meeting spaces. Combining a ceiling-mounted microphone array and loudspeaker with a powerful USB network audio interface, this pre-configured system simplifies deployment while ensuring exceptional speech clarity and consistent coverage.
Engineered for modern collaboration environments, the MXA902 provides seamless 20 x 20 ft room coverage using advanced array technology and integrated IntelliMix DSP. Automatic mixing, echo cancellation, noise reduction, and gain control work together to deliver natural, intelligible speech without the need for complex setup or certification.

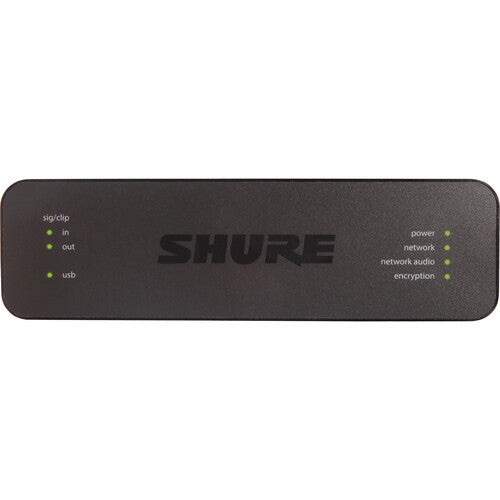

The included ANIUSB-MATRIX interface enables flexible connectivity between Dante network audio, analog systems, and USB-based conferencing platforms. With single-cable PoE+ operation for power, audio, and control, the system reduces installation complexity while maintaining secure, high-performance audio transmission.
Ideal for boardrooms and conferencing spaces, this solution offers clean aesthetics, reliable performance, and effortless integration with leading collaboration platforms.
| Specification | Details |
|---|---|
| Product Type | Audio Conferencing Kit (Ceiling Array Mic/Loudspeaker + USB Interface) |
| Included Components | MXA902 Ceiling Array Mic/Loudspeaker, ANIUSB-MATRIX Interface, Mounting Accessories, Cabling |
| Coverage Area | Up to 20 x 20 ft (6 x 6 m) |
| Microphone Type | Integrated MEMS Array Microphone |
| Loudspeaker | Integrated 2.5" Wide-Dispersion Speaker |
| DSP Technology | IntelliMix DSP (AEC, Noise Reduction, Auto Mixing, AGC) |
| Audio Networking | Dante and AES67 |

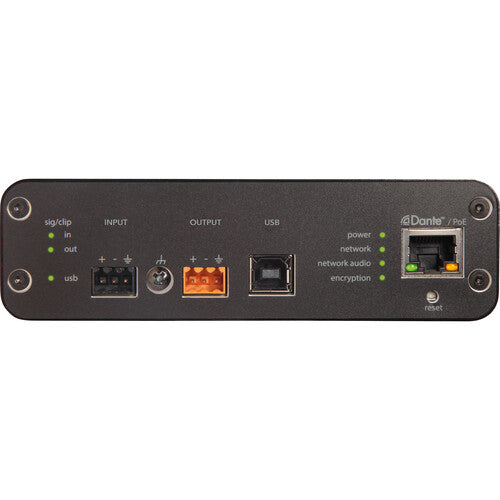

| Interface Connectivity | USB (1 in/1 out), Dante (4 in/2 out), Analog (1 in/1 out) |
| Signal Routing | Internal Matrix Mixer with Flexible Routing |
| Power | Power over Ethernet (PoE+) |
| Power Consumption | Up to 24 W |
| Control & Integration | Third-Party Control System Compatible (Command Strings) |
| Mounting Options | Ceiling Tile (60 cm Euro Standard), Suspension Options Available |
| Form Factor | Square Ceiling Tile Design |
| Color | White (Paintable Finish) |
| Certifications | CE, FCC, ICES-003, UL2043 Plenum Rated, REACH, UKCA, WEEE |
| Operating Temperature | -6°C to 40°C (20°F to 104°F) |
| Storage Temperature | -28°C to 73°C (-20°F to 165°F) |
| Dimensions | 593.8 x 56.04 x 10.5 mm |
| Weight | 5.8 kg |
| Security | Audio Encryption Supported |
| Platform Compatibility | Microsoft Teams, Zoom, and Other Conferencing Platforms |
| Installation | Pre-configured, Single-Cable Deployment |
