Description

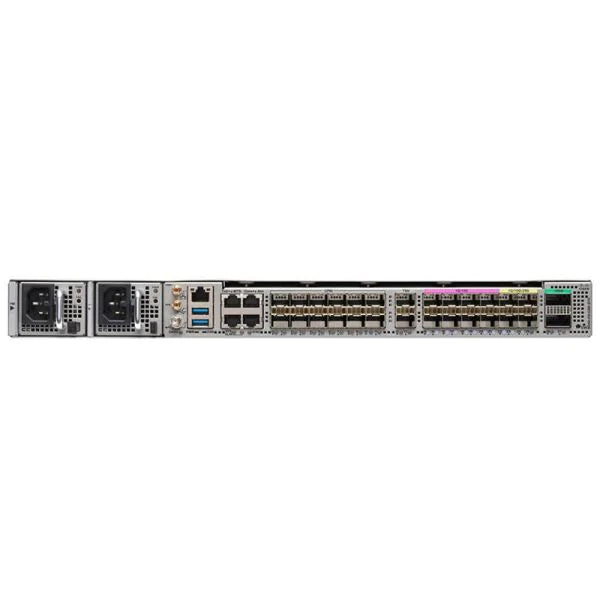

The Cisco N540-24Z8Q2C-SYS is a high-performance, medium-density routing platform designed for next-generation service provider, mobile backhaul, and aggregation networks. Part of the Cisco Network Convergence System (NCS) 540 Series, this 1RU router delivers exceptional throughput, flexible port configurations, and hardened reliability for both indoor and outdoor deployments.
This base hardware system features 24x 1G/10G ports, 8x 10G/25G ports, and 2x 40G/100G uplinks, enabling scalable bandwidth for access and aggregation use cases. Powered by Cisco IOS XR, the platform supports advanced routing, automation, telemetry, segment routing, and precise timing synchronization.
The N540-24Z8Q2C-SYS operates under Cisco’s flexible consumption and Smart Licensing model, allowing software features and bandwidth to scale as network demands grow. With redundant power supplies, modular fans, secure boot, and Trust Anchor technology, it is built for carrier-grade availability, security, and operational efficiency.
| Specification | Details |
|---|---|
| Product Series | Cisco Network Convergence System 540 |
| SKU | N540-24Z8Q2C-SYS |
| Form Factor | 1RU Rack-Mountable |
| Ports (Downlink) | 24 × 1G/10G SFP+ |
| Ports (Mid-range) | 8 × 10G/25G SFP28 |
| Ports (Uplink) | 2 × 40G/100G QSFP28 |
| Forwarding Performance | Up to 300 Mpps |
| Processor | Quad-core x86 CPU |
| System Memory | 32 GB DRAM |
| Storage | 128 GB |
| Operating System | Cisco IOS XR |
| Timing & Sync | SyncE, IEEE 1588v2 PTP, GNSS support |
| Power Supplies | Dual hot-swappable AC or DC (1+1 redundancy) |
| Cooling | Modular fan tray with redundant fans |
| Airflow | Front-to-Back |
| Operating Temperature | Industrial-grade, hardened design |
| Security | Secure boot, image signing, Trust Anchor |
| Licensing Model | Smart Licensing with flexible consumption |
| Typical Use Cases | 5G backhaul, aggregation, edge routing, metro access |
