Description

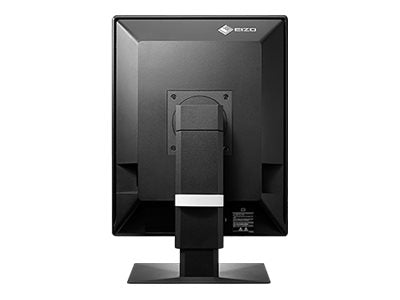

The EIZO RadiForce GX560 21.3" 5MP Grayscale Diagnostic LED Monitor is purpose-built for breast imaging and digital mammography, delivering unparalleled clarity, precision, and workflow efficiency. With a native resolution of 2048 x 2560 and support for 1024 gray levels, this high-performance display allows radiologists to view the finest details essential for accurate diagnosis.
Powered by EIZO’s innovative Work-and-Flow technology, the GX560 simplifies complex imaging workflows and reduces visual fatigue. Its Digital Uniformity Equalizer (DUE) ensures consistent brightness across the screen, while Auto Brightness Stabilization maintains optimal luminance over time. Designed for comfort and productivity, the display features a sleek, anti-glare panel, height, swivel, tilt, and pivot adjustments, and an integrated presence sensor for energy-efficient operation.
With advanced calibration features, compliance with DICOM Part 14, and a comprehensive range of connectivity options, the GX560 is a trusted solution for diagnostic imaging environments that demand accuracy, reliability, and seamless integration.
| Category | Specification |
|---|---|
| Display | 21.3" LED-backlit LCD / TFT active matrix |
| Resolution | 2048 x 2560 (5MP) |
| Aspect Ratio | 4:5 |
| Pixel Pitch | 0.165 mm |
| Brightness | 2500 cd/m² |
| Contrast Ratio | 1700:1 |
| Gray Levels | 1024 (10-bit) |
| Response Time | 12 ms (On/Off) |
| Viewing Angles | 178° horizontal / 178° vertical |
| Screen Coating | Anti-glare |
| Panel Type | IPS |
| Backlight Technology | LED |
| Refresh Rates | Vertical: 23–61 Hz / Horizontal: 31–135 kHz |
| Built-in Features | Presence sensor, USB 2.0 hub |
| Key Functions | Digital Uniformity Equalizer (DUE), Auto Brightness Stabilization, DICOM calibrated, CAL Switch, Integrated Front Sensor, Sharpness Recovery, Ambient Light Sensor |
| Work-and-Flow | Advanced workflow tools to optimize radiology imaging processes |
| Connectivity | DVI-D (dual link), 2 x DisplayPort, DisplayPort output, 2 x USB 2.0 upstream (Type B), 2 x USB 2.0 downstream (Type A) |
| Ergonomics | Height, pivot (rotation), swivel, tilt |
| Tilt / Swivel / Rotation | Tilt: -5° to +30° / Swivel: 70° / Rotation: 90° |
| Height Adjustment | 3.5 in |
| VESA Mounting | 100 x 100 mm |
| Dimensions (with stand) | 14 x 10.4 x 18.7 in |
| Weight (with stand) | 17.64 lbs |
| Power Supply | AC 120/230 V (50/60 Hz) |
| Power Consumption | Typical: 28 W / Off: 1 W |
| Compliance | FCC Class B, CCC, RoHS, WEEE, DICOM Part 14, FDA 510(k), EN 60601-1, CSA C22.2 No. 601.1, IEC 60601-1, VCCI Class B, EAC, China RoHS, RCM, ANSI/AAMI ES60601-1, CAN ICES-3 Class B |
| Included Accessories | 2 x DisplayPort cables (10 ft), 2 x USB cables (10 ft) |
| Software | RadiCS LE calibration software |
| Warranty | 5-year limited warranty |
