Description

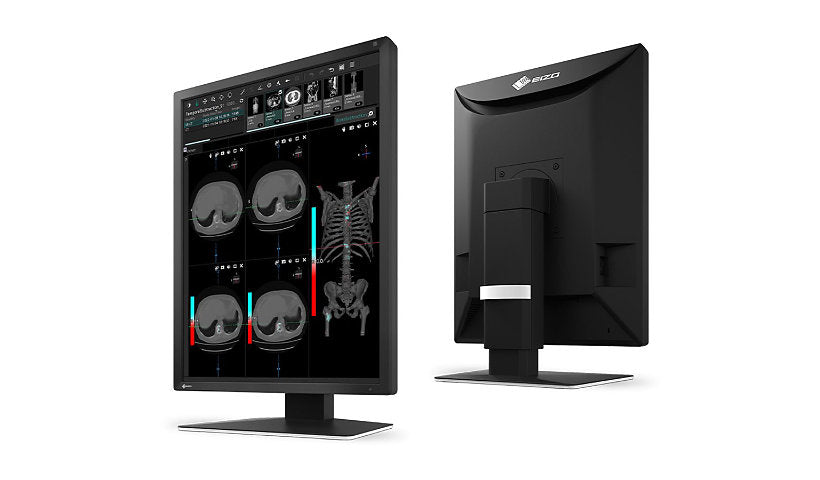

The EIZO RadiForce MX217 is a 21.3-inch 2MP color medical LCD monitor designed for accurate and consistent image display in healthcare environments. Built with DICOM Part 14 compliance, this display ensures precise grayscale rendering required for diagnostic review, CT, MRI, CR, DR, and PACS applications. Its 1100 cd/m² high brightness, 1800:1 contrast ratio, and 10-bit color support deliver superior clarity and detail, while the Digital Uniformity Equalizer (DUE) and brightness stabilization guarantee uniform luminance across the screen.
The MX217 features EIZO’s advanced Work-and-Flow tools — including Hide-and-Seek, Switch-and-Go, Point-and-Focus, and Instant Backlight Booster — to streamline image reading workflows. With CAL Switch presets for multiple viewing modes and an Integrated Front Sensor for automatic DICOM calibration, maintaining consistent image quality is effortless. DisplayPort and DVI-D inputs, USB connectivity, and daisy-chain support simplify multi-monitor setups.
Compact and reliable, the RadiForce MX217 is ideal for radiology reading rooms, control stations, and clinical environments that require precise imaging performance with long-term stability and minimal maintenance.
| Specification | Details |
|---|---|
| Model | MX217-BK |
| Panel Type | Color (IPS) LCD |
| Backlight | LED |
| Screen Size | 21.3" (54.1 cm) |
| Native Resolution | 1536 x 2048 (3:4 aspect ratio) |
| Viewable Image Size (H x V) | 324.9 x 433.2 mm |
| Pixel Pitch (H x V) | 0.2115 x 0.2115 mm |
| Display Colors | 10-bit (DisplayPort): 1.07 billion colors from a 543 billion palette; 8-bit: 16.77 million colors |
| Viewing Angles (H / V) | 178° / 178° |
| Brightness (Typical) | 1100 cd/m² |
| Recommended Brightness for Calibration | 500 cd/m² |
| Contrast Ratio (Typical) | 1800:1 |
| Response Time (Typical) | 25 ms (black-white-black) |
| Video Signal Input | DisplayPort x 2, DVI-D (dual link) |
| Output Terminals | DisplayPort (daisy chain) |
| Digital Scanning Frequency (H / V) | 31 - 127 kHz / 29 - 61.5 Hz |
| USB Upstream | USB 2.0: Type-B x 2 |
| USB Downstream | USB 2.0: Type-A x 2 |
| Dedicated Charging Port | USB Type-C (15 W max.) |
| Power Input | AC 100 - 240 V, 50 / 60 Hz |
| Typical Power Consumption | 36 W |
| Maximum Power Consumption | 105 W |
| Power Save Mode | 1 W or less |
| Sensors | Backlight Sensor, Integrated Front Sensor, Ambient Light Sensor |
| Brightness Stabilization | Yes |
| Digital Uniformity Equalizer (DUE) | Yes |
| Hybrid Gamma PXL | Yes |
| Work-and-Flow Functions | Hide-and-Seek, Switch-and-Go, Point-and-Focus, Instant Backlight Booster |
| Preset Modes | CAL Switch (DICOM, CAL1, CAL2, Custom, sRGB, Text) |
| OSD Languages | EN, DE, FR, IT, JP, ZH (Simplified & Traditional), ES, SV |
| Net Weight | 8 kg (5.2 kg without stand) |

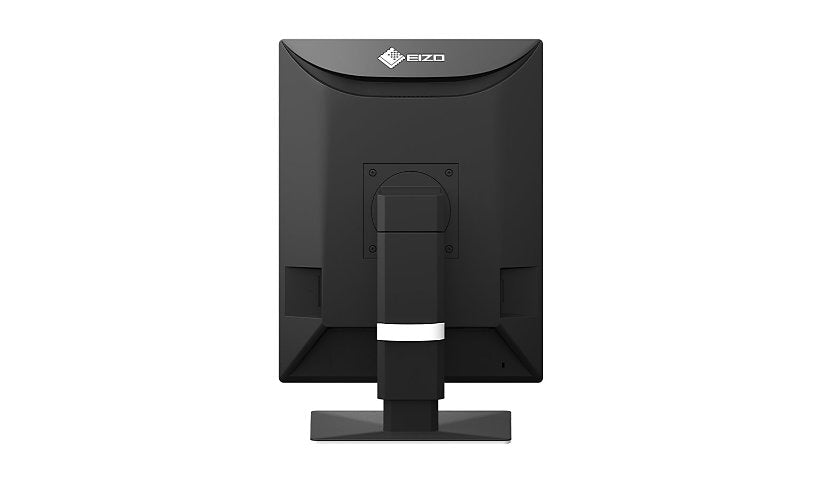

| VESA Mounting | 100 x 100 mm |
| Certifications | CE / UKCA (Medical Device), ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No.60601-1, IEC/EN60601-1, FCC-B, RCM, RoHS, WEEE, CCC, EAC |
| FDA Clearance | 510(k) Clearance for General Radiography |
| Warranty | 5 Years |
