Description

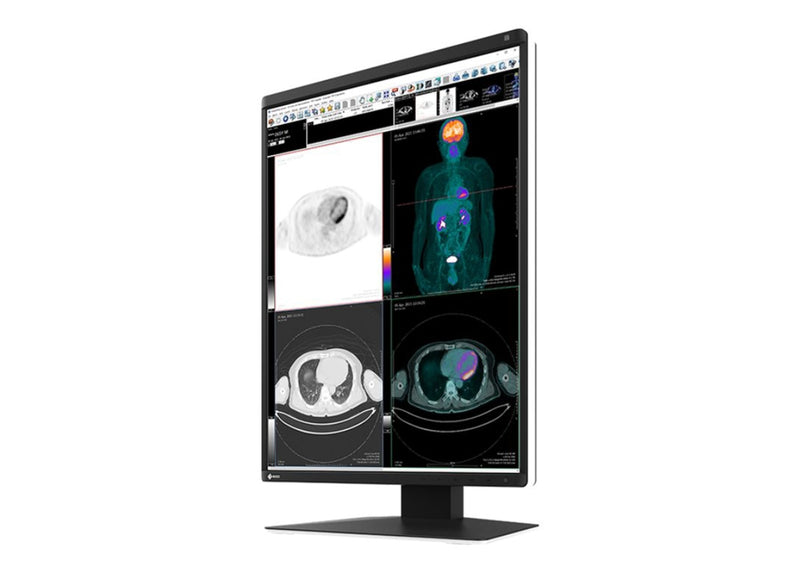

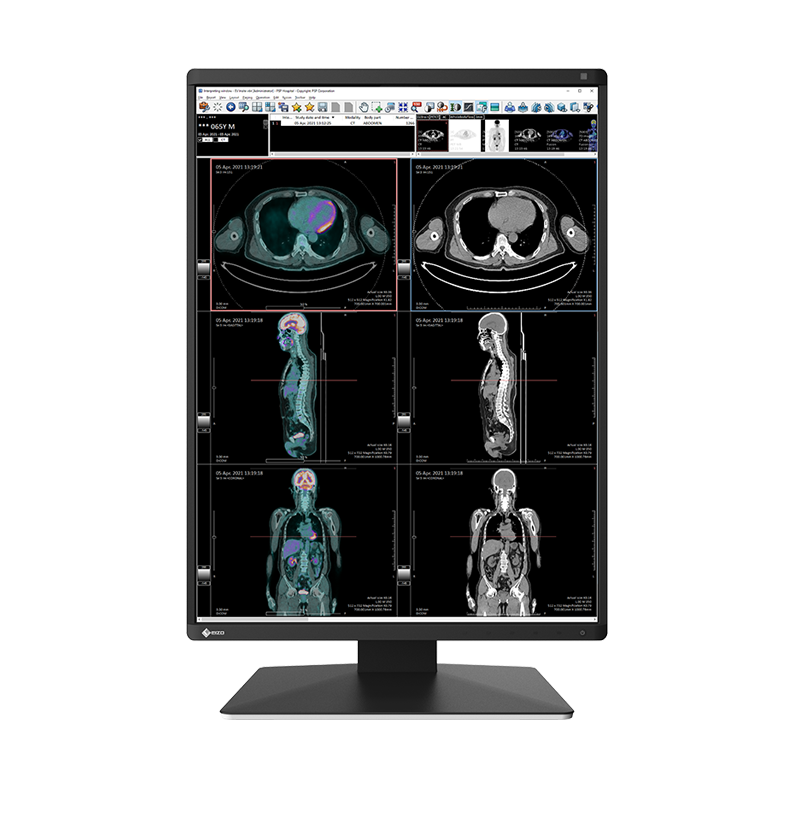

The EIZO RadiForce RX370 is a high-performance 3MP LED medical display designed to deliver exceptional accuracy for both monochrome and color imaging. Ideal for radiology, diagnostic review, and clinical environments, this 21.3-inch monitor ensures superior visibility and workflow efficiency with advanced image processing technology.
Its Hybrid Gamma PXL feature intelligently analyzes every pixel and optimizes grayscale and color rendering, displaying monochrome images (e.g., CR, DR) in DICOM Part 14 grayscale while faithfully reproducing color content such as endoscopy, nuclear medicine, or 3D rendering in Gamma 2.2. The result is seamless hybrid viewing on a single screen.
For rapid visual assessments, the Instant Backlight Booster temporarily boosts brightness, helping clinicians identify fine details in critical moments. Calibration is effortless thanks to the Integrated Front Sensor (IFS) and included RadiCS LE software, ensuring long-term display consistency without external tools. Combined with ergonomic adjustments, advanced uniformity control, and versatile connectivity, the RX370 enhances diagnostic precision and clinical productivity.
| Feature | Details |
|---|---|
| Manufacturer | EIZO |
| Model | RadiForce RX370 |
| Display Type | LED-backlit LCD monitor |
| Screen Size | 21.3" (54.1 cm) |
| Resolution | 3MP (1536 × 2048) |
| Aspect Ratio | 3:4 |
| Panel Technology | IPS (TFT active matrix) |
| Brightness | 1100 cd/m² |
| Contrast Ratio | 1800:1 |
| Color Support | 1.07 billion colors |
| Response Time | 25 ms (black-white-black) |
| Viewing Angles | 178° horizontal / 178° vertical |
| Pixel Pitch | 0.2115 mm |
| Display Coating | Anti-glare |
| Special Features | Hybrid Gamma PXL, Instant Backlight Booster, Integrated Front Sensor (IFS), Brightness Stabilization, Digital Uniformity Equalizer (DUE), Ambient Light Sensor, CAL Switch |
| Calibration | DICOM Part 14 with RadiCS LE software |
| Height Adjustment | 3.5" |
| Tilt / Swivel / Pivot | -5° to +30° / 70° / 90° |
| Connectivity | 2 × DisplayPort, DVI-D (dual link), DisplayPort output, 2 × USB 2.0 downstream, 2 × USB 2.0 upstream, USB-C downstream (15W) |
| Built-in Devices | USB 2.0 Hub |
| Power Consumption (Typical) | 36 W |
| Max Power Consumption | 105 W |
| Standby Power Consumption | 1 W |
| Voltage / Frequency | AC 100–240 V / 50–60 Hz |
| Mount Compatibility | VESA 100 × 100 mm |
| Certifications | ANSI/AAMI ES60601-1, FDA 510(k), EN 60601-1, RoHS, FCC Class B, VCCI Class B, IEC 60601-1, CAN ICES-3 Class B |
| Dimensions (With Stand) | 13.4" × 7.9" × 19" |
| Weight (With Stand) | 17.64 lbs (8 kg) |
| Color | Black |
| Warranty | 5 Years Limited Warranty |
