Description

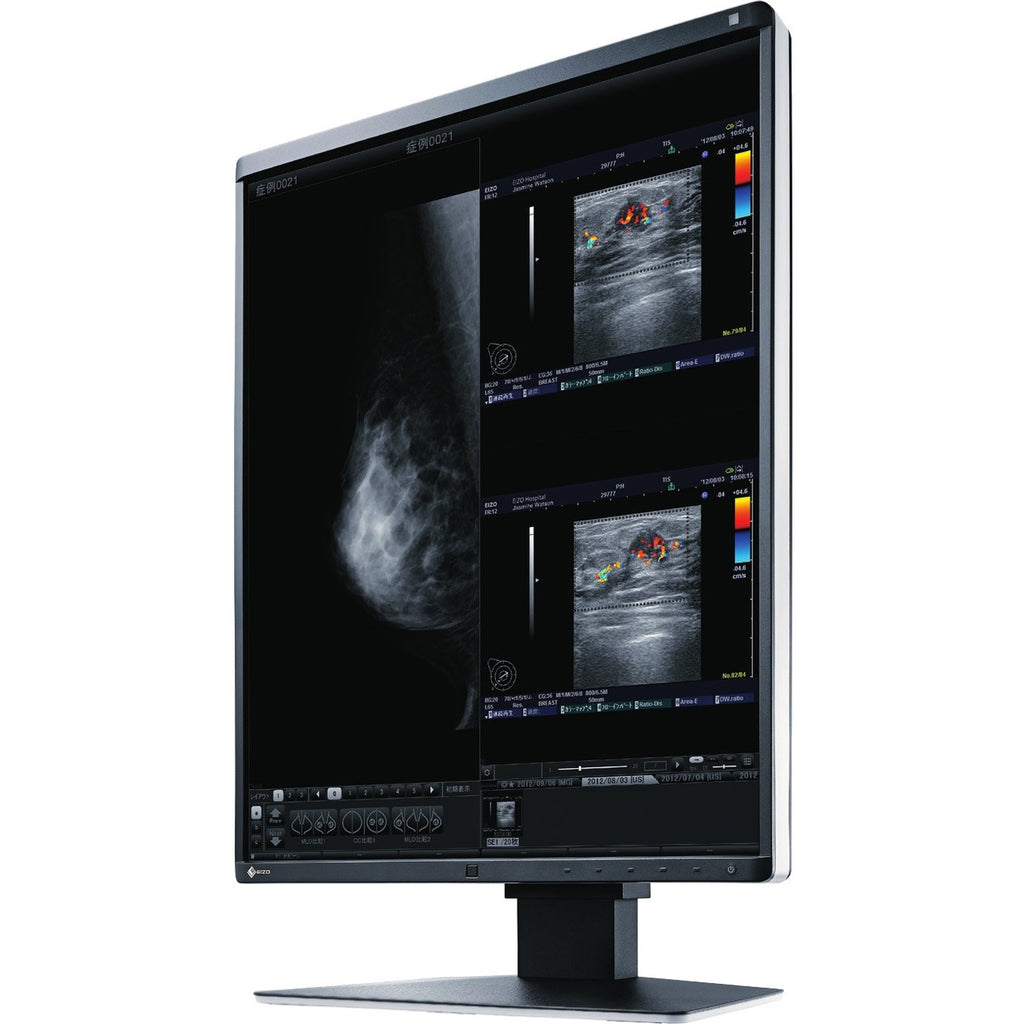

The EIZO RadiForce RX560 is a premium 21.3" 5MP medical-grade LCD monitor engineered for diagnostic imaging, mammography, and advanced clinical environments. Featuring an ultra-slim 7.5 mm bezel — the world’s narrowest in its class — it offers a distraction-free, near-seamless dual-monitor setup for precise image interpretation. Its innovative low-temperature polysilicon (LTPS) panel delivers up to 1100 cd/m² brightness and a 1500:1 contrast ratio, providing exceptional clarity and deep blacks ideal for mammography, breast tomosynthesis, ultrasound, and pathology imaging.

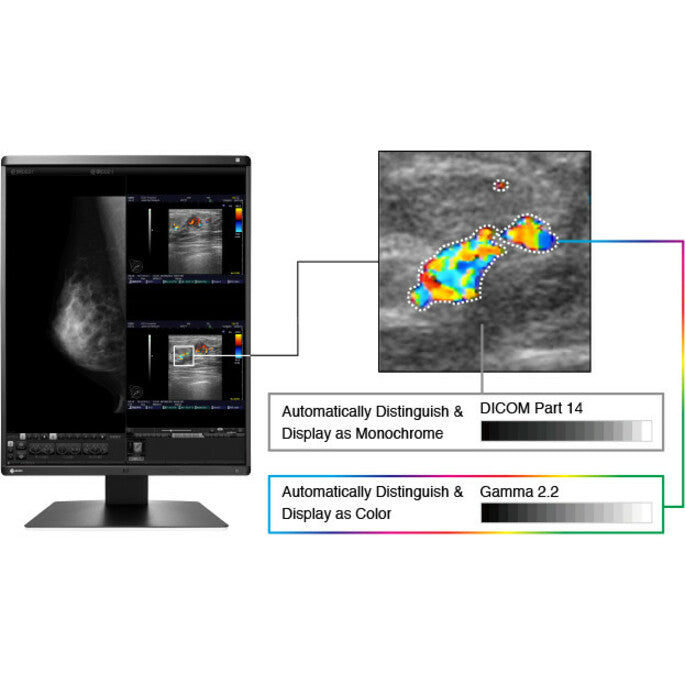

Equipped with EIZO’s Work-and-Flow™ technology, the RX560 streamlines radiology workflows with intuitive tools like Point-and-Focus, allowing users to instantly highlight areas of interest and adjust luminance and grayscale for enhanced analysis. The monitor’s FDA 510(k) clearance ensures it meets stringent standards for breast screening applications, while ergonomic adjustments and a space-saving design support optimal comfort and productivity in clinical workspaces.
With versatile DVI and DisplayPort connectivity, USB hub integration, and compliance with RoHS and WEEE directives, the RadiForce RX560 combines performance, precision, and sustainability — making it the trusted choice for modern medical imaging.
| Specification | Details |
|---|---|
| Brand | EIZO |
| Model | RadiForce RX560 |
| Part Number | RX560-BK-SG |
| Display Size | 21.3" viewable |
| Resolution | 2048 × 2560 (QXGA) |
| Aspect Ratio | 4:3 |
| Panel Type | LTPS LCD with LED backlight |
| Brightness | 1100 cd/m² |
| Contrast Ratio | 1500:1 |
| Color Support | 1.07 billion colors |
| Response Time | 12 ms |
| Pixel Pitch | 0.165 mm x 0.165 mm |
| Viewing Angles | 178° horizontal / 178° vertical |
| Video Inputs | DVI-D (dual link), DisplayPort |
| USB Ports | Yes, integrated USB hub |
| Built-in Features | Point-and-Focus, Auto Luminance Control, Work-and-Flow, USB Hub |

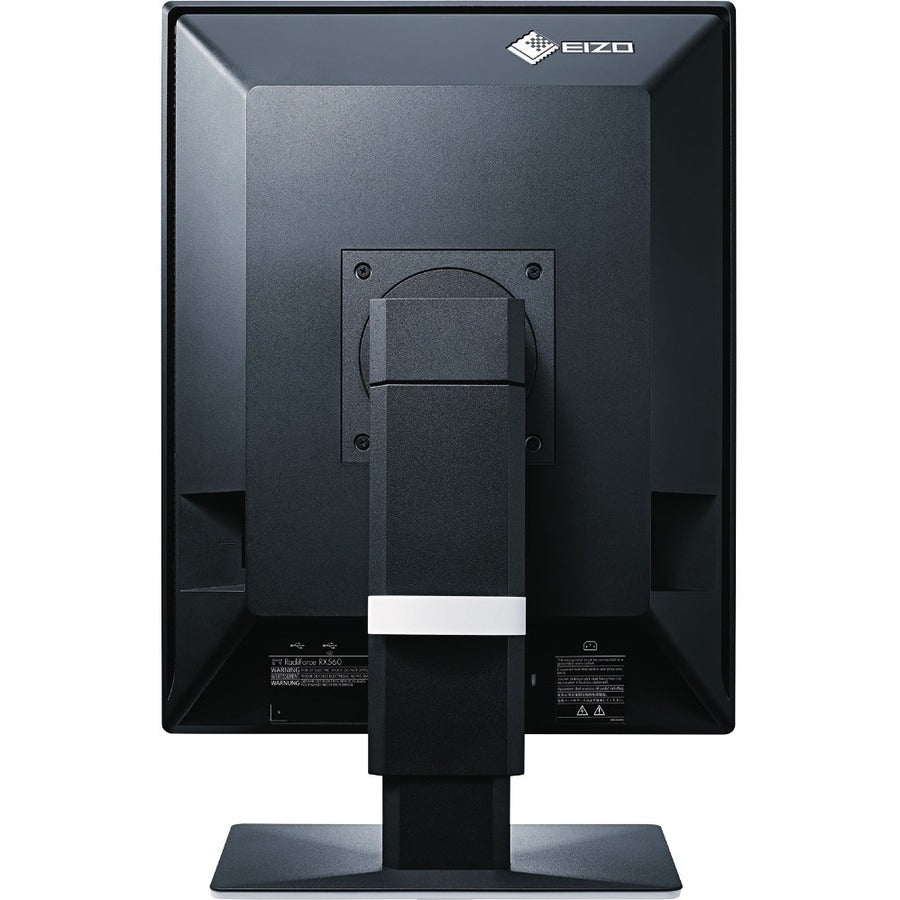

| Mounting | VESA 100 × 100 mm |
| Power Consumption | 87 W (operating), 1 W (standby) |
| Dimensions (W × H × D) | 13.3" × 16.6" × 3.1" (monitor only) |
| Weight | 11.68 lb (monitor), 17.86 lb (with stand) |
| Certifications | FDA 510(k) clearance for mammography and breast tomosynthesis |
| Environmental Compliance | RoHS, WEEE, China RoHS |
| Warranty | 5 years limited warranty |
