Description

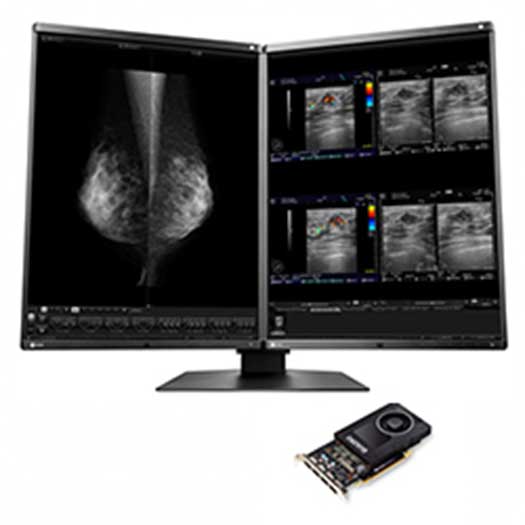

The EIZO RadiForce RX560-DH-NP200 Dual Head Color Diagnostic LCD Monitor is a premium, high-performance solution designed for the demands of modern breast imaging, radiology, and multi-modality diagnostic workflows. Featuring two 21.3-inch RX560 displays seamlessly integrated on a single ergonomic stand and bundled with the NVIDIA Quadro P2000 graphics card, this advanced system delivers exceptional clarity, color accuracy, and workflow efficiency.
With a resolution of 5 megapixels per screen and cutting-edge low temperature polysilicon (LTPS) LCD technology, the RX560-DH-NP200 achieves an impressive brightness of up to 1100 cd/m² — ideal for viewing both monochrome mammography images and full-color ultrasound, MRI, CT, and pathology scans. Its Hybrid Gamma PXL function automatically optimizes grayscale pixel-by-pixel for precise DICOM Part 14 compliance, while Work-and-Flow™ features like Point-and-Focus streamline image interpretation.
Engineered for maximum comfort and usability, the ultra-narrow 7.5 mm bezel minimizes eye movement between screens, and the custom FlexStand allows effortless tilt, swivel, and height adjustments. Advanced features such as Sharpness Recovery, Digital Uniformity Equalizer, brightness stabilization, and built-in Integrated Front Sensor (IFS) calibration ensure consistently accurate imaging. FDA 510(k) clearance for breast tomosynthesis and mammography further guarantees reliability in clinical environments.
Whether used for breast imaging, multi-modality diagnostics, or complex radiological review, the EIZO RadiForce RX560-DH-NP200 delivers unmatched precision, efficiency, and visual performance.
| Feature | Specification |
|---|---|
| Model | EIZO RadiForce RX560-DH-NP200 |
| Display Configuration | Dual 21.3" RX560 color diagnostic LCD monitors on single stand |
| Included GPU | NVIDIA Quadro P2000 |
| Panel Type | IPS Color LCD with LED backlight |
| Resolution | 2048 × 2560 (per display), 5MP |
| Aspect Ratio | 4:5 |
| Viewable Area (H × V) | 337.9 × 422.4 mm |
| Pixel Pitch | 0.165 × 0.165 mm |
| Brightness (Typical) | 1100 cd/m² |
| Recommended Calibration Brightness | 500 cd/m² |
| Contrast Ratio | 1500:1 |
| Response Time | 12 ms (black-white-black) |
| Color Support | 10-bit (1.07 billion colors) from a 543 billion-color palette |
| Viewing Angles | 178° / 178° (H / V) |
| Input Terminals | DisplayPort, Dual-Link DVI-D |
| Output Terminals | DisplayPort (daisy chain) |
| Digital Scanning Frequency | 31 – 135 kHz (H) / 23 – 61 Hz (V) |
| USB Ports | Upstream: USB 2.0 Type-B; Downstream: USB 2.0 Type-A × 2 |
| Power Requirements | AC 100–240 V, 50/60 Hz |
| Power Consumption | Typical: 43 W / Max: 87 W / Power Save: ≤1 W |
| Integrated Sensors | Integrated Front Sensor (IFS), Backlight Sensor, Presence Sensor, Ambient Light Sensor |
| Special Features | Hybrid Gamma PXL, Work-and-Flow™, Point-and-Focus, Digital Uniformity Equalizer, Sharpness Recovery, CAL Switch Modes, RadiCS LE software support |
| Certifications | FDA 510(k) (Mammography, Tomosynthesis), CE (Medical), EN60601-1, FCC-B, RoHS, WEEE |
| Mounting | VESA 100 × 100 mm |
| Stand Adjustments | Tilt, Swivel, Height adjustable |
| Net Weight (Dual Configuration) | 17.3 kg |
| Warranty | 5 years limited |
