Description

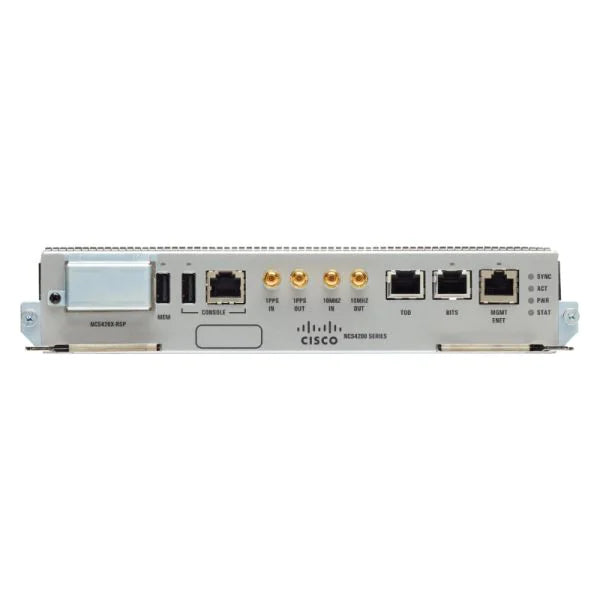

The Cisco NCS420X-RSP is a high-performance Route Switch Processor designed for the Cisco NCS 4206 platform, delivering centralized control, switching, and routing for converged service provider networks. Built to support Carrier Ethernet, IP/MPLS, and advanced timing services, this RSP enables scalable packet processing and intelligent traffic management in a compact, field-replaceable form factor.
Powered by carrier-class Cisco IOS XE Software, the NCS420X-RSP separates control plane and data plane operations to ensure high availability, resiliency, and operational flexibility. It supports a wide range of Ethernet, TDM, and optical interface modules, making it ideal for access, aggregation, and mobile backhaul deployments. With support for hardware redundancy, hot-standby operation, and precise network timing, the NCS420X-RSP provides a robust foundation for modern, multiservice networks.
| Specification | Details |
|---|---|
| Product Type | Route Switch Processor (RSP) |
| Platform Compatibility | Cisco NCS 4206 Series Chassis |
| Switching Capacity | Up to 400 Gbps |
| CPU Memory (DRAM) | 8 GB |
| Flash Memory | 8 GB |
| Service Scale | Large |
| Maximum Interface Throughput | 480 Gbps |
| IP Performance | Up to 600 Mpps (IPv4 / IPv6) |
| Supported Services | Carrier Ethernet, IPv4/IPv6, MPLS, VPLS, QoS, OAM |
| Timing & Synchronization | SyncE, IEEE 1588v2, BITS, GNSS support |
| Management Interfaces | RJ-45 Ethernet, Serial Console, USB Console |
| High Availability | Dual RSP support with active/standby failover |
| Form Factor | Small form-factor RSP for NCS 4206 |
| Replaceability | Field-Replaceable Unit (FRU), OIR supported |
| Operating Environment | Designed for carrier-class access deployments |
