Description

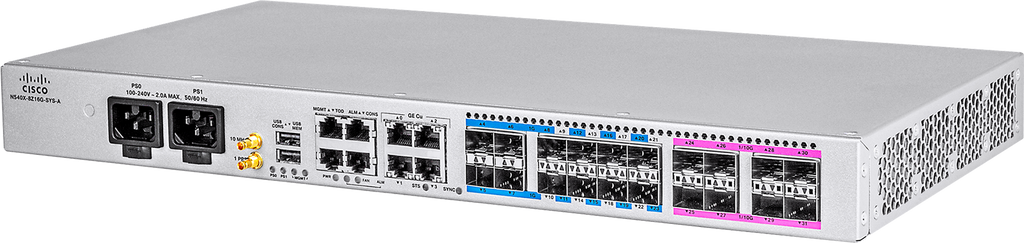

The Cisco NCS 540 Small Density Router (N540-6Z18G-SYS-A=) is a compact, carrier-class routing platform designed for high-performance access, aggregation, and mobile backhaul deployments. Built on Cisco IOS XR Software, it delivers advanced routing, timing, and security capabilities in a 1RU form factor optimized for space-constrained environments.
This model features 6x 1/10 Gigabit SFP+ ports and 18x 1 Gigabit SFP interfaces, providing flexible connectivity for 4G/5G cell sites, small-cell backhaul, fixed wireless access, and enterprise edge networks. With support for Segment Routing, EVPN, MPLS, and precise Class C timing, the NCS 540 enables scalable, low-latency transport for next-generation networks.
Designed for reliability and efficiency, the system includes fixed AC power, redundant fans, low power consumption, and a temperature-hardened architecture suitable for demanding operational conditions. It is an ideal choice for service providers and enterprises seeking a cost-effective, future-ready access router.
| Specification | Details |
|---|---|
| Model | Cisco NCS 540 Small Density Router |
| SKU | N540-6Z18G-SYS-A= |
| Form Factor | 1RU Rackmount |
| CPU | Quad-core 2.0 GHz |
| System Memory | 8 GB DRAM |
| Storage | 16 GB eMMC |
| Network Interfaces | 6x 1/10G SFP+ ports, 18x 1G SFP ports |
| Switching Performance | Up to 125 Mpps |
| Operating System | Cisco IOS XR |
| Power Supply | Fixed AC power |
| Cooling | Fixed redundant fans |
| Airflow | Front-to-side |
| Operating Temperature | Commercial temperature range |
| Timing Support | SyncE, IEEE 1588v2 PTP (Class C) |
| Routing Features | BGP, OSPF, IS-IS, MPLS, Segment Routing |
| Management | CLI, NETCONF, gRPC, YANG, Streaming Telemetry |
| Deployment Use Cases | 5G backhaul, access aggregation, FWA, enterprise edge |
