Description

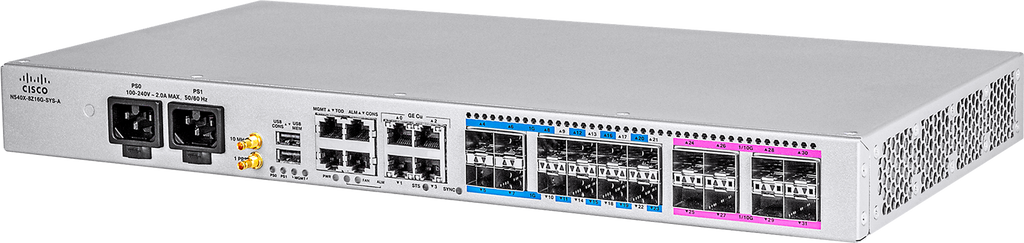

The Cisco NCS 540 Small Density Router (N540-6Z18G-SYS-D) is a compact, carrier-class routing platform designed for sub-100G aggregation, mobile backhaul, and edge network deployments. Built on Cisco IOS XR, it delivers high performance, advanced timing, and robust security in a 1RU form factor.
This DC-powered model features 6x 1/10G SFP+ ports and 18x 1G SFP ports, enabling flexible connectivity for 4G/5G cell sites, fixed wireless access, enterprise edge, and service provider networks. With support for Segment Routing, EVPN, MPLS, and advanced QoS, the NCS 540 provides scalable, future-ready transport while maintaining low power consumption and high reliability.
| Specification | Details |
|---|---|
| Product Series | Cisco Network Convergence System 540 |
| Model | N540-6Z18G-SYS-D |
| Form Factor | 1RU Rackmount |
| CPU | Quad-core 2.0 GHz |
| System Memory | 8 GB DRAM |
| Storage | 16 GB eMMC |
| Network Ports | 6 × 1/10G SFP+ |
| 18 × 1G SFP | |
| Switching Capacity | Sub-100G |
| Forwarding Performance | Up to 125 Mpps |
| Power Supply | Fixed DC Power |
| Power Input | -20V to -72V DC |
| Cooling | Fixed redundant fans |
| Airflow | Side-to-side |
| Operating System | Cisco IOS XR |
| Timing Support | SyncE, IEEE 1588v2 PTP (Class C) |
| Routing & Transport | MPLS, SR-MPLS, SRv6, EVPN |
| Management | NETCONF, gRPC, YANG, Telemetry |
| Security | Secure boot, image signing, hardware root of trust |
| Deployment Use Cases | 5G backhaul, FWA, enterprise edge, aggregation |
